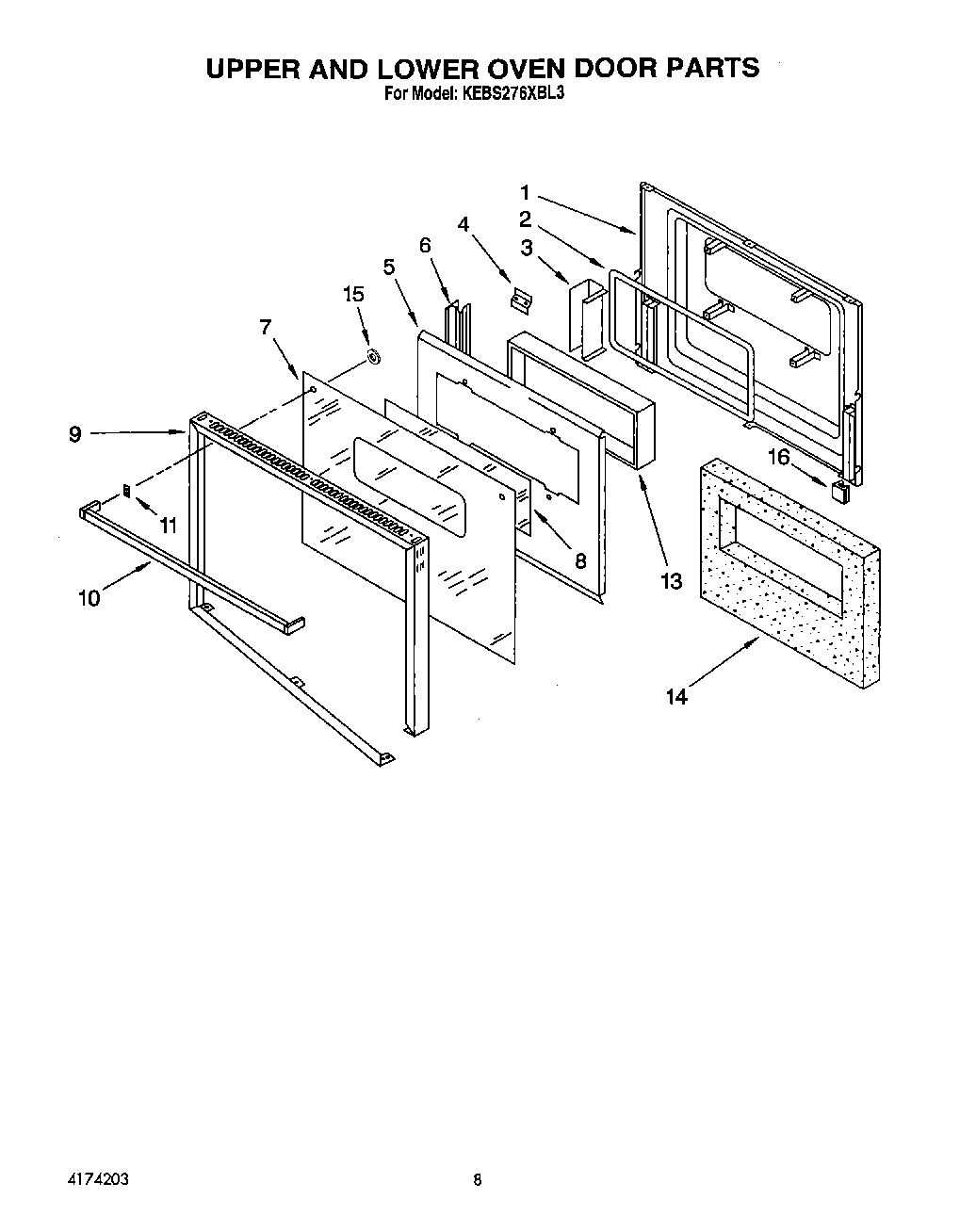

KEBS276XBL3 05 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
1Screw, Black (2)
1Vent, Lower Trim (Screw (2))
2Seal, Window
3Spacer, Window
4Latch, Strike
5Insulation, Retainer
6Clip, Channel Glass (Sides)
6WP90767 Whirlpool Screw
6Clip, Channel (Bottom (2))
7Glass, Door (Black)
8Glass, Reflective
9Frame, Door
10Screw
10Handle, Door (Black)
11Spacer (2)
13Window Package
14Insulation, Door
15Bushing, Door Handle
16Bumper, Door Glass
