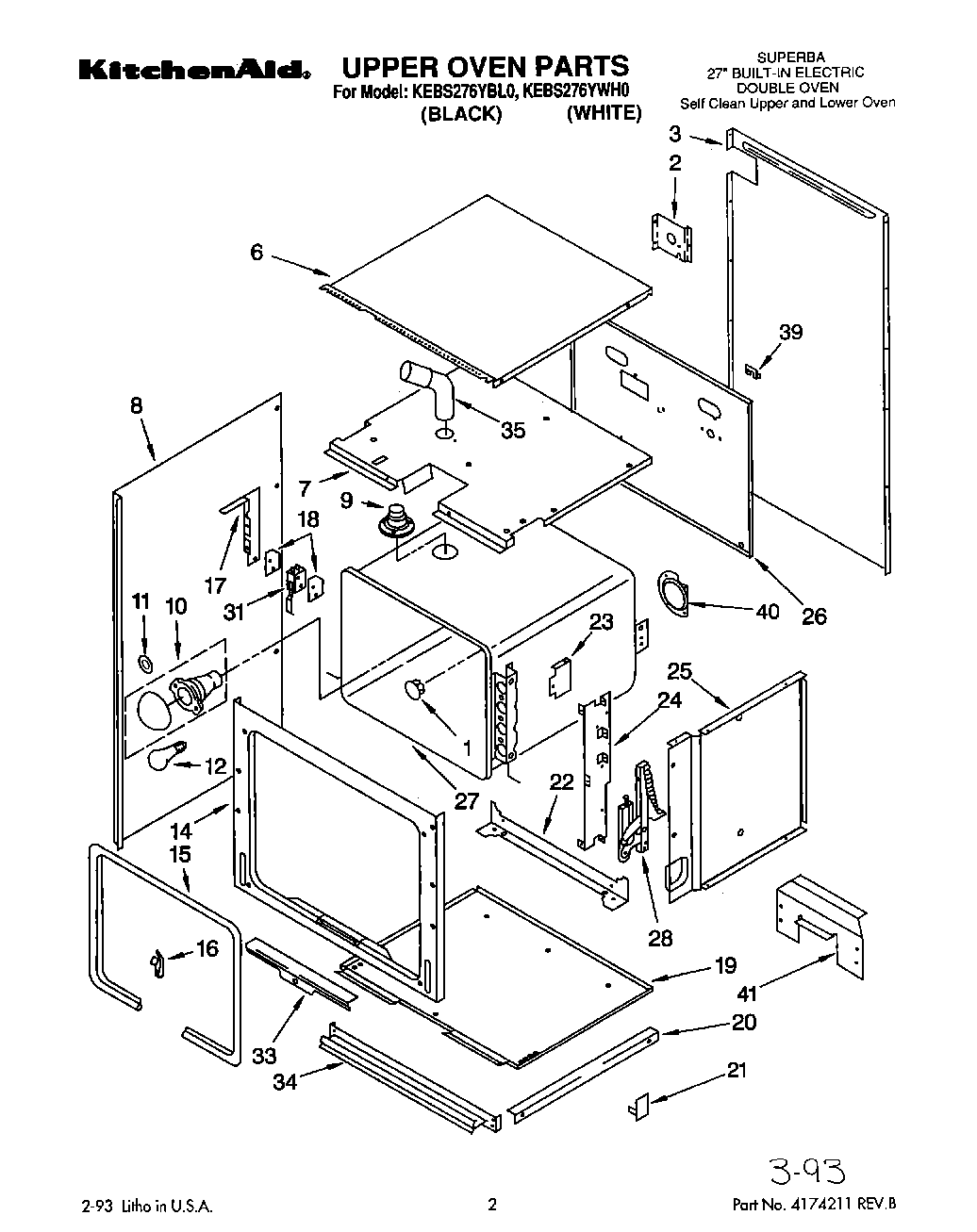

KEBS276YBL0 01 – UPPER OVEN, OPTIONAL

KEBS276YBL0 01 – UPPER OVEN, OPTIONAL

Written by

in

KEBS276YBL0 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Insert, Middle Vent Trim
22	Support, Oven
23	Shield, Radiation
24	Screw (6)
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
27	Liner, Oven
28	Hinge, Door
28	Screw (4)
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	SCREW
33	Retainer, Seal
33	Screw (4)
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (White or Almond Model)
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
40	Probe Cover
40	Shoulder Screw
41	18 Ga. 80~c Rating (Red)
41	Wire (12 Ga. 150 c Black)
41	Wire (14 Ga. 200 c Brown)
41	Wire (14 Ga. 150 c Yellow)
41	Wire (14 Ga. 150 c Orange)
41	1
41	WPL 350806
41	350930 Whirlpool White Spray Paint
41	799344 Whirlpool Refrigerator Paint
41	WP72107 Whirlpool Touchup
41	Leveler (Thinner)
41	Almond (Uncut)
41	Golden Harvest
41	WPL 832985
41	WPL 591014
41	350956 Whirlpool Spray Assembly
41	72017 Whirlpool Appliance Touch-Up Paint White
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Brown)
41	Wire (14 Ga. 150 c Blue)
41	Platinum (Uncut)
41	WPL 72112
41	350942 Whirlpool Spray Paint
41	WPL 799832
41	Wire, 25` Roll (Black 14 Ga.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25“ Roll (White 14 GA.)
41	285006 Whirlpool Spray
41	Screw
41	Enamal, Toast (1 Qt. Uncut)
41	Paint, Spray (13 Oz.) (Platinum)
41	Toast
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	WP261869 Whirlpool Microwave Paint
41	242831 Whirlpool Oven Wire
41	WP482338 Whirlpool Refrigerator Adhesive
41	Insulation, Back
41	Insulation, Oven
41	WPL 3183752
41	72113 Whirlpool Touch-Up Paint
41	Golden Harvest (Uncut)
41	72032 Whirlpool Touch Up Paint Black
