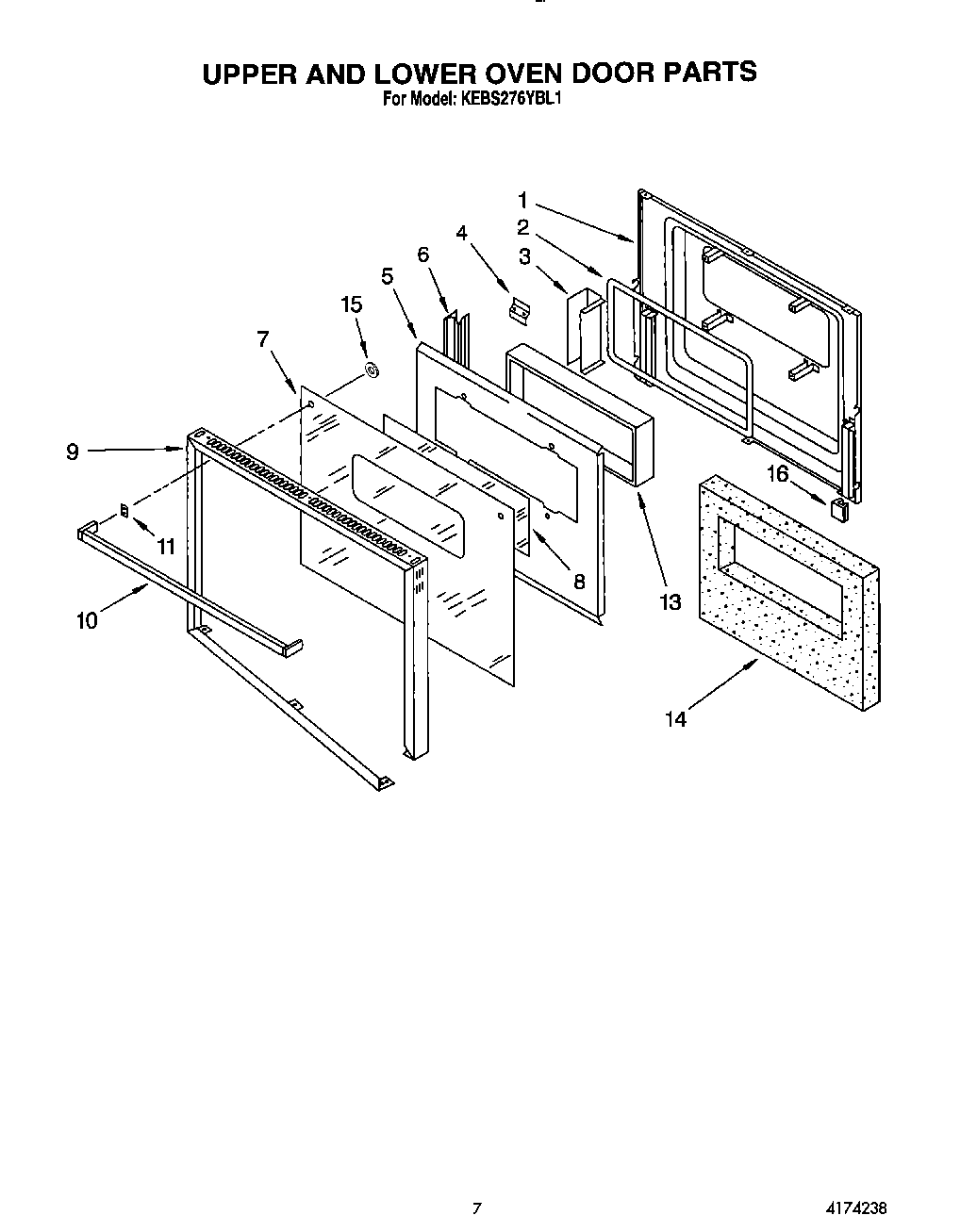

KEBS276YBL1 05 – UPPER AND LOWER OVEN DOOR

KEBS276YBL1 05 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS276YBL1 05 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Screw, Black (2)
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Spacer, Window
4	Latch, Strike
5	Insulation, Retainer
6	Clip, Channel Glass (Sides)
6	WP90767 Whirlpool Screw
6	Clip, Channel (Bottom (2))
7	Glass, Door (Black)
8	Glass, Reflective
9	Frame, Door
10	Screw
10	Handle, Door (Black Model)
11	Spacer, Door Handle
13	Window Package
14	Insulation, Door
15	Bushing, Door Handle
16	Bumper, Door Glass
