KEBS276YBL2 03 – CONTROL PANEL, LIT/OPTIONAL

KEBS276YBL2 03 – CONTROL PANEL, LIT/OPTIONAL

Written by

in

KEBS276YBL2 03 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Installation Instructions
WPL LIT3185644
WPL LIT3182133

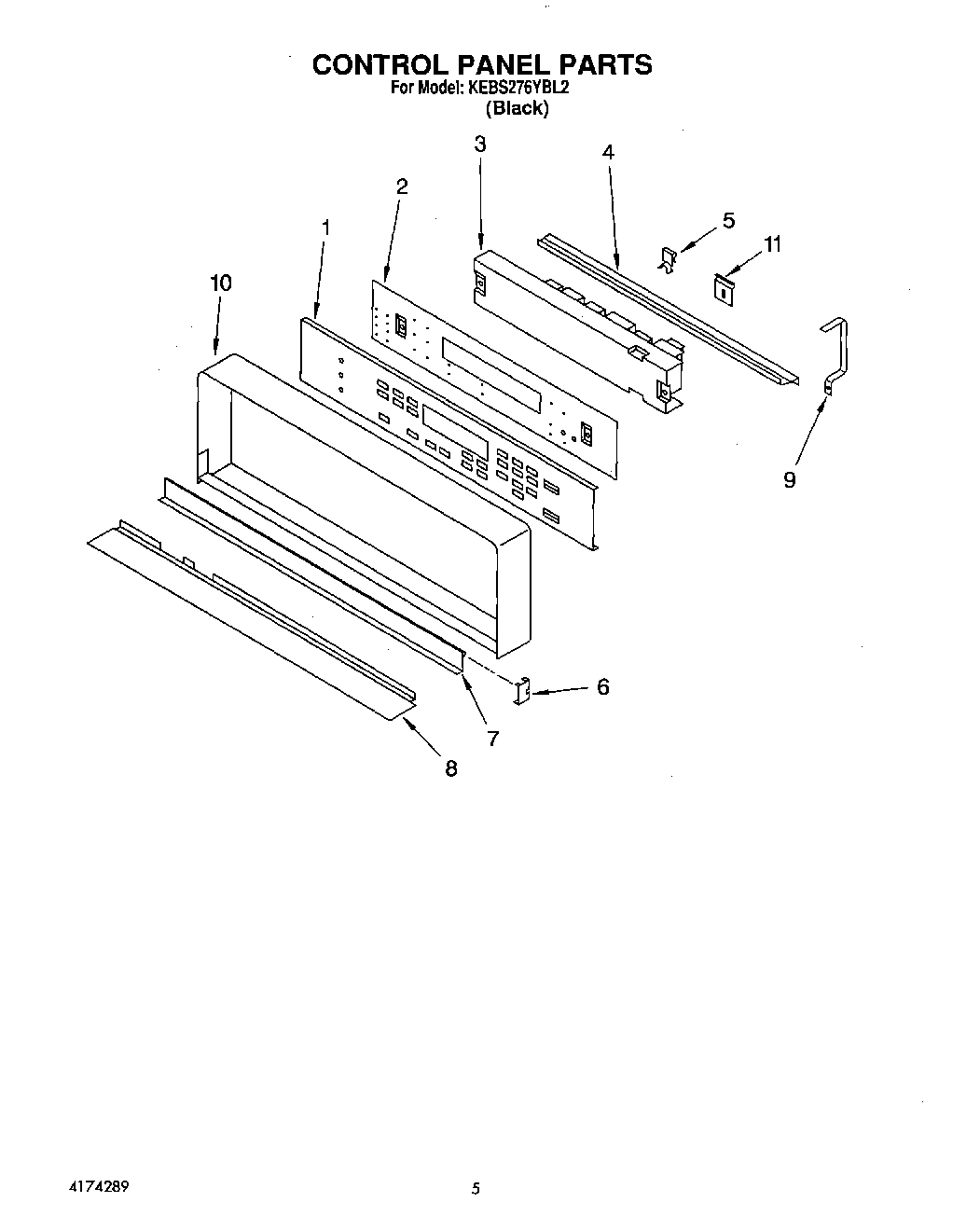

Repair Parts List
1Membrane, Switch (Black Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (Black)
8Trim, Panel
8Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
