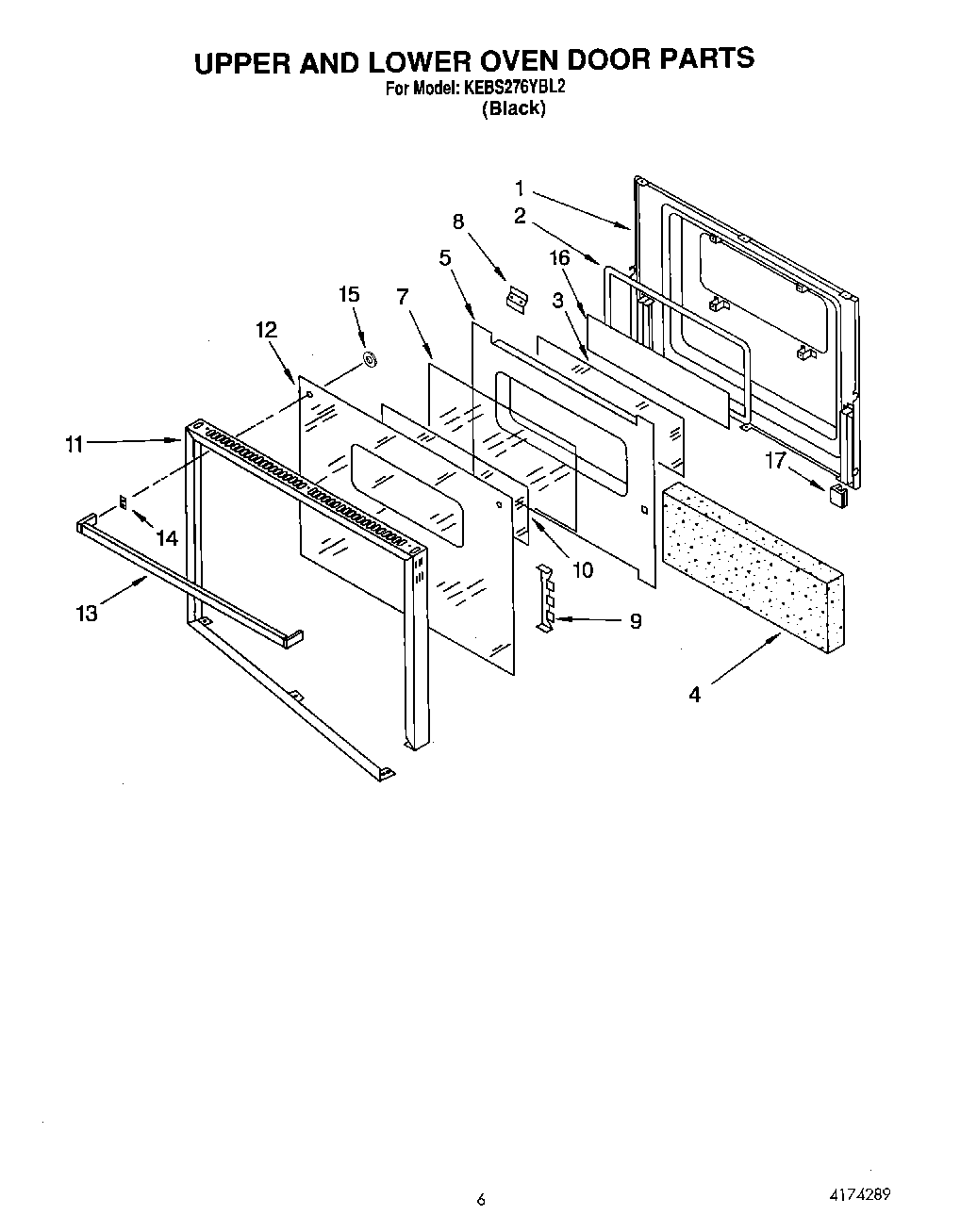

KEBS276YBL2 04 – UPPER AND LOWER OVEN DOOR

KEBS276YBL2 04 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS276YBL2 04 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Screw, Black (2)
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Screw
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (Black Model)
13	Handle, Door (Black Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
15	Screw
15	Screw
16	Foil-Adhesive Backed
17	Bumper, Door Glass
