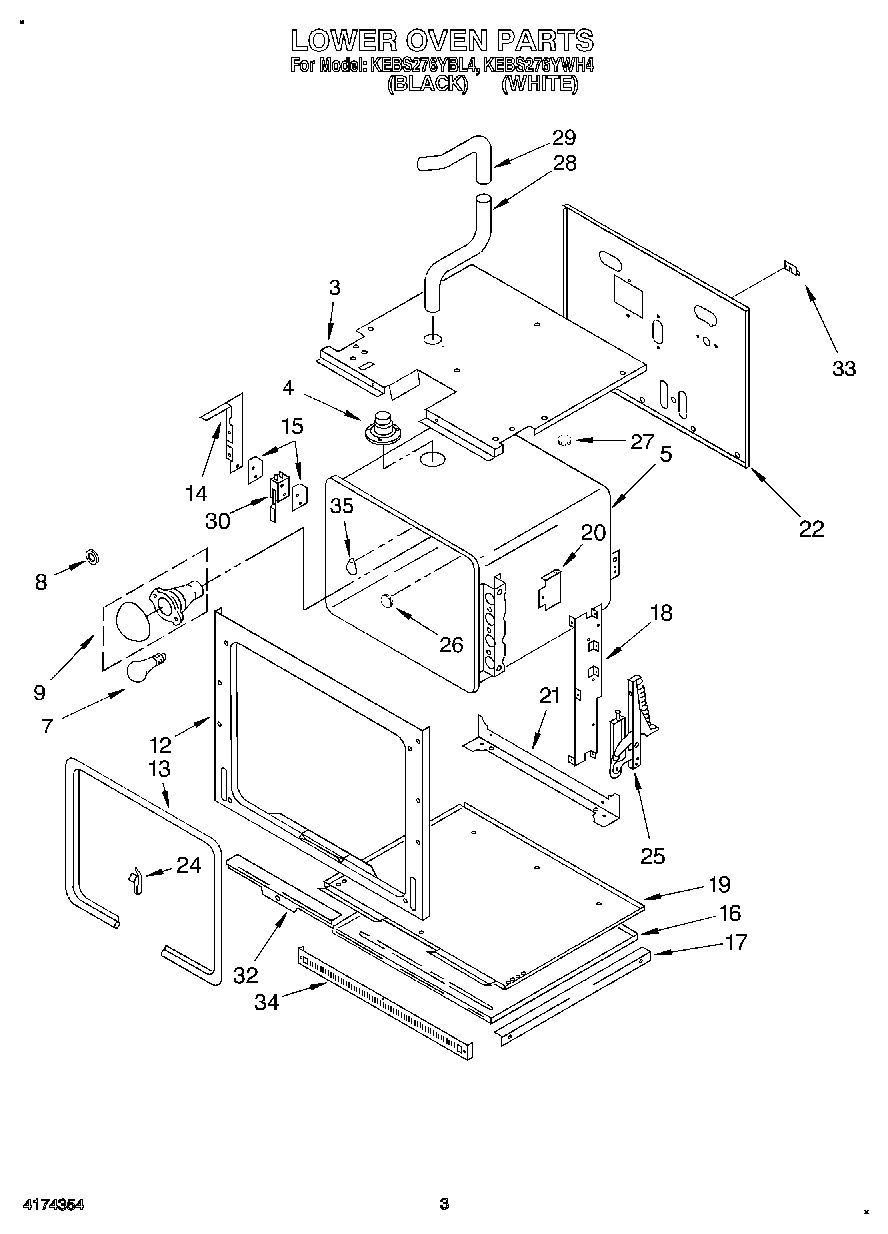

KEBS276YBL4 02 – LOWER OVENadmin2025-04-26T10:28:39+00:00KEBS276YBL4 02 – LOWER OVEN
Products
| Position | Product |
|---|
| 3 | Module, Top |
| 4 | Tube, Vent |
| 4 | Screw (2) |
| 5 | Liner, Oven |
| 7 | RANGE ONLY 40W 120V APPL BULB |
| 8 | WP3184533 Whirlpool Range Light Lens Gasket |
| 9 | W11594027 Whirlpool Range Oven Light Socket |
| 12 | Frame, Front |
| 13 | Seal, Door |
| 14 | Bracket, Switch |
| 14 | WP3177991 Whirlpool Screw |
| 15 | Insulator, Switch |
| 16 | Bottom, Oven |
| 17 | Rail, Support (2) |
| 18 | Bracket, Hinge |
| 19 | Bottom, Modual |
| 20 | Shield, Radiation |
| 20 | Screw (6) |
| 21 | Support, Oven |
| 22 | Back, Module |
| 24 | Clip, Oven Seal |
| 25 | Hinge, Door |
| 26 | Button, Plug |
| 27 | Button, Plug |
| 28 | Screw |
| 28 | Tube, Vent Male |
| 29 | Tube, Vent Female |
| 30 | Nut (2) |
| 30 | Switch, Door |
| 30 | Screw (2) |
| 32 | Retainer, Seal |
| 33 | Cover, Cap Tube |
| 34 | Vent, Lower Trim (White) |
| 34 | Vent, Lower Trim (Black) |
| 35 | Probe Cover |
| 35 | Insulation, Back |
| 35 | Insulation, Oven |
