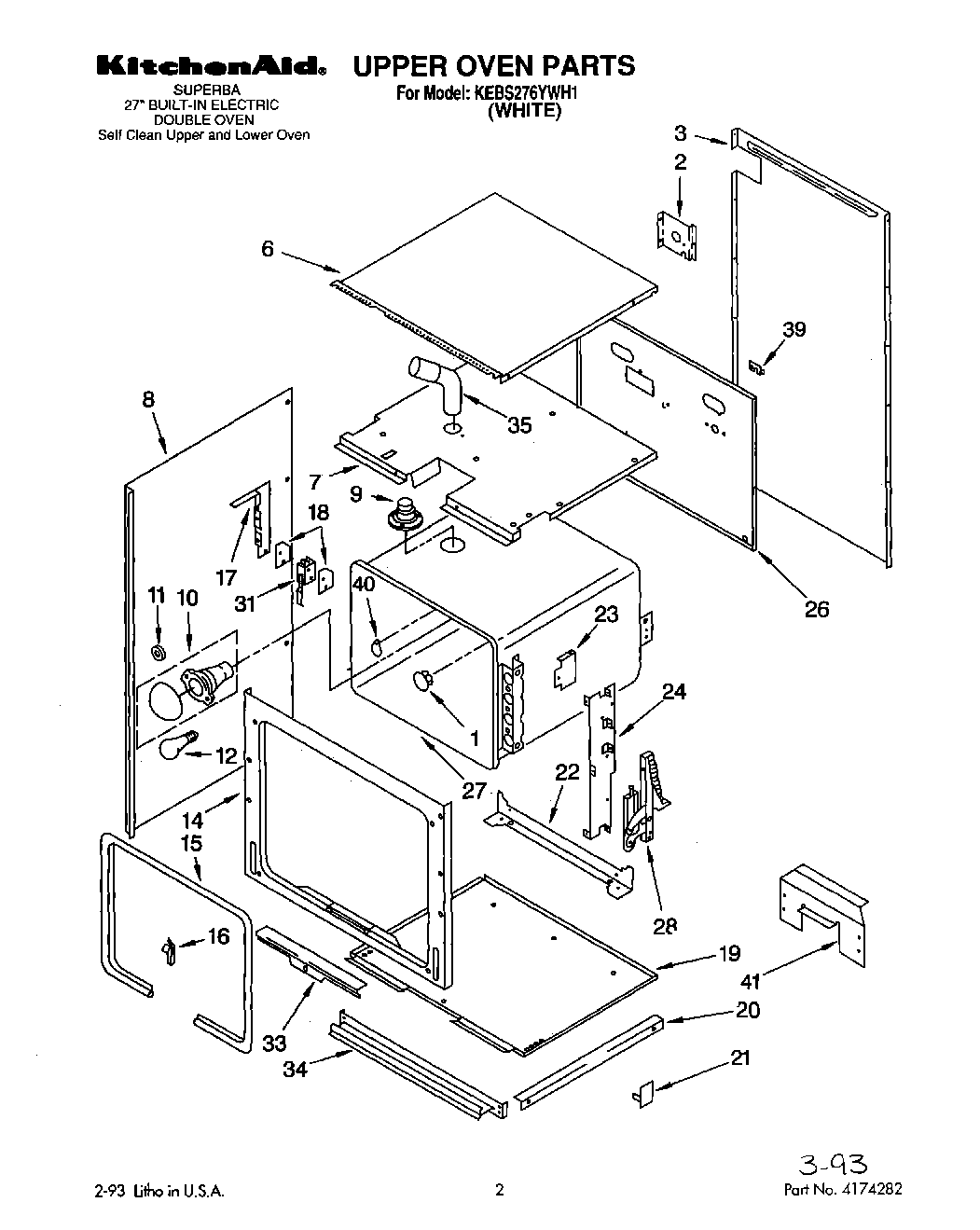

KEBS276YWH1 01 – UPPER OVEN, OPTIONAL

KEBS276YWH1 01 – UPPER OVEN, OPTIONAL

Written by

in

KEBS276YWH1 01 – UPPER OVEN, OPTIONAL

Products

Position	Product
1	Button, Plug
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
8	WP90767 Whirlpool Screw
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Insert, Middle Vent Trim
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
24	Screw (6)
26	Back, Module
27	Liner, Oven
28	Screw (4)
28	Hinge, Door
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Screw (4)
33	Retainer, Seal
34	Vent, Lower Trim (Screw (4))
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (2))
35	Tube, Vent
39	Screw
39	Cover, Cap Tube
40	WP3177991 Whirlpool Screw
40	Plate, Cover
41	WPL 832985
41	WPL 591014
41	WPL 350806
41	Wire (14 Ga. 150 c Blue)
41	1
41	Wire (14 Ga. 200 c Brown)
41	18 Ga. 80~c Rating (Red)
41	Wire (12 Ga. 150 c Black)
41	Wire (14 Ga. 150 c Yellow)
41	Wire (14 Ga. 150 c Green)
41	Wire (14 Ga. 150 c Brown)
41	WP261869 Whirlpool Microwave Paint
41	242831 Whirlpool Oven Wire
41	Wire (14 Ga. 150 c Orange)
41	Insulation, Back
41	Enamal, Toast (1 Qt. Uncut)
41	Paint, Spray (13 Oz.) (Platinum)
41	Toast
41	Golden Harvest (Uncut)
41	Golden Harvest
41	72113 Whirlpool Touch-Up Paint
41	Almond (Uncut)
41	Leveler (Thinner)
41	WP72107 Whirlpool Touchup
41	799344 Whirlpool Refrigerator Paint
41	72017 Whirlpool Appliance Touch-Up Paint White
41	350956 Whirlpool Spray Assembly
41	Platinum (Uncut)
41	WPL 72112
41	WPL 3183752
41	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
41	Insulation, Oven
41	Screw
41	WP482338 Whirlpool Refrigerator Adhesive
41	72032 Whirlpool Touch Up Paint Black
41	285006 Whirlpool Spray
41	Wire, 25“ Roll (White 14 GA.)
41	Wire, 25` Roll (Red 14 Ga.)
41	Wire, 25` Roll (Black 14 Ga.)
41	WPL 799832
41	350942 Whirlpool Spray Paint
41	350930 Whirlpool White Spray Paint
