KEBS276YWH1 03 – CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
Installation Instructions
Use & Care Guide
WPL LIT3182133

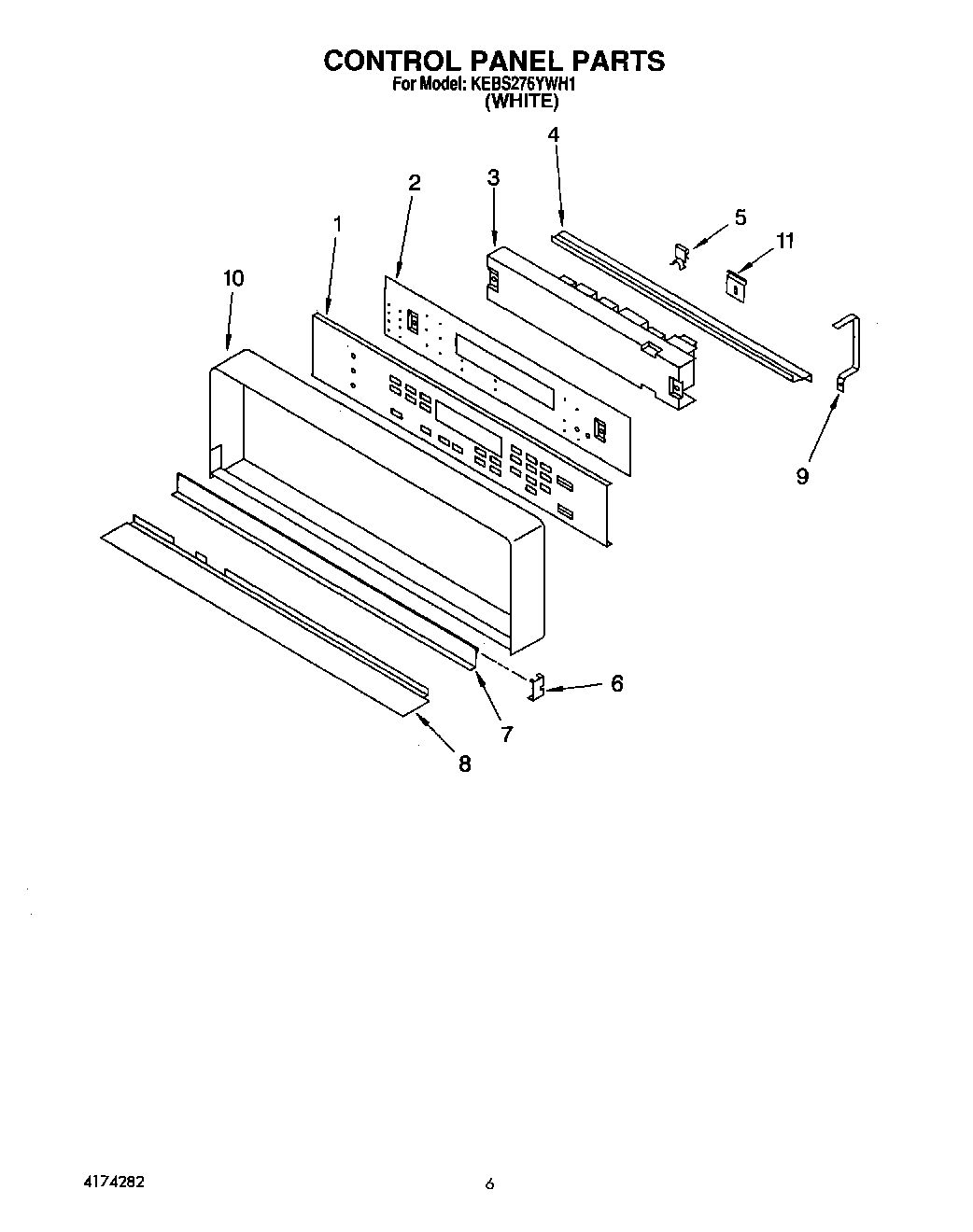

Repair Parts List
1Membrane, Switch (White Model)
2Bracket, Mounting Switch Membrane
3Microcomputer
3Screw (3)
4Retainer, Bracket
5Clip, Retainer (3)
6Trim, Door (2)
7Door, Latch Handle (Screw (2))
7Door, Latch Handle (White)
8Trim, Panel
8Screw
9Bracket (2)
9Screw (2)
10Frame, Control Panel
11Clip, Control Frame
