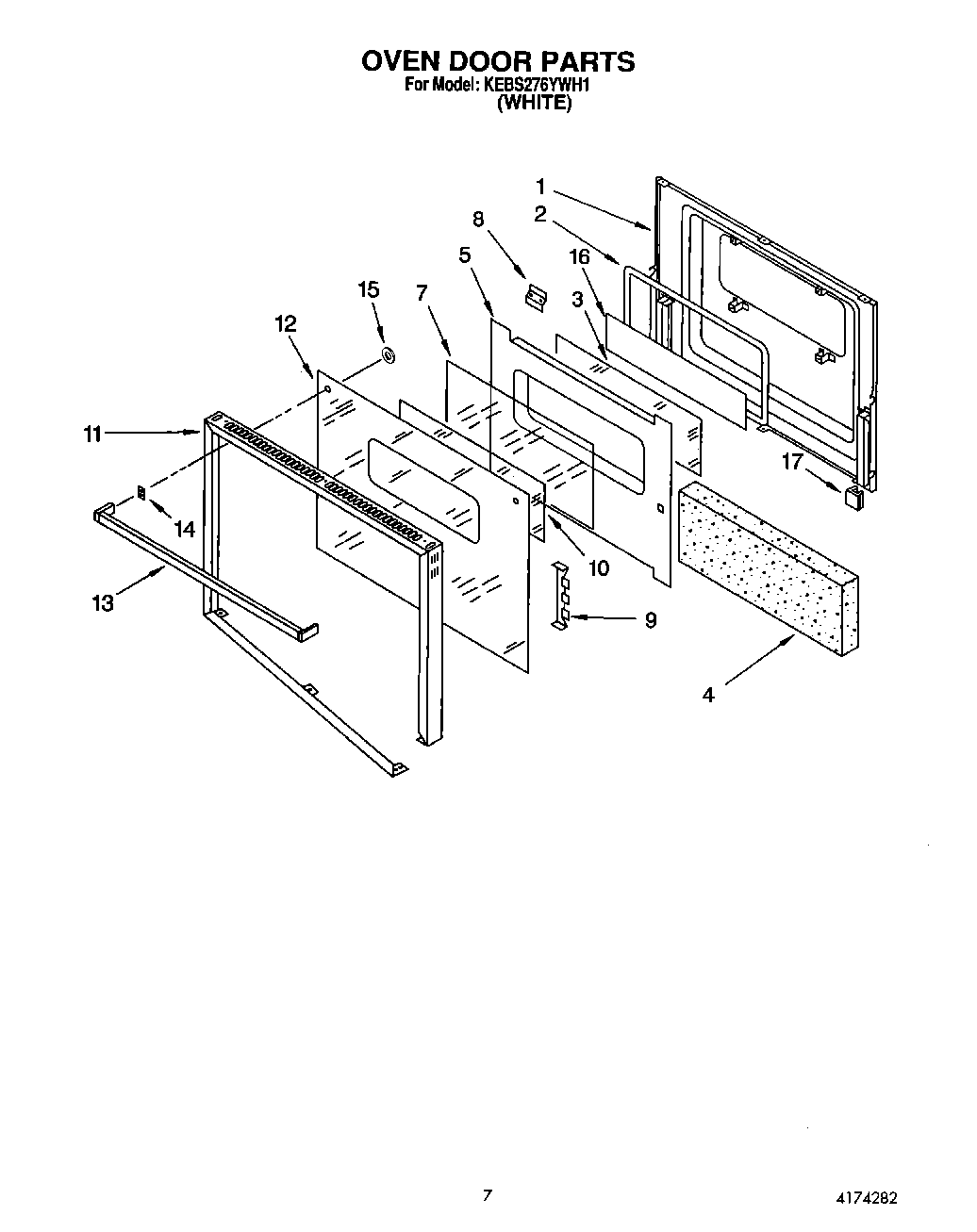

KEBS276YWH1 04 – OVEN DOOR

KEBS276YWH1 04 – OVEN DOOR

Written by

in

KEBS276YWH1 04 – OVEN DOOR

Products

Position	Product
1	Liner, Door
1	Vent, Lower Trim (Screw (2))
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
7	Glass, Reflective
8	Latch, Strike
9	Retainer, Glass
10	Glass, Clear
11	Frame, Door
12	Glass, Door (White Model)
13	Handle, Door (White Model)
14	Spacer, Door Handle
15	Bushing, Door Handle
15	Screw
15	Screw
16	Foil-Adhesive Backed
17	Bumper, Door Glass
