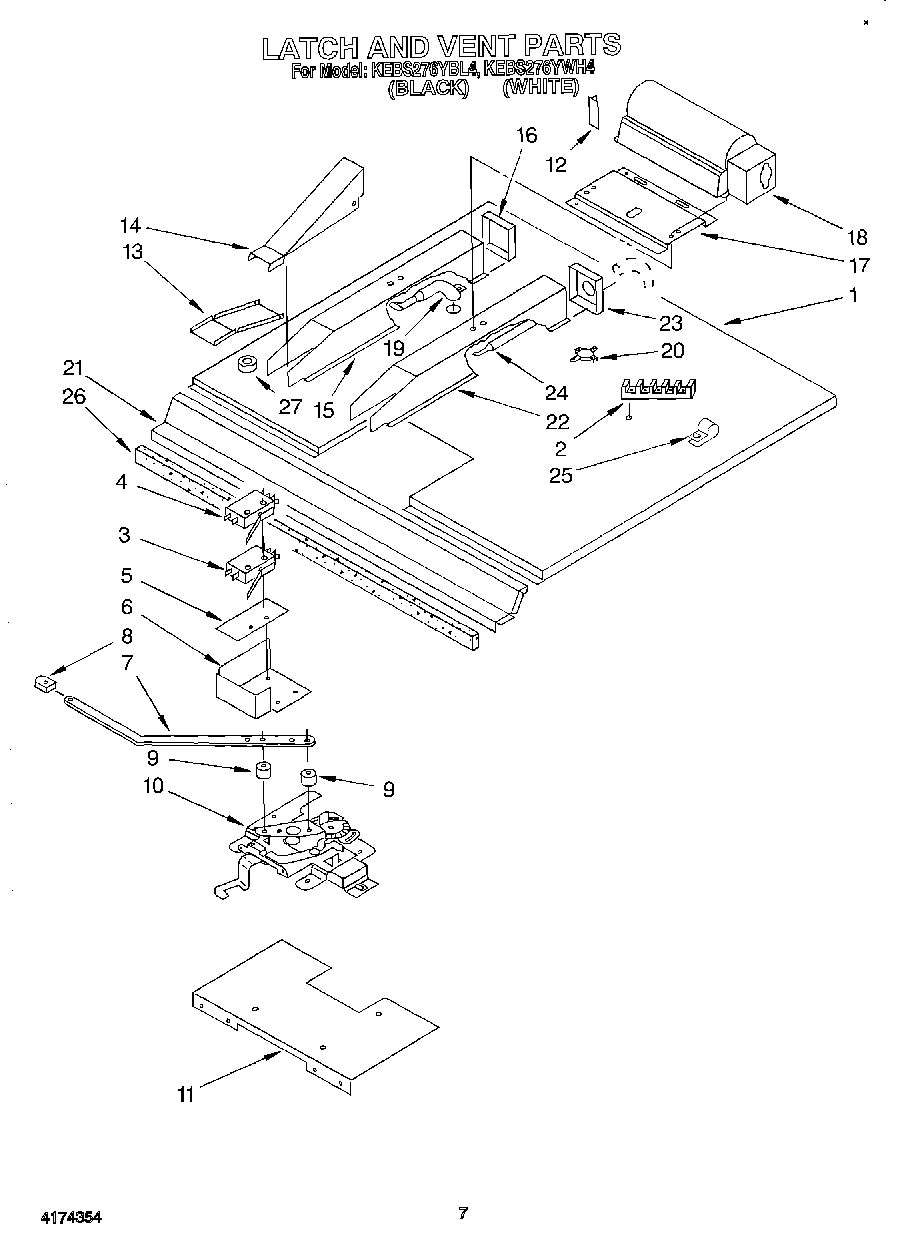

KEBS276YWH4 05 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
3Switch, latch
4Screw
4Switch, Latch
4Screw,
5Insulator, Switch
6Guard, Latch
7Screw
7Handle, Latch
7Handle, Latch
8Knob, Latch Handle
8Screw
9Spacer, Latch Handle
9Screw (2)
10Latch, Mechanism
11Plate, Mounting
12Baffle-Blower
12Screw
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Screw, 8-18 X 3/4 (4)
15Screw
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Tube, Vent
20SPST Thermostat
21Shield, Heat
21WP3177991 Whirlpool Screw
22Box, Vent
23End, Box Vent
24Tube, Vent Lower Oven
25Clamp, Tube
25Screw
26Seal, foam
27Bushing
