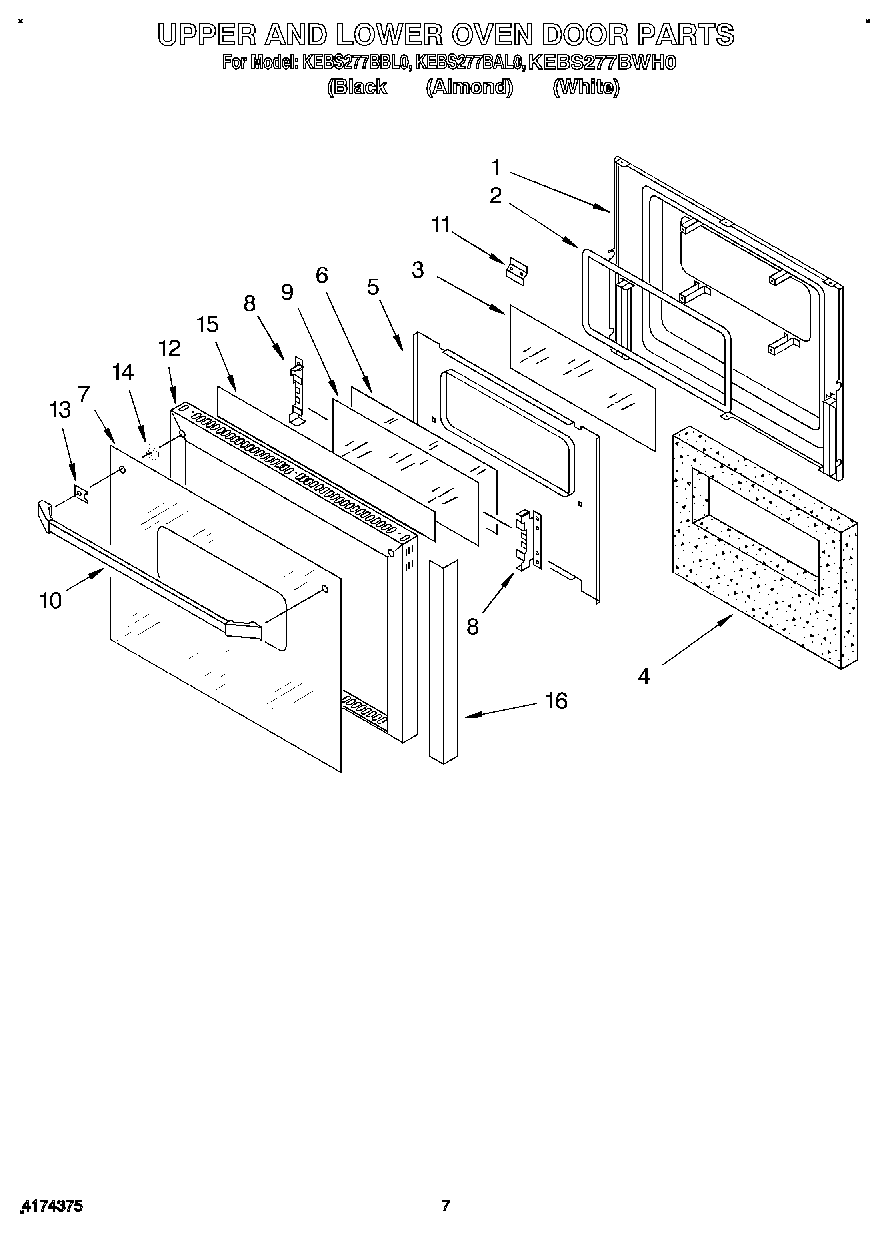

KEBS277BAL0 05 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Vent, Lower Trim (Screw (2))
5	Retainer, Insulation
6	Glass, Reflective
7	Glass, Door (Black Model)
7	Glass, Door (Almond Model)
7	Glass, Door (White Model)
8	Retainer, Glass
9	Glass, Clear
10	Handle, Door (Black Model)
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
11	Latch, Strike
12	Frame, Door (White Model)
12	Frame, Door (Black Model)
12	Frame, Door (Almond Model)
13	Spacer, Door Handle
14	Screw, 10-32 x 1/2
14	Bushing, Door Handle
14	Screw
15	Foil, Adhesive
16	Foil-Adhesive
