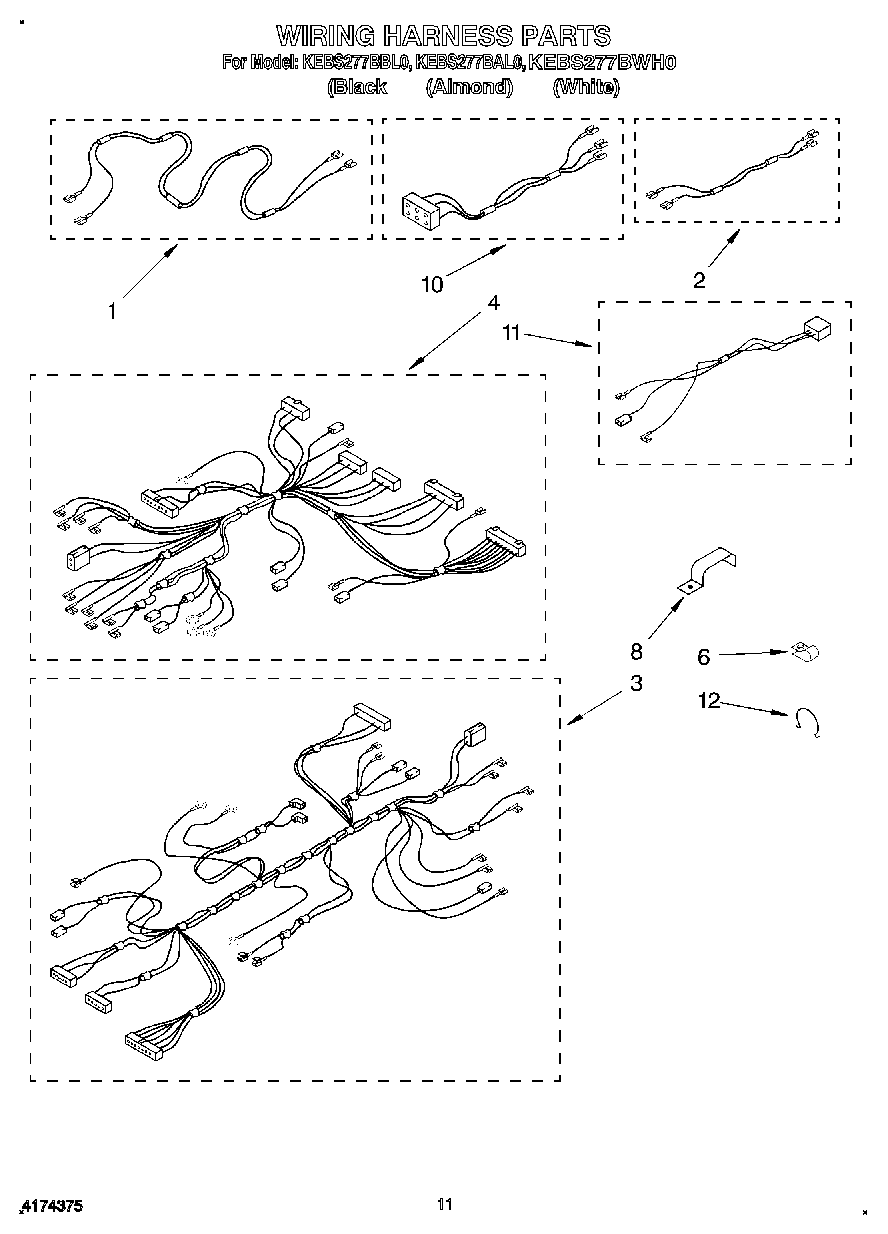

KEBS277BAL0 08 – WIRING HARNESS

Written by

Products

Position	Product
1	Wiring Harness (Door Switch) (Upper)
2	Wiring Harness (Door Switch) Lower)
3	Harness Wire (Lower Oven)
4	Harness Wire Main
6	Standoff, Wire
6	Screw
6	WP112432 Whirlpool Nut Assembly
8	7111P002-60 Whirlpool Clamp
10	Harness, Wire (Latch Assy.)
11	Harness, Wire Latch Assy. (Lower Oven)
12	16515 Whirlpool Clip
