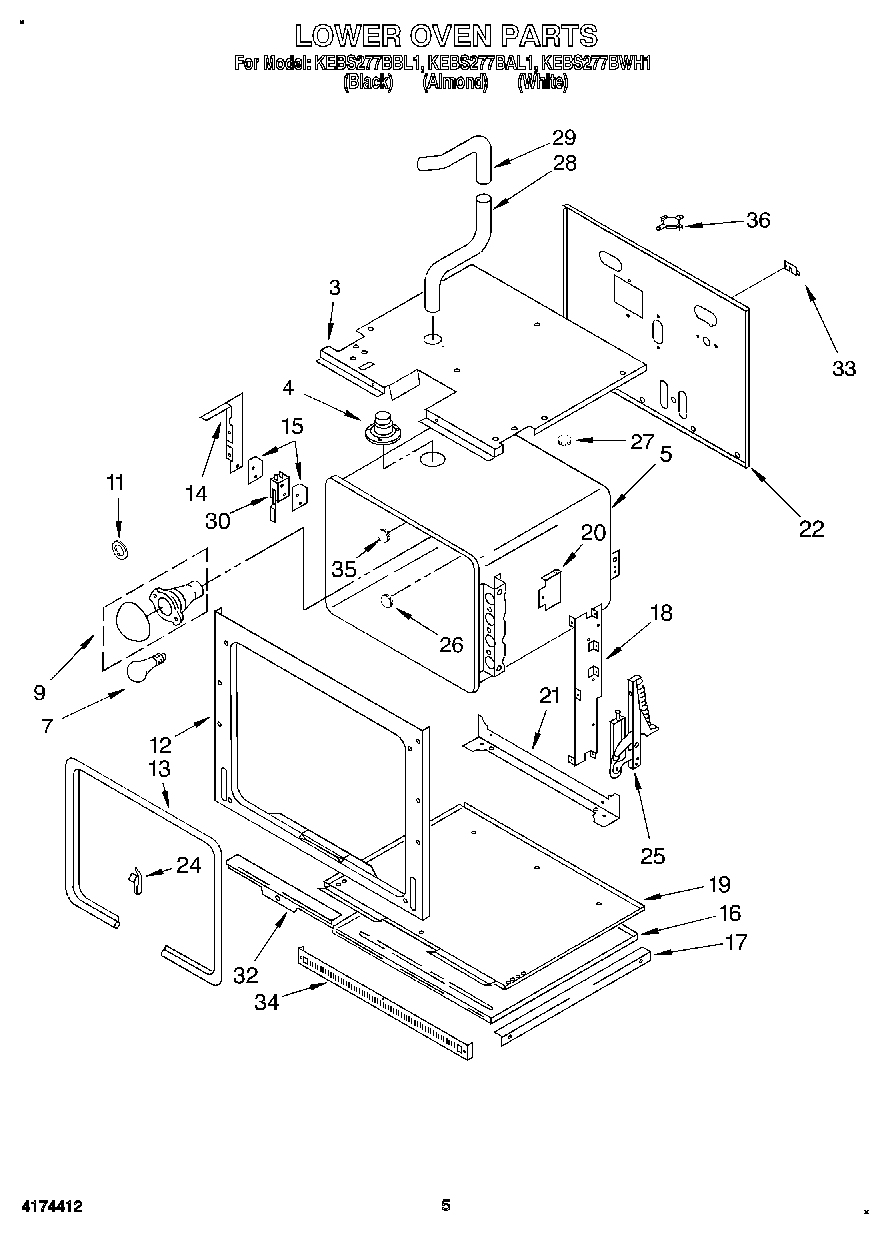

KEBS277BAL1 04 – LOWER OVEN

Products

Position	Product
3	Module, Top
4	Tube, Vent
4	Screw (2)
5	Liner, Oven
7	RANGE ONLY 40W 120V APPL BULB
9	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	Frame, Front
13	Seal, Door
14	WP3177991 Whirlpool Screw
14	Bracket, Switch
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
20	Screw (6)
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
26	Button, Plug
27	Button, Plug
28	Tube, Vent Male
28	Screw
29	Tube, Vent Female
30	Screw (2)
30	Nut (2)
30	Switch, Door
32	SCREW
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Trim, Lower Vent (White Model)
34	Vent, Lower Trim (Almond Model)
34	Vent, Lower Trim (Black)
35	Probe Cover
36	Insulation, Back
36	Insulation, Oven
36	Fuse, Safety
