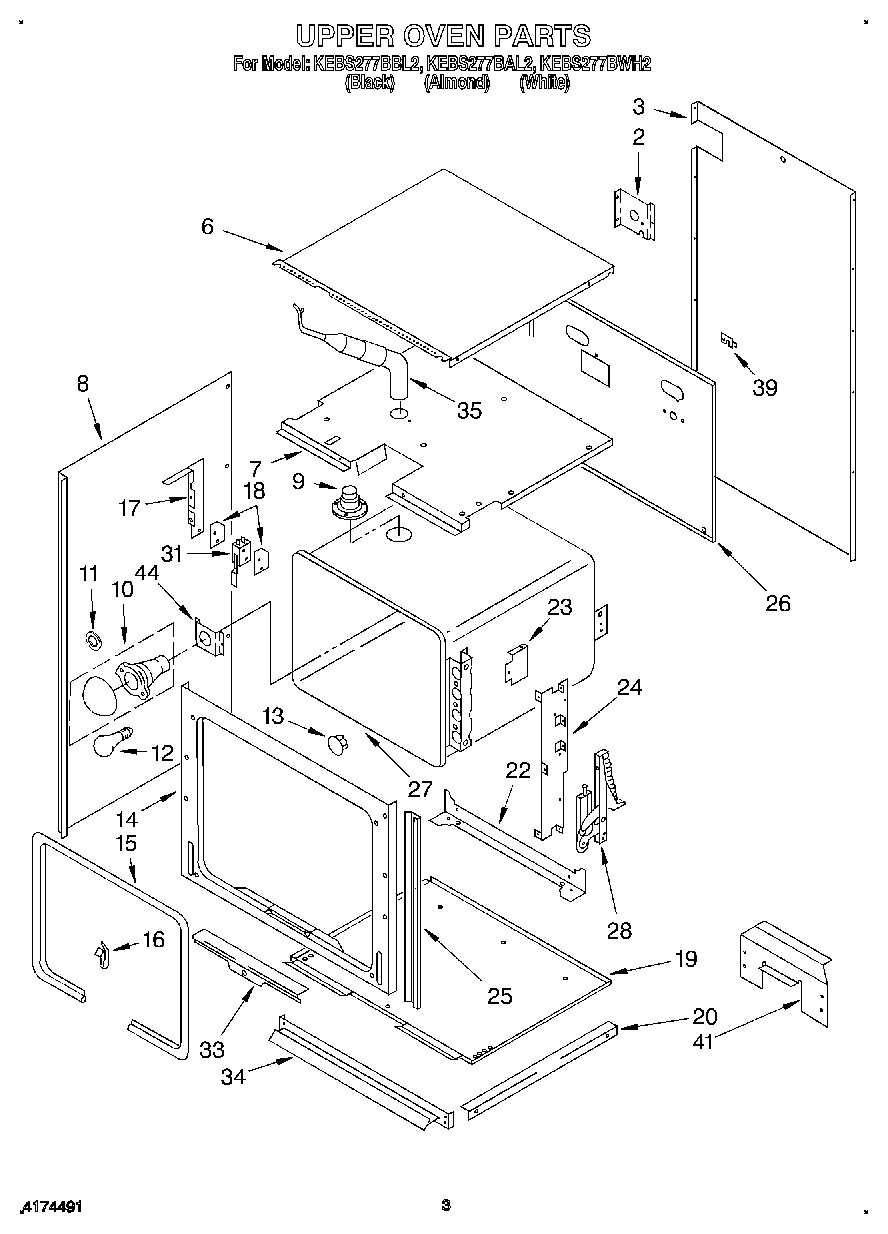

KEBS277BAL2 02 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Module, Top
8	Side, Cabinet (Left Hand)
8	Side, Cabinet (R.H. & L.H.)
9	Tube, Vent
9	Screw (2)
10	W11594027 Whirlpool Range Oven Light Socket
11	WP3184533 Whirlpool Range Light Lens Gasket
12	RANGE ONLY 40W 120V APPL BULB
13	Button, Plug
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
22	Support, Oven
23	Shield, Radiation
23	Screw (6)
24	Bracket, Hinge
25	Side Trim, Door (2) (Almond Model)
25	Side Trim, Door (2) (White Model)
25	Trim, Door Side (2) (Black Model)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
31	Switch, Door
31	Nut (2)
31	Screw (2)
33	Screw (4)
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Screw (2))
34	Vent, Middle Trim (White Model)
34	Vent, Middle Trim (Black Model)
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Almond Model)
35	Screw
35	Tube, Vent
39	Cover, Cap Tube
39	Screw
41	WPL 3183752
41	WP3177991 Whirlpool Screw
44	Insulation, Oven
44	Screw
44	Retainer, Insulation
