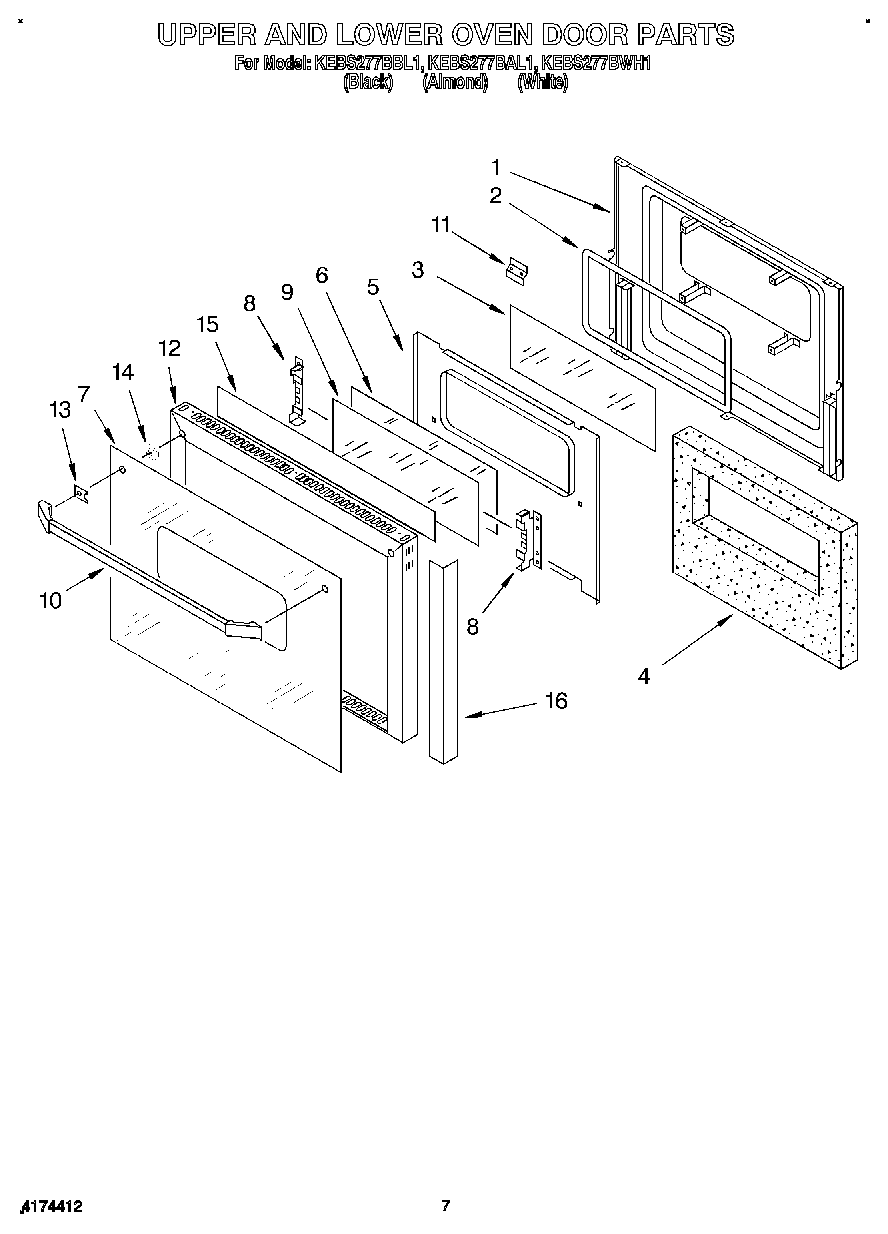

KEBS277BBL1 05 – UPPER AND LOWER OVEN DOOR

Products

PositionProduct
1Liner, Door
2Seal, Window
3Glass, Clear
4Insulation, Door
5Vent, Lower Trim (Screw (2))
5Retainer, Insulation
6Glass, Reflective
7Glass, Door (White Model)
7Glass, Door (Black Model)
7Glass, Door (Almond Model)
8Retainer, Glass
9Glass, Clear
10Handle, Door (Black Model)
10Handle, Door (White Model)
10Handle, Door (Almond Model)
11Latch, Strike
12Frame, Door (White Model)
12Frame, Door (Black Model)
12Frame, Door (Almond Model)
13Spacer, Door Handle
14Screw, 10-32 x 1/2
14Bushing, Door Handle
14Screw
15Foil, Adhesive
16Foil-Adhesive
