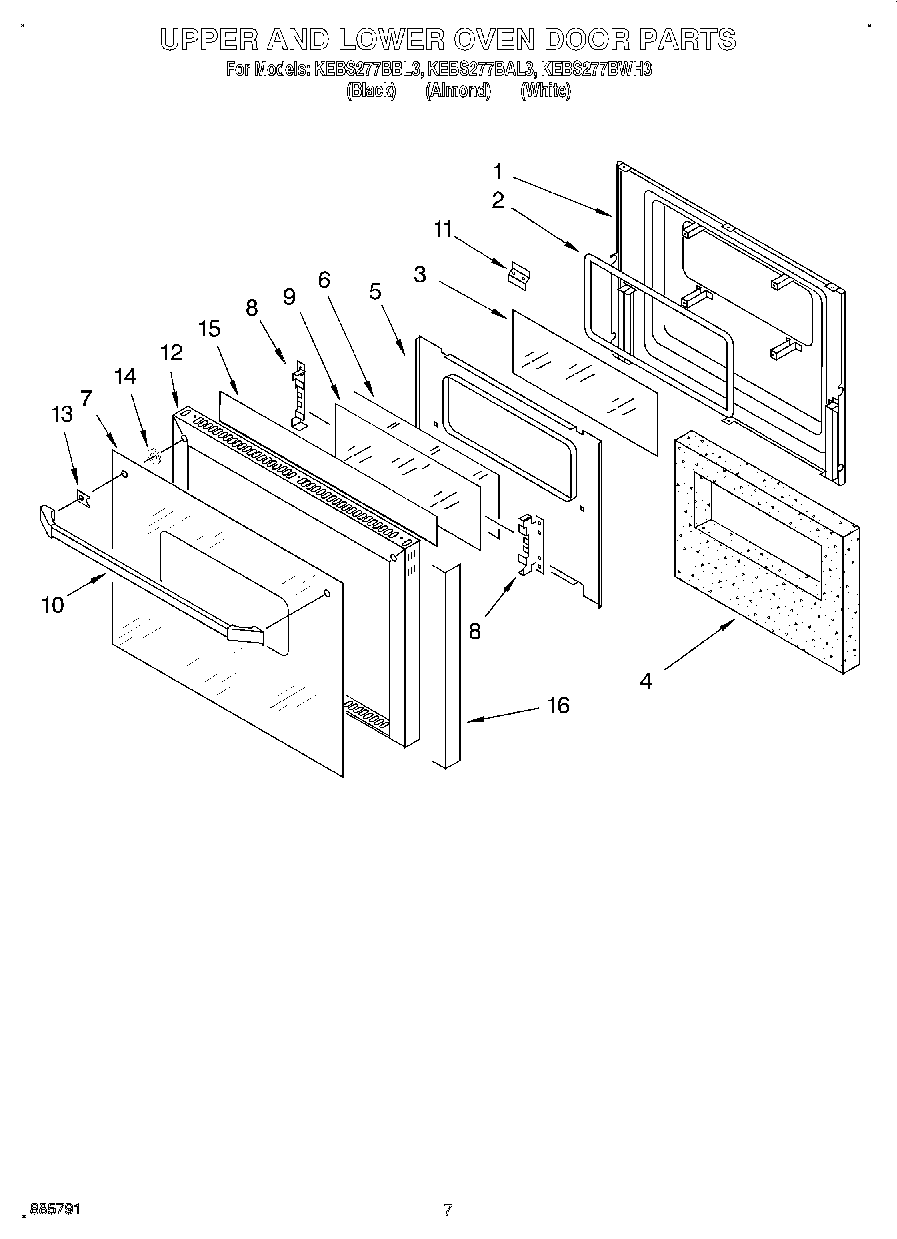

KEBS277BBL3 04 – UPPER AND LOWER OVEN DOOR

KEBS277BBL3 04 – UPPER AND LOWER OVEN DOOR

Written by

in

KEBS277BBL3 04 – UPPER AND LOWER OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Seal, Window
3	Glass, Clear
4	Insulation, Door
5	Screw
5	Retainer, Insulation
6	Glass, Reflective
7	Glass, Door (Black Model)
7	Glass, Door (Almond Model)
7	Glass, Door (White Model)
8	Retainer, Glass
9	Glass, Clear
10	Handle, Door (Black Model)
10	Handle, Door (Almond Model)
10	Handle, Door (White Model)
11	Latch, Strike
12	Frame, Door (Almond Model)
12	Frame, Door (White Model)
12	Frame, Door (Black Model)
13	Spacer, Door Handle
14	Bushing, Door Handle
14	Screw
15	Foil, Adhesive
16	Foil-Adhesive
