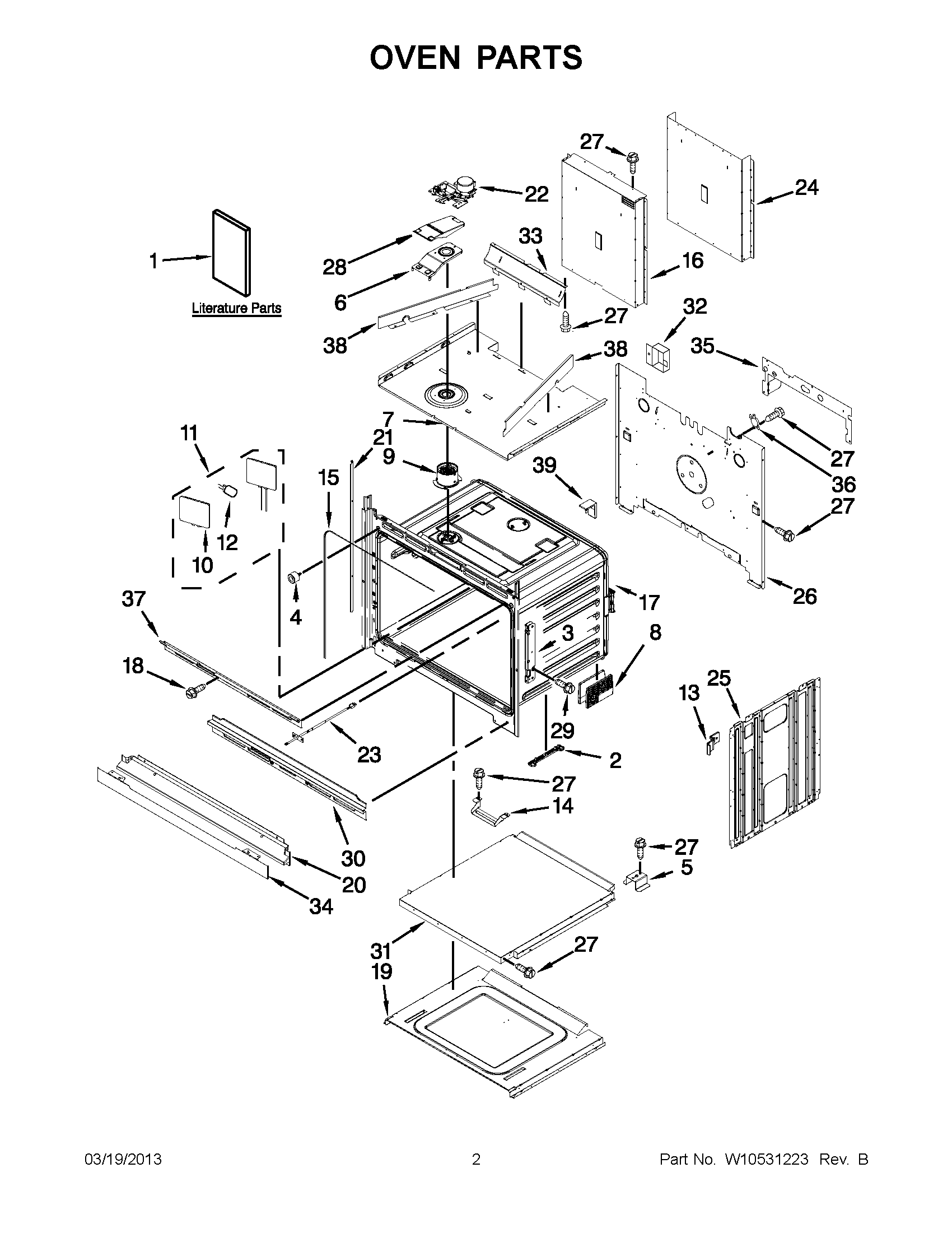

KEBS277BSS00 01 – OVEN PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10520716 Whirlpool Insulation
NI	W11688333 Whirlpool Insulation
1	USE & CARE GUIDE
1	TECH SHEET (ENGLISH/FRENCH)
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
2	WPW10318220 Whirlpool Spacer
3	W11613828 Whirlpool Hinge Receptacle
4	WPW10351278 Whirlpool Bumper
5	W10213759 Whirlpool Support
6	W10616809 Whirlpool Vent Tube
7	CHASSIS, TOP
8	W10821321 Whirlpool Leveling Foot
9	W11240525 Whirlpool Vent Tube
10	WPW10519866 Whirlpool Light
12	WPW10472384 Whirlpool Light Bulb
13	W10347649 Whirlpool Spacer
14	W10351308 Whirlpool Support Bracket
15	W10856596 Whirlpool Oven Gasket
16	W10318196 Whirlpool BA Chassis
18	WP4450038 Whirlpool Screw
19	BASE, CHASSIS
20	WPW10327376 Whirlpool Oven Vent
21	W10536161 Whirlpool Oven Trim Cover Kit
22	W10883049 Whirlpool Door Latch
23	PROBE, SENSOR
24	DUCT, CHASSIS BACK (LOWER)
25	SIDE, CHASSIS
26	W10282991 Whirlpool Rear Cover
27	SCREW
28	W10616810 Whirlpool Exhaust Cover
29	WPW10254050 Whirlpool Screw
30	W10283041 Whirlpool Exhaust Vent
31	WPW10283008 Whirlpool Access Cover
32	8285593 Whirlpool Oven Wire Cover
33	W10351258 Whirlpool Bracket
34	WPW10327378 Whirlpool Trim
35	BRACKET, U-SHAPE
36	WP4449751 Whirlpool Range Oven Thermostat Fix
37	W10283037 Whirlpool Exhaust Vent
38	CHASSIS, DEFLECTOR
39	WPW10323551 Whirlpool Bumper
