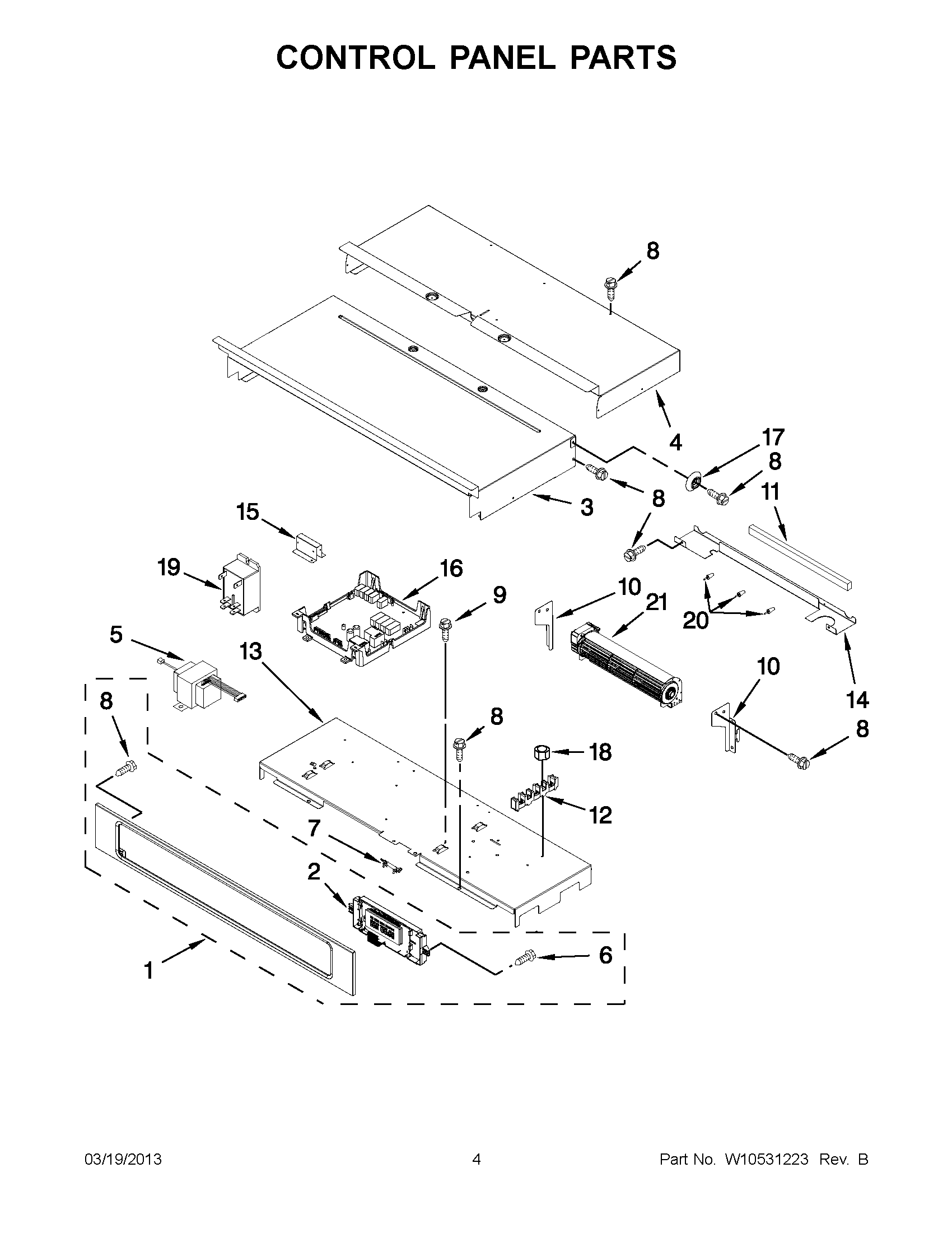

KEBS277BSS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ASSEMBLY, CONTROL PANEL
2WPW10751155-includeCORE Whirlpool WPW10751155 Refrigerator Electronic Control Board + Core
3W10318193 Whirlpool Cabinet Top
4W10318195 Whirlpool Cabinet Top
5WPW10354052 Whirlpool Transformer
6SCREW (BLACK)
7WPW10545255 Whirlpool Thermal Fuse
8SCREW
9SCREW
10W10283078 Whirlpool Mounting Bracket
10BRACKET, BLOWER LEFT
11W10491987 Whirlpool Foam Seal
12BLOCK, TERMINAL
13W10283005 Whirlpool Mounting Bracket
14W10509164 Whirlpool Mounting Bracket
15W10347585 Whirlpool Relay Bracket
16BOARD, GOC
17W10363824 Whirlpool Spacer
18Nut
19WP9752759 Whirlpool Relay
20W10351295 Whirlpool Bumper Assembly
21WPW10260254 Whirlpool Blower
