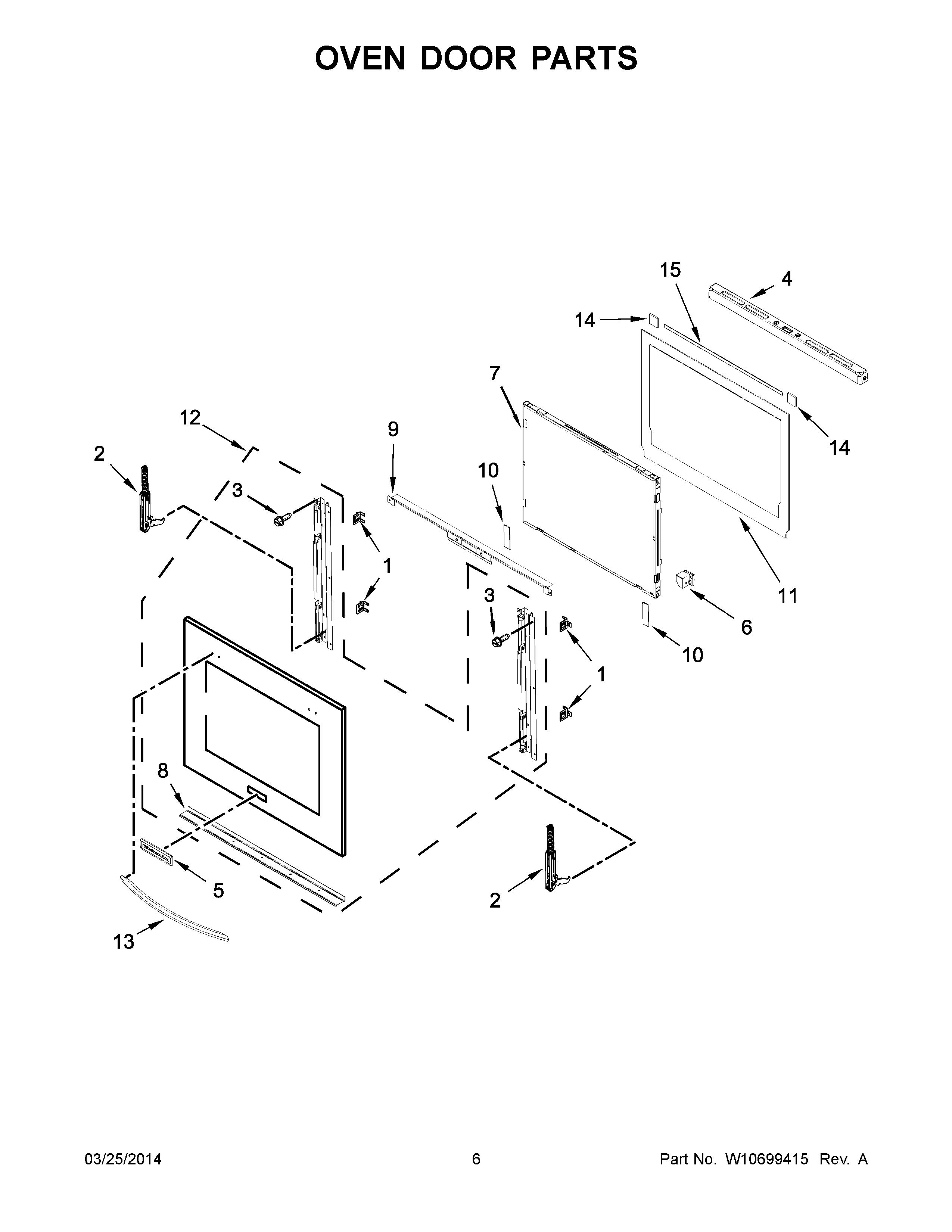

KEBS277BSS01 04 – OVEN DOOR PARTS

KEBS277BSS01 04 – OVEN DOOR PARTS

Written by

in

KEBS277BSS01 04 – OVEN DOOR PARTS

Products

PositionProduct
1WPW10549747 Whirlpool Clip
2W11642291 Whirlpool Door Hinge
3WP3196183 Whirlpool Screw
4VENT, DOOR TOP
5WPW10243391 Whirlpool Refrigerator Nameplate
6WPW10581826 Whirlpool Support Bracket
6BRACKET, DOOR (LEFT)
7ASSEMBLY, WINDOW PACK
8BRACKET, LOWER DOOR
9W10459352 Whirlpool Glass Bracket
10W10840861 Whirlpool Spacer
11WPW10335921 Whirlpool Glass Frame
12ASSEMBLY, DOOR GLASS (STAINLESS)
12ASSEMBLY, DOOR GLASS (STAINLESS (UPPER))
13WPW10437675 Whirlpool Door Handle
14WPW10517428 Whirlpool Spacer
15PAD, VENT
