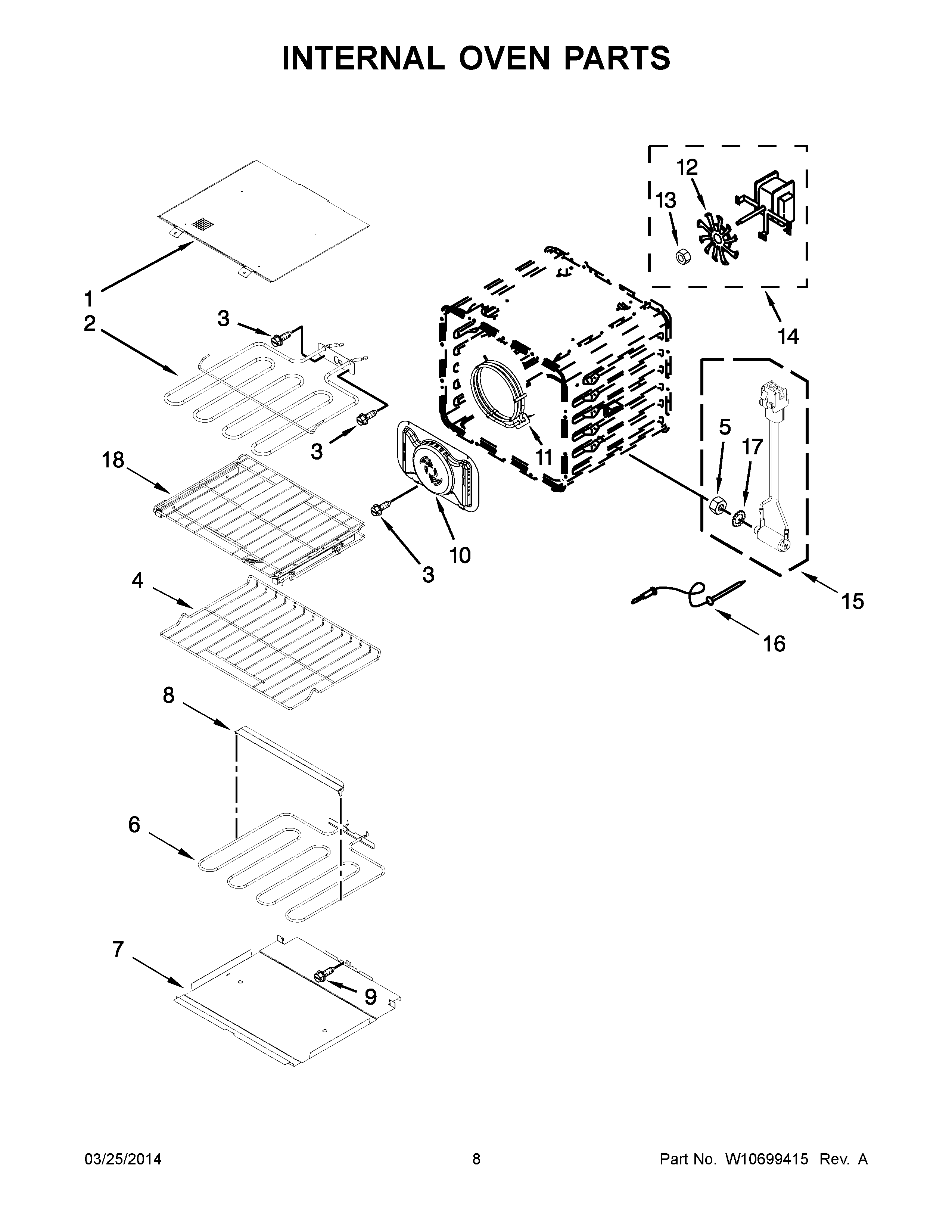

KEBS277BSS01 05 – INTERNAL OVEN PARTS

Products

Position	Product
1	W11290999 Whirlpool Shield Heat
2	W10804429 Whirlpool Broil Element
3	WP4449154 Whirlpool Screw
4	WPW10554529 Whirlpool Oven Rack
5	WP9755546 Whirlpool Locknut
6	BAKE ELEMENT
7	W10318198 Whirlpool Bake Tray
8	W10282957 Whirlpool Bracket Support
9	SCREW
10	W11234761 Whirlpool Baffle Convector
11	W11678579 Whirlpool Element
12	W10758272 Whirlpool Convection Fan
13	WPW10116349 Whirlpool Nut
14	W10794022 Whirlpool Oven Cooktop Fan Motor
15	WPW10524044 Whirlpool Jack Probe
16	WP9755542 Whirlpool Oven Meat Probe
17	WP9755547 Whirlpool Lockwasher
