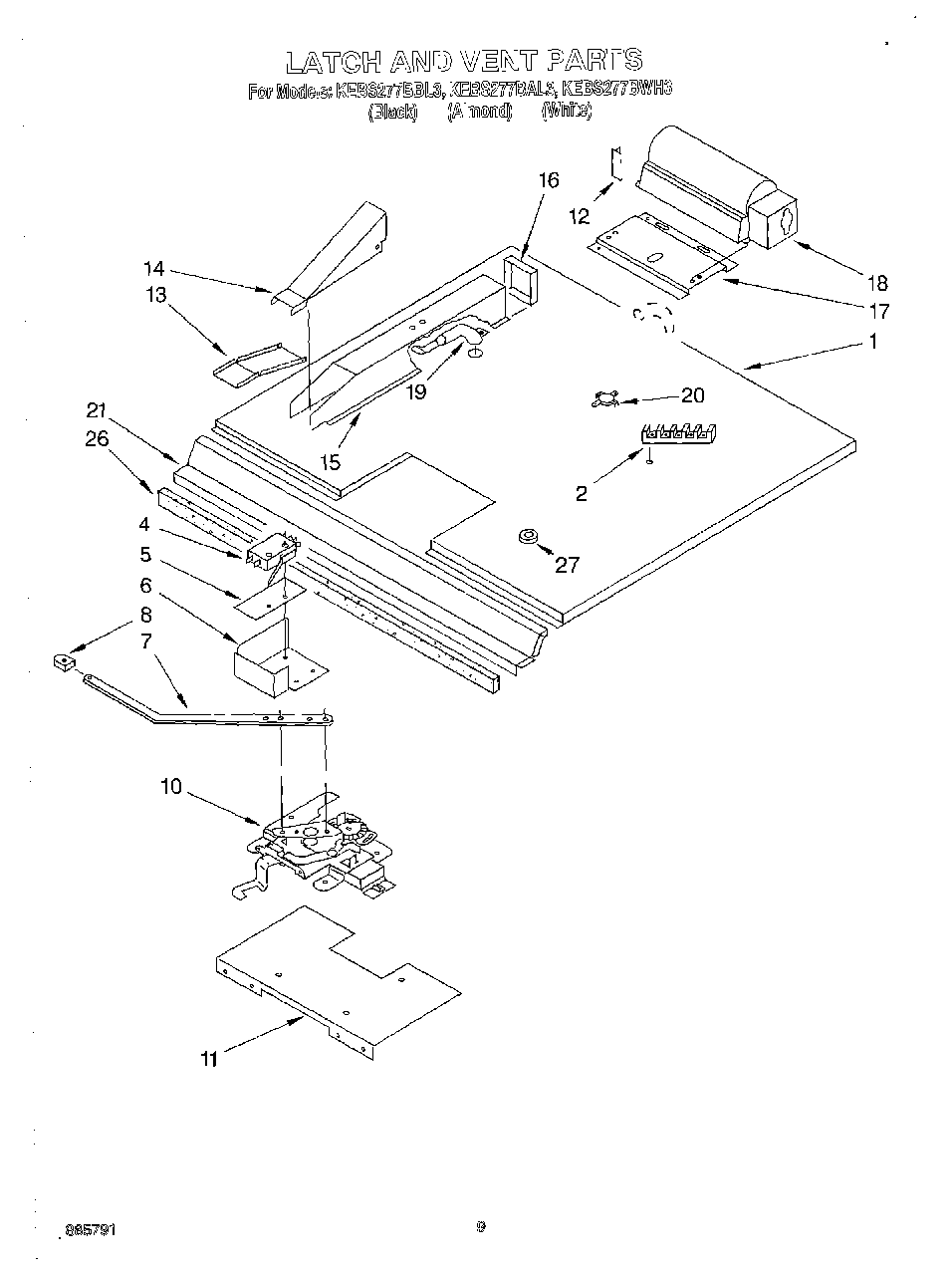

KEBS277BWH3 06 – LATCH AND VENT

Products

PositionProduct
1Module, Top
2Screw (10-12 x .875)
2WP8203546 Whirlpool Terminal Block
4Switch, latch
4Switch, Latch
5Screw,
5Screw
5Insulator, Switch
6Guard, Latch
7Screw (2)
7Handle, Latch
7Screw, 8-18 X 3/4 (4)
7Handle, Latch
7Screw
8Screw
8Knob, Latch Handle
10Latch, Mechanism
11Plate, Mounting
12Baffle-Blower
12Screw
13Nozzle, Vent Bottom
14Nozzle, Vent Top
15Box, Vent
16End, Vent Box
17Bracket, Mounting
18Blower, fan
19Tube, Vent
19Screw
20SPST Thermostat
20Screw
21Shield, Heat
21WP3177991 Whirlpool Screw
26Seal, foam
27Bushing
