KEBS277DAL6 05 – TOP VENTING, OPTIONAL

KEBS277DAL6 05 – TOP VENTING, OPTIONAL

Written by

in

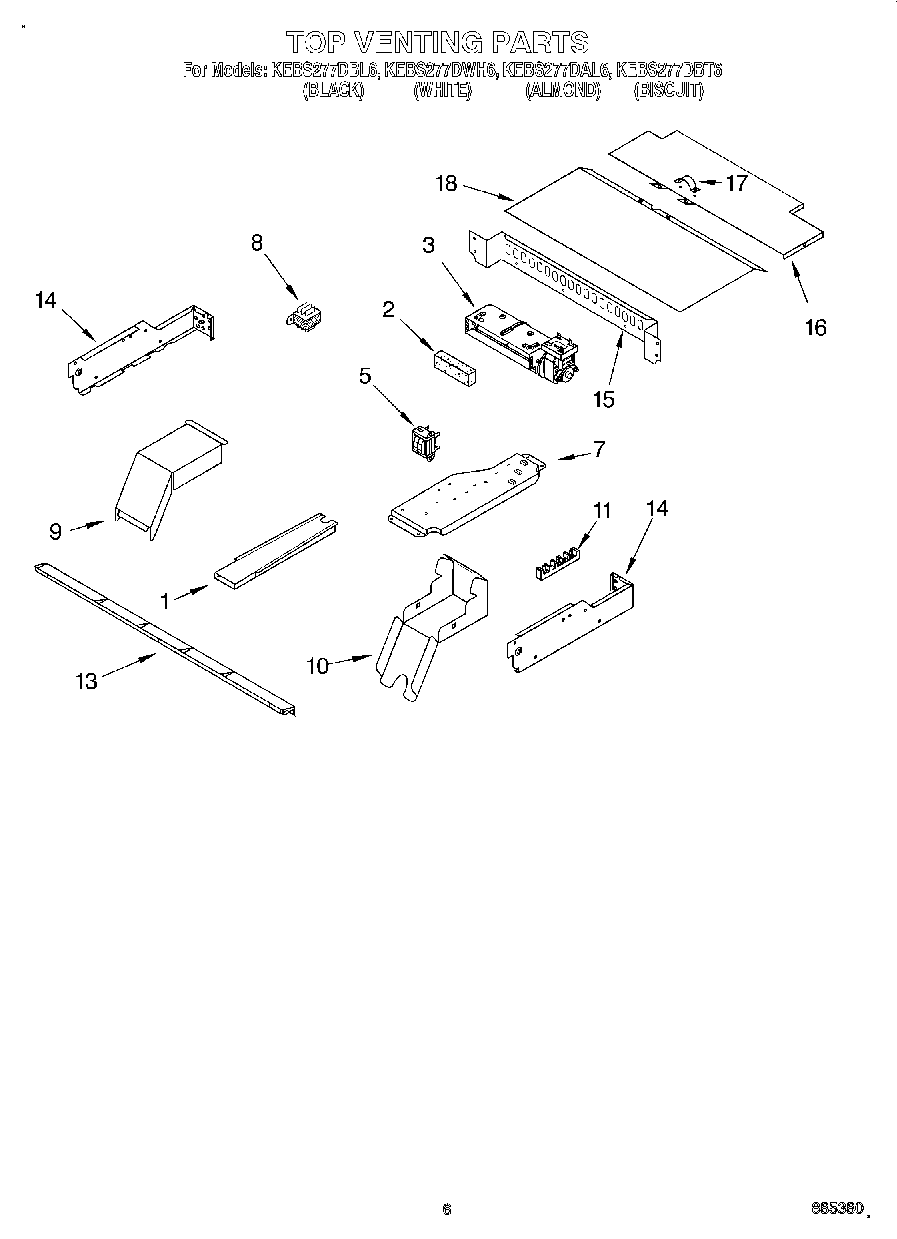

KEBS277DAL6 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
3WPW10016550 Whirlpool Blower Cooling Fan
5WP9760588 Whirlpool Transformer
7Plate, Mounting
8Transformer
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP3387230 Whirlpool Screw
11WP8203546 Whirlpool Terminal Block
13Vent, (Control Panel)
13WP4450038 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
15Back, Control
16Cover, Top Rear
17WP112432 Whirlpool Nut Assembly
18261900 Whirlpool Microwave Spray
18Wire (14 Ga. 150 c Orange)
18Wire (14 Ga. 150 c Yellow)
184451761 Whirlpool Oven Support Bracket
18Wire, 25` Roll (Black 14 Ga.)
18Wire (12 Ga. 150 c Black)
1818 Ga. 80~c Rating (Red)
18Wire (14 Ga. 200 c Brown)
18WPL 591014
181
18Cover, Top Front
18WPL 4454927
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
1872032 Whirlpool Touch Up Paint Black
18285006 Whirlpool Spray
18WPW10339879 Whirlpool Wire Tie
184450800 Whirlpool Oven Screw
184448664 Whirlpool Oven Mounting Bracket
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18WP4449809 Whirlpool Screw
1872017 Whirlpool Appliance Touch-Up Paint White
18WP482338 Whirlpool Refrigerator Adhesive
18814381 Whirlpool Pin
18Wire (14 Ga. 150 c Blue)
18WP261869 Whirlpool Microwave Paint
18242831 Whirlpool Oven Wire
18WP4456654 Whirlpool Thermal Fuse
18Spacer, Harness
1816515 Whirlpool Clip
18Conduit, Double
18WPL 4452239
18WP4448950 Whirlpool Screw
18350930 Whirlpool White Spray Paint
