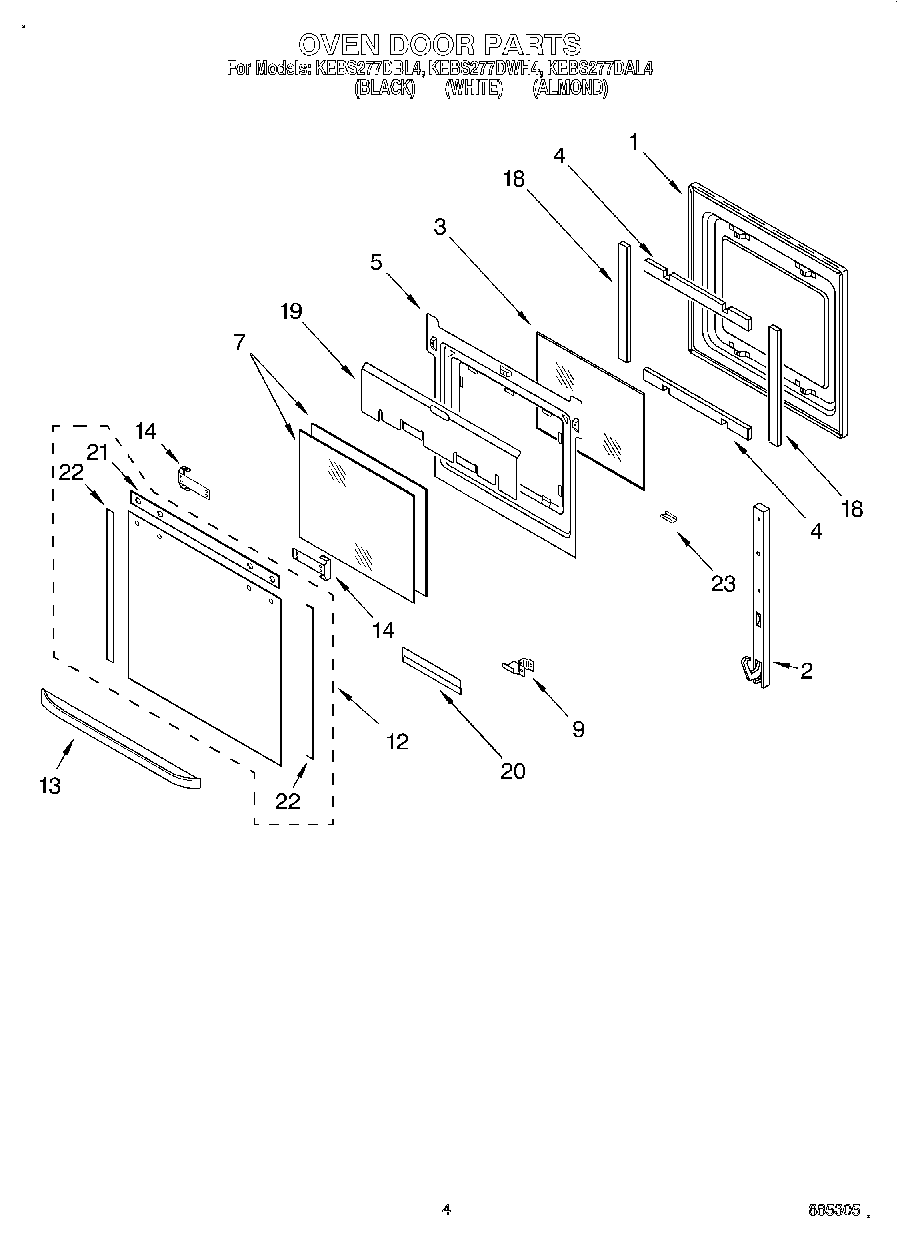

KEBS277DBL4 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation Top and Bottom
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
9	Retainer, Glass
12	Door Glass, Outer (Almond Model)
12	Glass, Outer (White Model)
12	Glass, Outer (Black Model)
13	Handle (Black Model)
13	Handle (White Model)
13	Door Handle (Almond Model)
14	Screw
14	Bracket, Handle
18	W11688413 Whirlpool Insulation
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
22	Seal, Sides
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	Retainer, Clip (Almond Model)
