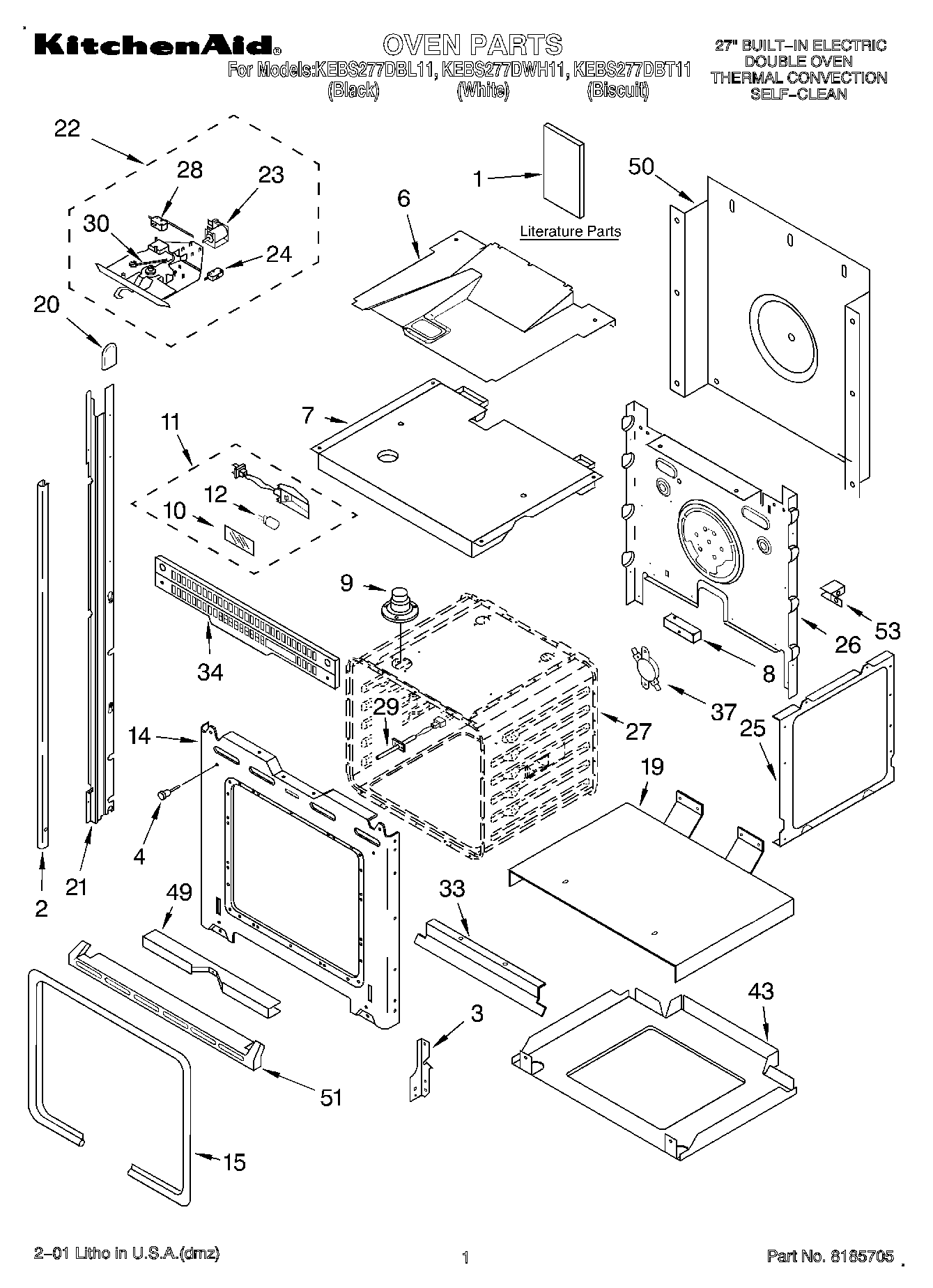

KEBS277DBT11 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet (Oven))
1	Literature Parts (Use & Care Guide)
2	Trim, Side (Left Hand)) (White Model)
2	Trim, Side (LH Black)
2	Trim, Side (RH Biscuit)
2	Trim, Side (Right Hand) (White Model)
2	Trim, Side (RH Black)
2	Trim, Side (White)
2	WP8281236 Whirlpool Screw
2	Trim, Side (LH Biscuit)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
8	Spacer, Foam
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Spring, Latch
33	Deflector, Vent
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	WP3400832 Whirlpool Screw
51	WPL 4452414
51	WPL 4448476
51	Tri
53	WP4449809 Whirlpool Screw
53	WPL 4449845
53	WPL 4449315
53	WPL 4450364
