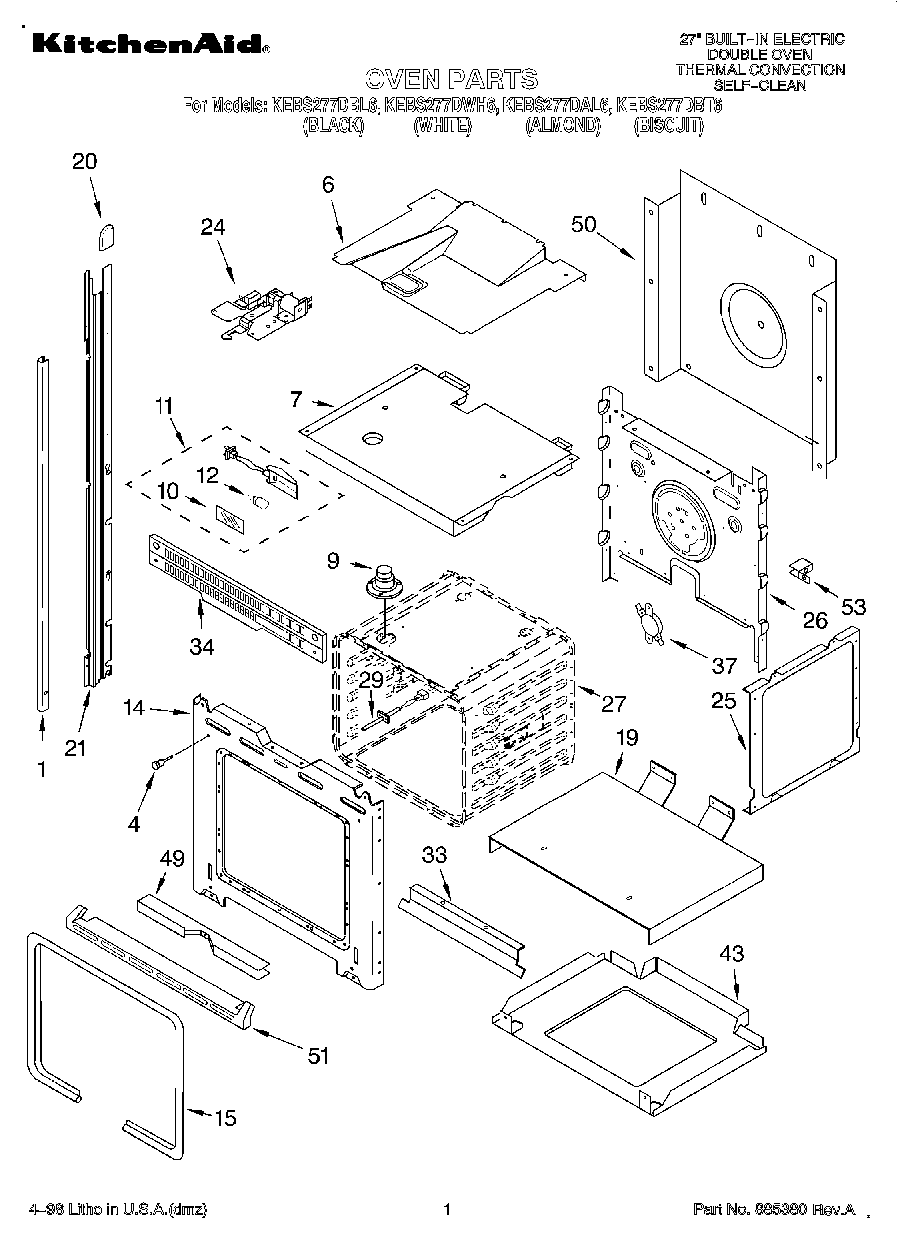

KEBS277DBT6 01 – OVEN

Products

Position	Product
1	Trim, Side (LH Black)
1	Trim, Side (Right Hand) (White Model)
1	Trim, Side (RH Black)
1	Trim, Side (Left Hand)) (Almond Model)
1	Trim, Side (Left Hand)) (White Model)
1	Trim, Side (Right Hand) (Almond Model)
1	Trim, Side (RH Biscuit)
1	WP8281236 Whirlpool Screw
1	Trim, Side (LH Biscuit)
1	Trim, Side (White)
4	4448520 Whirlpool Oven Bumper
6	Divider, Vent
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	Frame, Front
14	WP4450118 Whirlpool Nut
15	WP4455381 Whirlpool Door Gasket
19	Support, Insulation
20	Cap, Spacer
21	WP4448444 Whirlpool Grommet
21	814374 Whirlpool Oven Rail Mount
21	814373 Whirlpool Oven Rail Mount
24	Latch Assembly
24	Solenoid
24	Microswitch
24	Micro Switch N.C.
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
29	Sensor
33	Deflector, Vent
34	Vent, Center
37	WP9759242 Whirlpool Thermostat
43	Base, Chassis
49	WP4449154 Whirlpool Screw
49	WP4448933 Whirlpool Retainer
50	WP4451747 Whirlpool Rear Cover
51	Trim, Bottom (White Model)
51	Trim, Bottom (Black Model)
51	Screw, (2)
51	Trim, Bottom (Almond Model)
51	Trim, Bottom (Biscuit)
53	WP4449809 Whirlpool Screw
53	WPL 4449845
53	WPL 4449315
53	WPL 4450364
