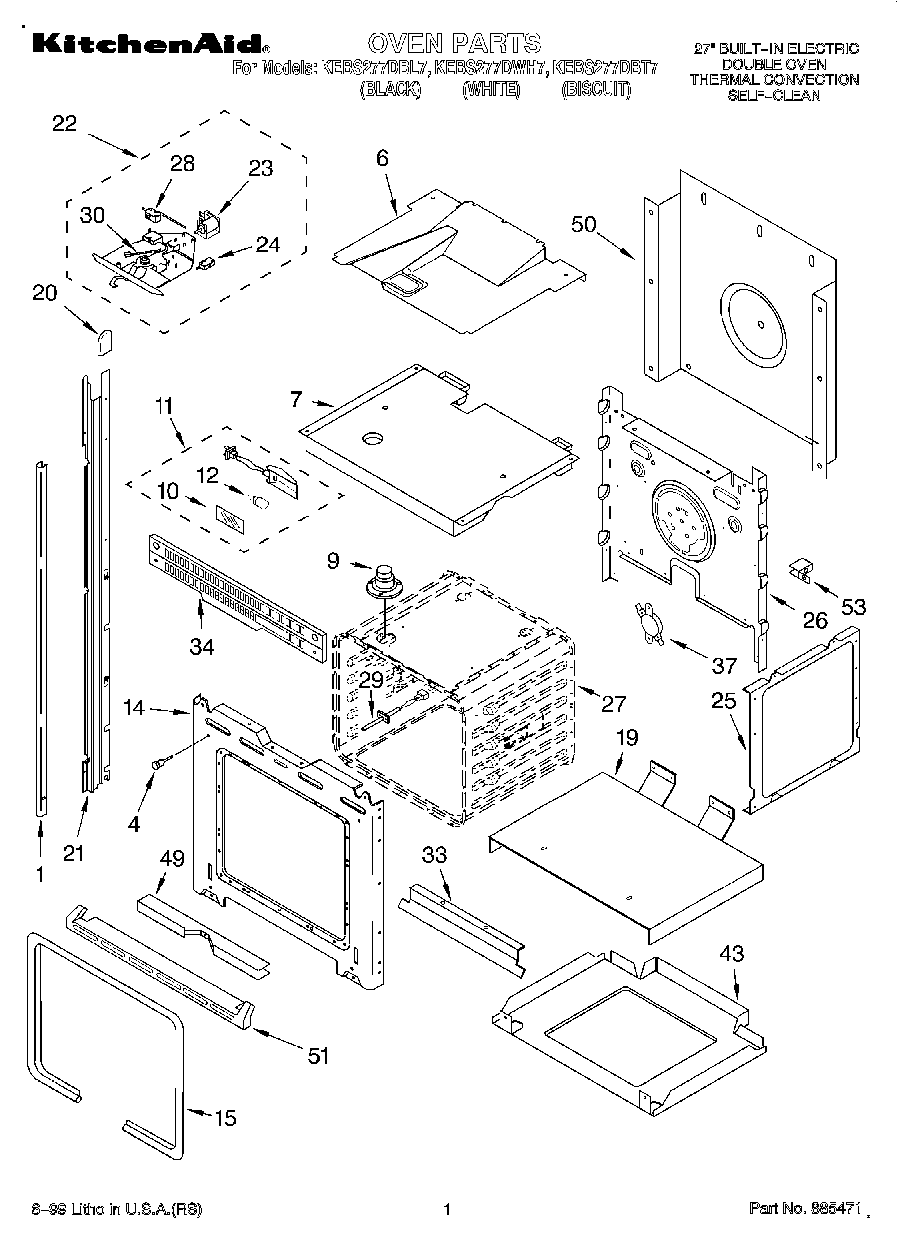

| 1 | Trim, Side (RH Biscuit) |
| 1 | Trim, Side (LH Biscuit) |
| 1 | WP8281236 Whirlpool Screw |
| 1 | Trim, Side (White) |
| 1 | Trim, Side (RH Black) |
| 1 | Trim, Side (Left Hand)) (White Model) |
| 1 | Trim, Side (LH Black) |
| 1 | Trim, Side (Right Hand) (White Model) |
| 4 | 4448520 Whirlpool Oven Bumper |
| 6 | Divider, Vent |
| 7 | Top, Chassis |
| 9 | W10861715 Whirlpool Vent Tube |
| 10 | Lens, Light |
| 11 | 4449748 Whirlpool Oven Screw |
| 11 | WP4448972 Whirlpool Oven Light |
| 12 | WP4452164 Whirlpool 12V 5W Halogen Light Bulb |
| 14 | Screw |
| 14 | WP4450118 Whirlpool Nut |
| 14 | Frame, Front |
| 15 | WP4455381 Whirlpool Door Gasket |
| 19 | Support, Insulation |
| 20 | Cap, Spacer |
| 21 | WP4448444 Whirlpool Grommet |
| 21 | 814373 Whirlpool Oven Rail Mount |
| 21 | 814374 Whirlpool Oven Rail Mount |
| 22 | Latch Assembly |
| 23 | Solenoid |
| 24 | Micro Switch N.C. |
| 25 | Side, Chassis (R.H. & L.H.) |
| 26 | Back, Chassis |
| 27 | Liner, Oven (Not a Serviceable Part) |
| 28 | Microswitch |
| 29 | Sensor |
| 30 | Spring, Latch |
| 33 | Deflector, Vent |
| 34 | Vent, Center |
| 37 | WP9759242 Whirlpool Thermostat |
| 43 | Base, Chassis |
| 49 | WP4448933 Whirlpool Retainer |
| 49 | WP4449154 Whirlpool Screw |
| 50 | WP4451747 Whirlpool Rear Cover |
| 51 | Tri |
| 51 | Screw, (2) |
| 51 | WPL 4452414 |
| 51 | WPL 4448476 |
| 53 | WPL 4449845 |
| 53 | WPL 4450364 |
| 53 | WPL 4449315 |
| 53 | WP4449809 Whirlpool Screw |
