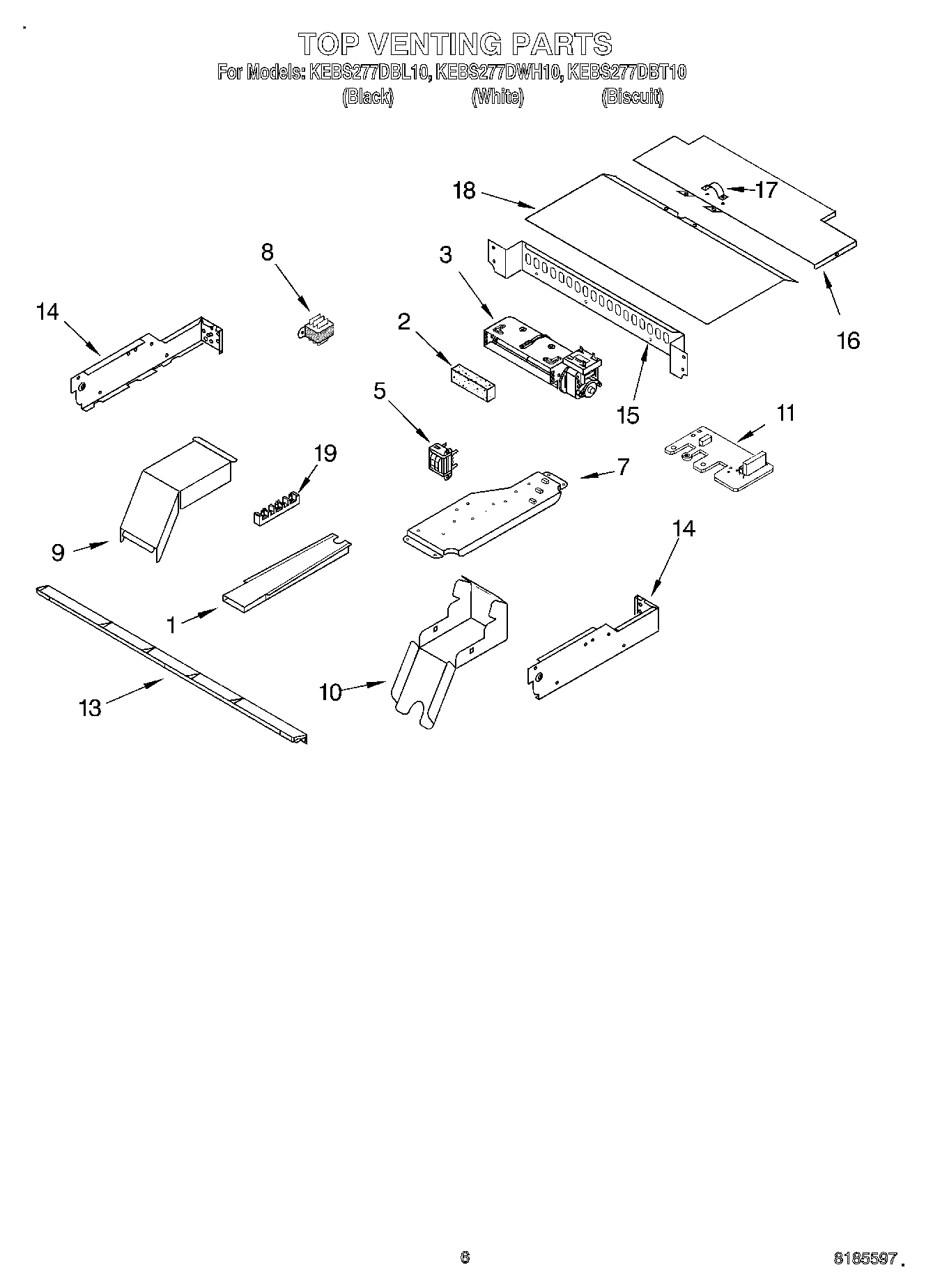

KEBS277DWH10 05 – TOP VENTING, OPTIONAL

KEBS277DWH10 05 – TOP VENTING, OPTIONAL

Written by

in

KEBS277DWH10 05 – TOP VENTING, OPTIONAL

Products

PositionProduct
14451759 Whirlpool Oven Exhaust Vent
2W10491987 Whirlpool Foam Seal
34455191 Whirlpool Oven Mounting Plate
3Blower
3WPW10016550 Whirlpool Blower Cooling Fan
3WP4455352 Whirlpool Mounting Bracket
5WP9760588 Whirlpool Transformer
7Plate, Mounting
8Transformer, Control
94455178 Whirlpool Oven Top Elbow
104455177 Whirlpool Oven Bottom Elbow
11WP4451985 Whirlpool Noise Filter Board
13WP4450038 Whirlpool Screw
13Vent, (Control Panel)
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
14WP4449154 Whirlpool Screw
15Back, Control
16Cover, Top Rear
17WP112432 Whirlpool Nut Assembly
18WP4449809 Whirlpool Screw
18Cover, Top Front
19WP8203546 Whirlpool Terminal Block
19Harness, Wire (Latch)
19261900 Whirlpool Microwave Spray
19Wire (14 Ga. 200 c Brown)
191
19Wire, 25“ Roll (White 14 GA.)
19WPL 4454841
19WPL 4455726
19Screw
194451761 Whirlpool Oven Support Bracket
19WPL 591014
1918 Ga. 80~c Rating (Red)
19Wire (12 Ga. 150 c Black)
19350930 Whirlpool White Spray Paint
19WP482338 Whirlpool Refrigerator Adhesive
1972032 Whirlpool Touch Up Paint Black
19285006 Whirlpool Spray
19WPW10339879 Whirlpool Wire Tie
194450800 Whirlpool Oven Screw
194448664 Whirlpool Oven Mounting Bracket
19Wire, 25` Roll (Red 14 Ga.)
19Wire, 25` Roll (Black 14 Ga.)
19814381 Whirlpool Pin
19WP4448950 Whirlpool Screw
19Conduit, Double
19Wire (14 Ga. 150 c Yellow)
19Wire (14 Ga. 150 c Orange)
19Wire (14 Ga. 150 c Green)
19Wire (14 Ga. 150 c Brown)
19Wire (14 Ga. 150 c Blue)
19WP261869 Whirlpool Microwave Paint
19242831 Whirlpool Oven Wire
19Spacer, Harness
1916515 Whirlpool Clip
1972017 Whirlpool Appliance Touch-Up Paint White
