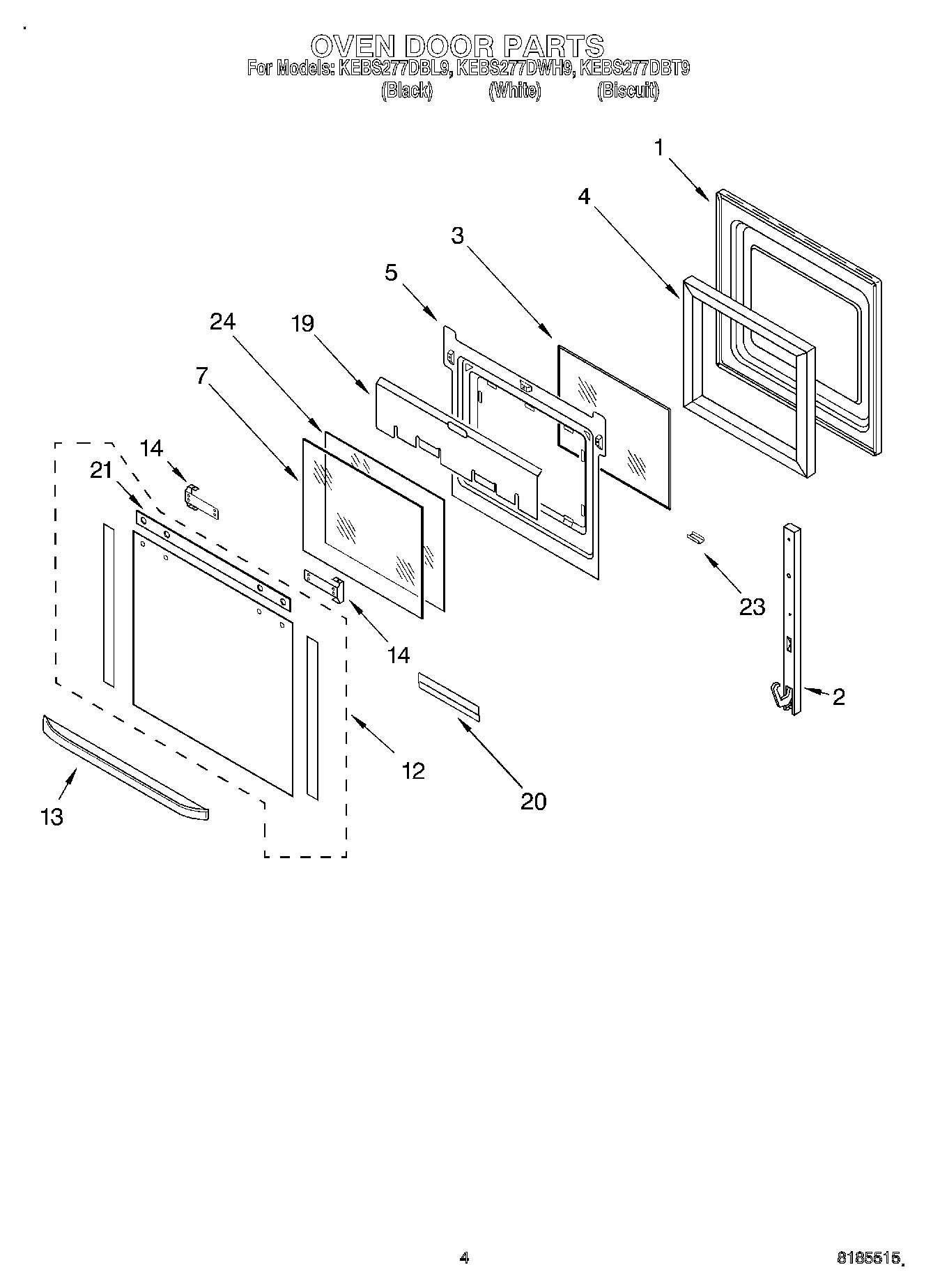

KEBS277DWH9 03 – OVEN DOOR

KEBS277DWH9 03 – OVEN DOOR

Written by

in

KEBS277DWH9 03 – OVEN DOOR

Products

Position	Product
1	Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455524 Whirlpool Door Hinge
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Retainer, Glass
7	WP4449257 Whirlpool Door Glass
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (Biscuit)
12	Door Glass, Assy (White Model)
13	Handle (Black Model)
13	Handle (White Model)
13	Door Handle (Biscuit)
14	Bracket, Handle
14	Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
24	Glass, Inner
