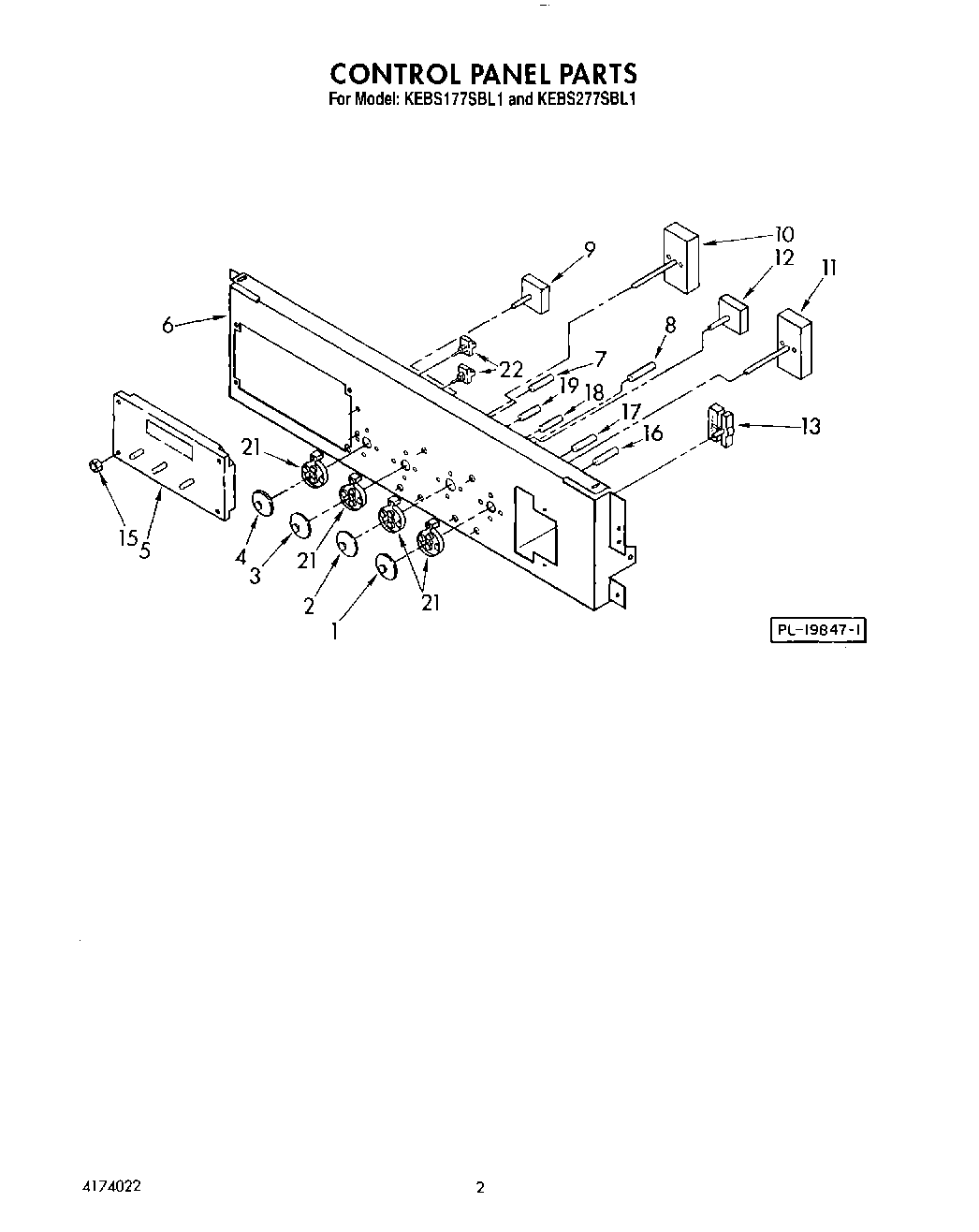

KEBS277SBL0 02 – CONTROL PANEL

Products

PositionProduct
2Selector Disc Lower Oven
3Thermostat Disc Upper Oven
4Selector Disc Upper Oven
5Clock
6Mounting Panel
8Indicator Light,
9Selector Switch Upper Oven
10Thermostat, Upper Oven
11Thermostat
12Selector Switch
13Meat Probe Indicator Assy.
15Nut, Timer (4)
19Indicator Light (2)
21Back Light Housing
22Wiring Harness High Temp
22Wiring Harness High Temp KEBS177
22Wiring Harness Low Temp KEBS177
22Switch, Heat
22Wiring Harness Low Temp
