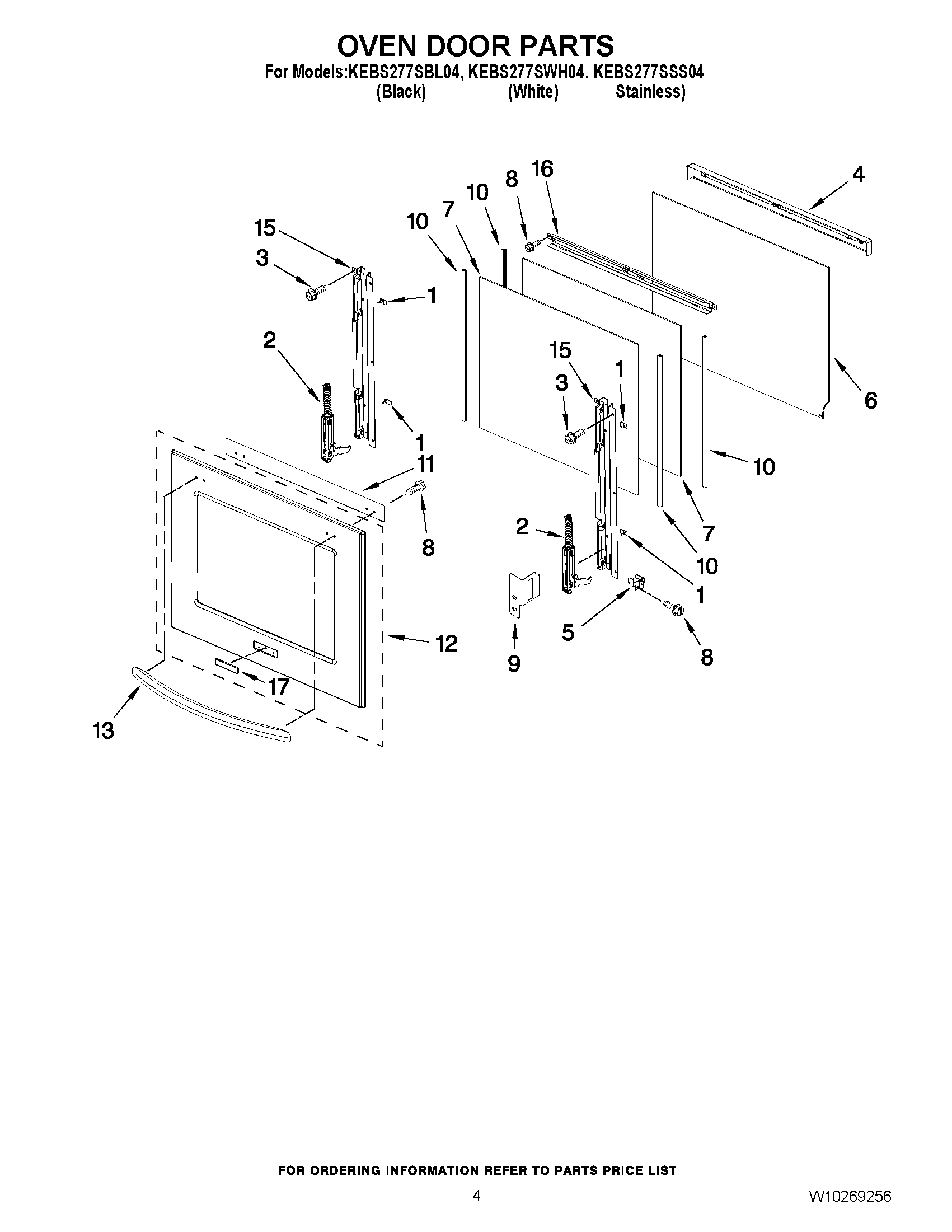

KEBS277SBL04 03 – OVEN DOOR PARTS

Products

Position	Product
1	Bumper, Glass
2	HINGE, DOOR
3	WP3196183 Whirlpool Screw
4	Vent, Door Top
5	8304378 Whirlpool Oven Support Bracket
5	Bracket, Door (Right)
6	Door Liner
7	Glass, Inner
8	WP4449743 Whirlpool Screw
9	COVER,HINGE (LEFT)
9	COVER,HINGE (RIGHT)
10	W10754409 Whirlpool Seal
11	Bracket, Handle
12	Door Glass, Assembly Upper No Badge (Black)
12	Door Glass, Assembly Includes 17 (White)
12	Door Glass, Assembly Includes 17 (Black)
12	Door Glass, Assembly Upper No Badge (White)
12	DOOR GLASS, ASSEMBLY UPPER NO BADGE (STAINLESS)
12	DOOR GLASS, ASSEMBLY INCLUDES No.17
13	Handle, Door (Black)
13	Handle, Door
13	Handle, Door (White)
15	Frame, Door Side
16	Door, Top Bracket
17	Badge (White)
17	Badge (Stainless)
17	Badge (Black)
