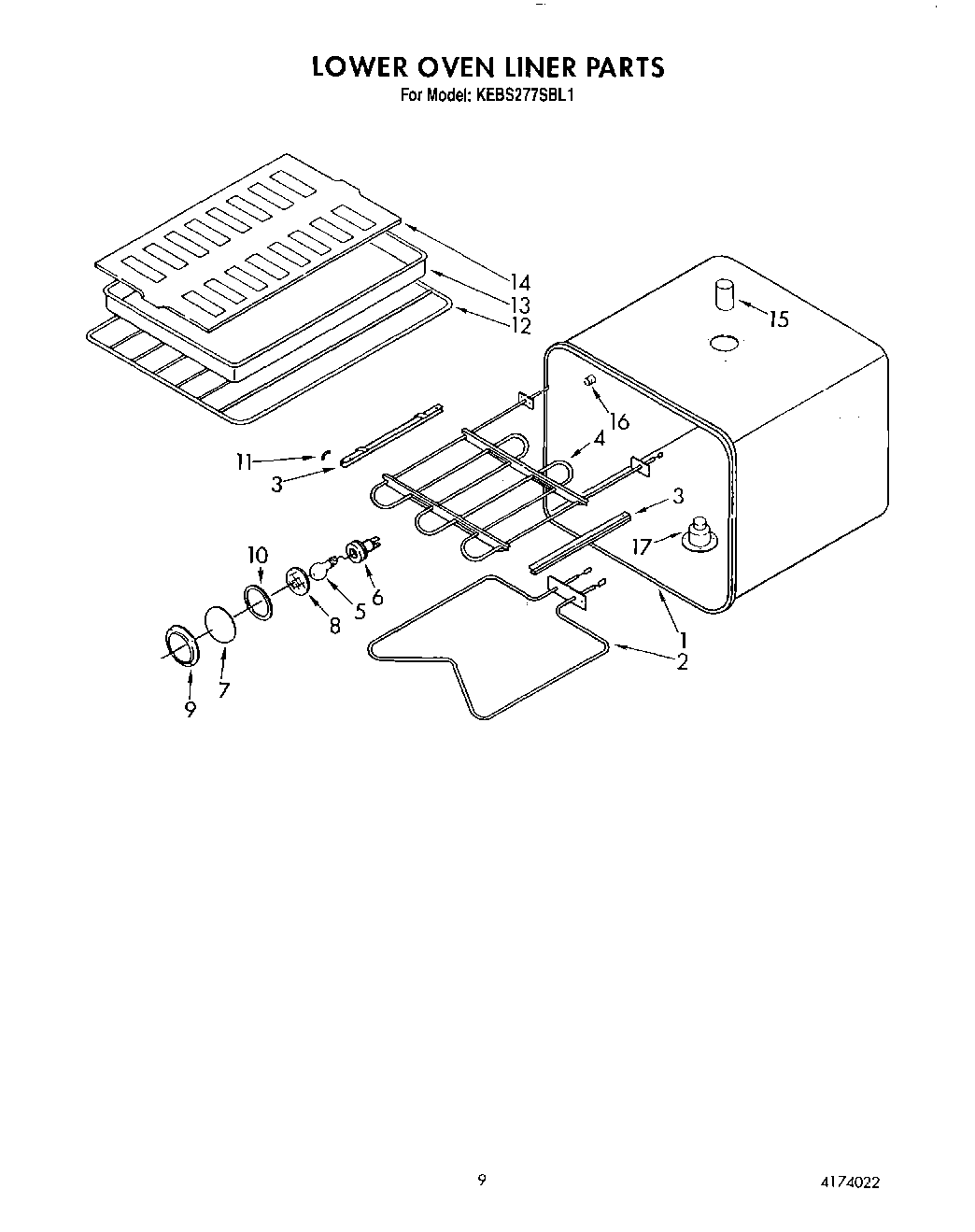

KEBS277SBL1 08 – LOWER OVEN LINERadmin2025-04-26T10:29:12+00:00KEBS277SBL1 08 – LOWER OVEN LINER ProductsPositionProduct1Liner, Oven2WP3177420 Whirlpool Bake Element3Broiler Element Support-Right3Broiler Element Support-Left4Element, Broil5RANGE ONLY 40W 120V APPL BULB6Socket, Lamp7Light Shield8Light Lens9Light Lens Retainer10Light Lens Gasket11Clip, Thermostat Bulb12Oven Rack134396923 Whirlpool Broil Pan Set Gray Porcelain15Vent Tube Lower Oven16Cover, Cap Tube17Smoke Eliminator (Upper Oven)
