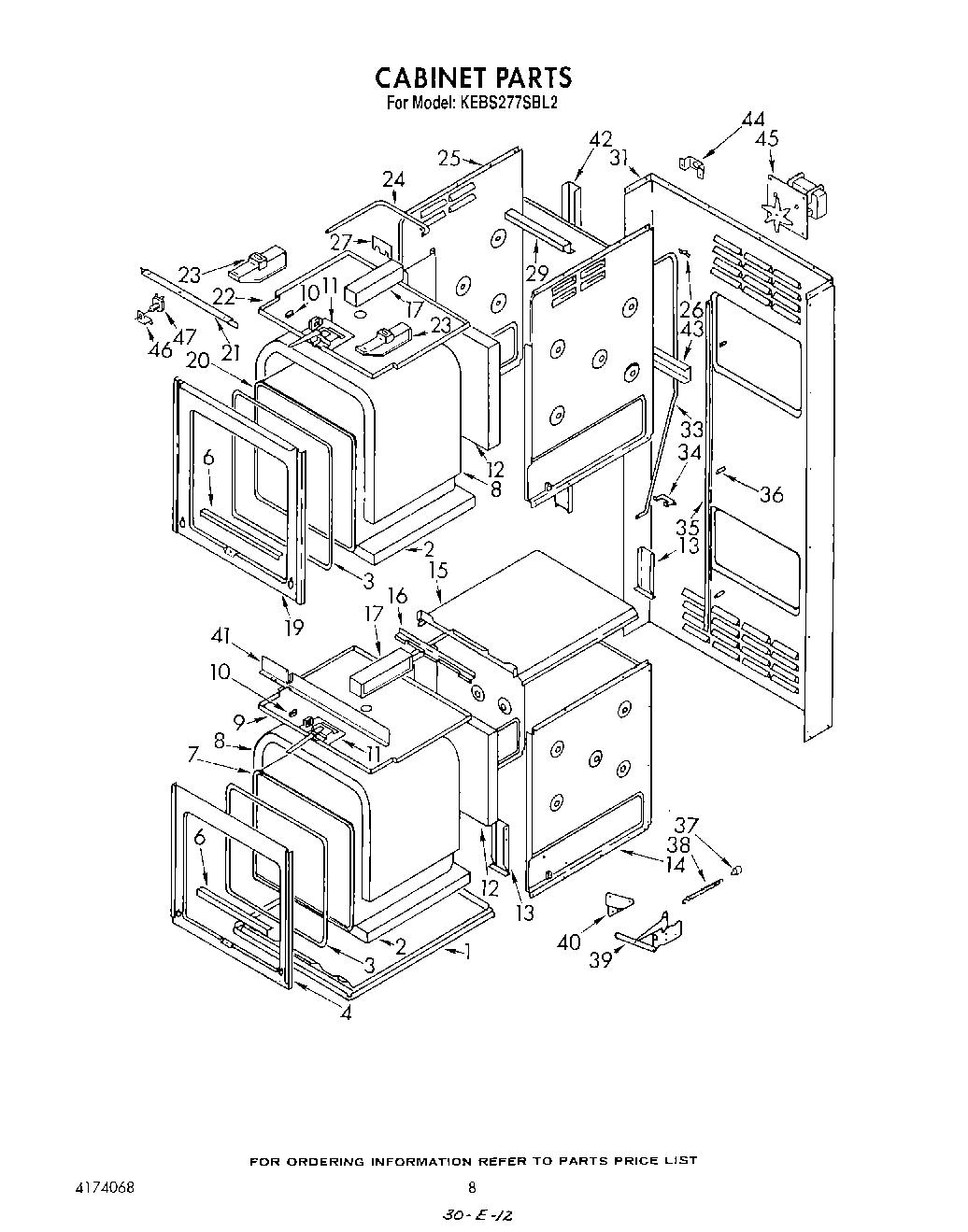

KEBS277SBL2 07 – CABINET

Products

Position	Product
1	Main Bottom
2	Insulation, Bottom
3	Door Gasket
4	Front Frame, Lower Oven
6	Cover, Seal End
7	Oven Liner (See Parts Page For Breakdown)
8	Insulation, Top and Sides
10	Knob, Latch Lever
11	Latch Assembly (See Page For Further Breakdown)
12	Insulation, Rear
13	Rear Anchor
14	Cabinet Side Lower
15	Upper Oven Support (KEBS276SBL1)
16	Front Frame Support
17	Collector Box
19	Front Frame (Upper Oven) (KEBS276SBL1)
20	Oven Liners (See Parts Page for Further Breakdown)
21	Control Frame Support
22	Compartment Top
23	Vent Box
24	Vent Tube (Upper Oven)
25	Cabinet Side, Upper Oven
26	Clamp, Conduit
27	Vent Tube Mounting Bracket
29	Air Baffle Channel
31	Cabinet Back
33	Vent Tube Lower Oven
34	Vent Tube, Retainer
35	Cabinet Support (Left)
35	Cabinet Support (Right)
35	Plug Button (5/8“ Hole)
36	Spacer
37	Spring, Anchor
38	Door Spring (Self Cleaning Oven)
39	Hinge Assembly
40	Cam Plate
40	Cam Plate (Right)
40	Cam Plate (Left Left)
41	WPL 4173171
42	Support Bracket
43	Bracket, Support
44	Retainer, Insulation
45	Convection Fan Assy. (See Page For Further Breakdown)
46	Bracket, Oven Light Switch
47	WPL 4173030
47	WPL 4173029
47	WPL 4173031
47	WPL 4173016
47	Air Du
47	Screw (2)
47	WPL 4173017
47	Oven Light Switch
47	Probe Cover
47	Plate, Cover
47	Air Duct (Upper Oven) (Left Air Duct (Lower Oven))
47	Air Duct (Upper Oven) (Right)
47	Air Duct (Upper Oven) (Left)
47	WPL 4173028
