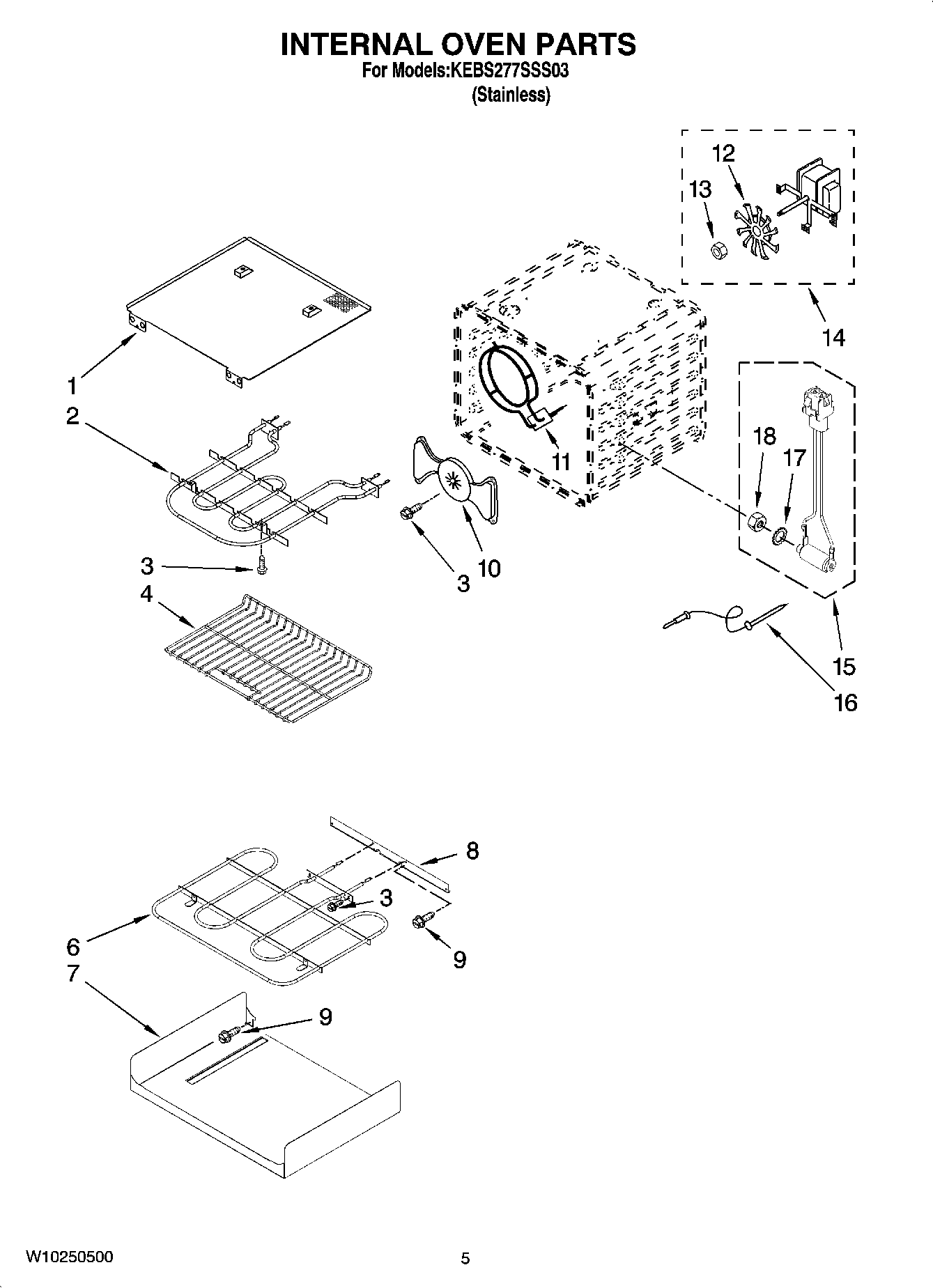

KEBS277SSS03 04 – INTERNAL OVEN PARTS

KEBS277SSS03 04 – INTERNAL OVEN PARTS

Written by

in

KEBS277SSS03 04 – INTERNAL OVEN PARTS

Products

PositionProduct
1WP8304602 Whirlpool Heat Shield Assembly
2ELMNT-BROL
3WP4449154 Whirlpool Screw
4Rack, Oven
6ELMNT-BAKE
7Tray, Hidden Bake
84450039 Whirlpool Oven Access Cover
9WP4449809 Whirlpool Screw
10Cover, Fan
11WP9760769 Whirlpool Element Assembly
12W10758272 Whirlpool Convection Fan
13WPW10116349 Whirlpool Nut
14W10794022 Whirlpool Oven Cooktop Fan Motor
158186589 Whirlpool Jack Probe
16WP9755542 Whirlpool Oven Meat Probe
17WP9755547 Whirlpool Lockwasher
18WP9755546 Whirlpool Locknut
