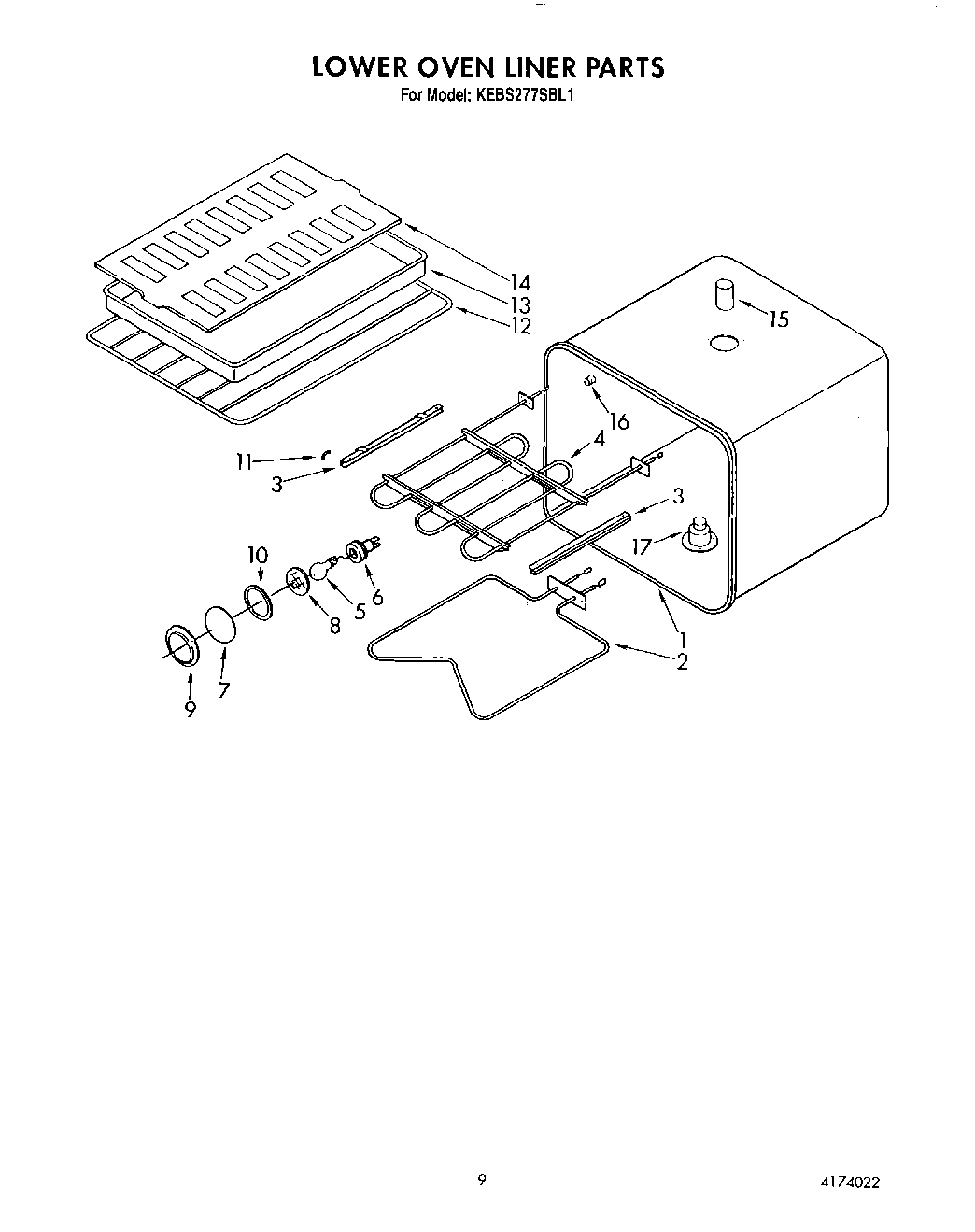

KEBS277SWH0 08 – LOWER OVEN LINER

Products

Position	Product
1	Liner, Oven
2	WP3177420 Whirlpool Bake Element
3	Broiler Element Support-Right
3	Broiler Element Support-Left
4	Element, Broil
5	RANGE ONLY 40W 120V APPL BULB
6	Socket, Lamp
7	Light Shield
8	Light Lens
9	Light Lens Retainer
10	Light Lens Gasket
11	Clip, Thermostat Bulb
12	Oven Rack
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
15	Vent Tube Lower Oven
16	Cover, Cap Tube
17	Smoke Eliminator (Upper Oven)
