KEBS277SWH0 09 – SINGLE/UPPER OVEN LINER

KEBS277SWH0 09 – SINGLE/UPPER OVEN LINER

Written by

in

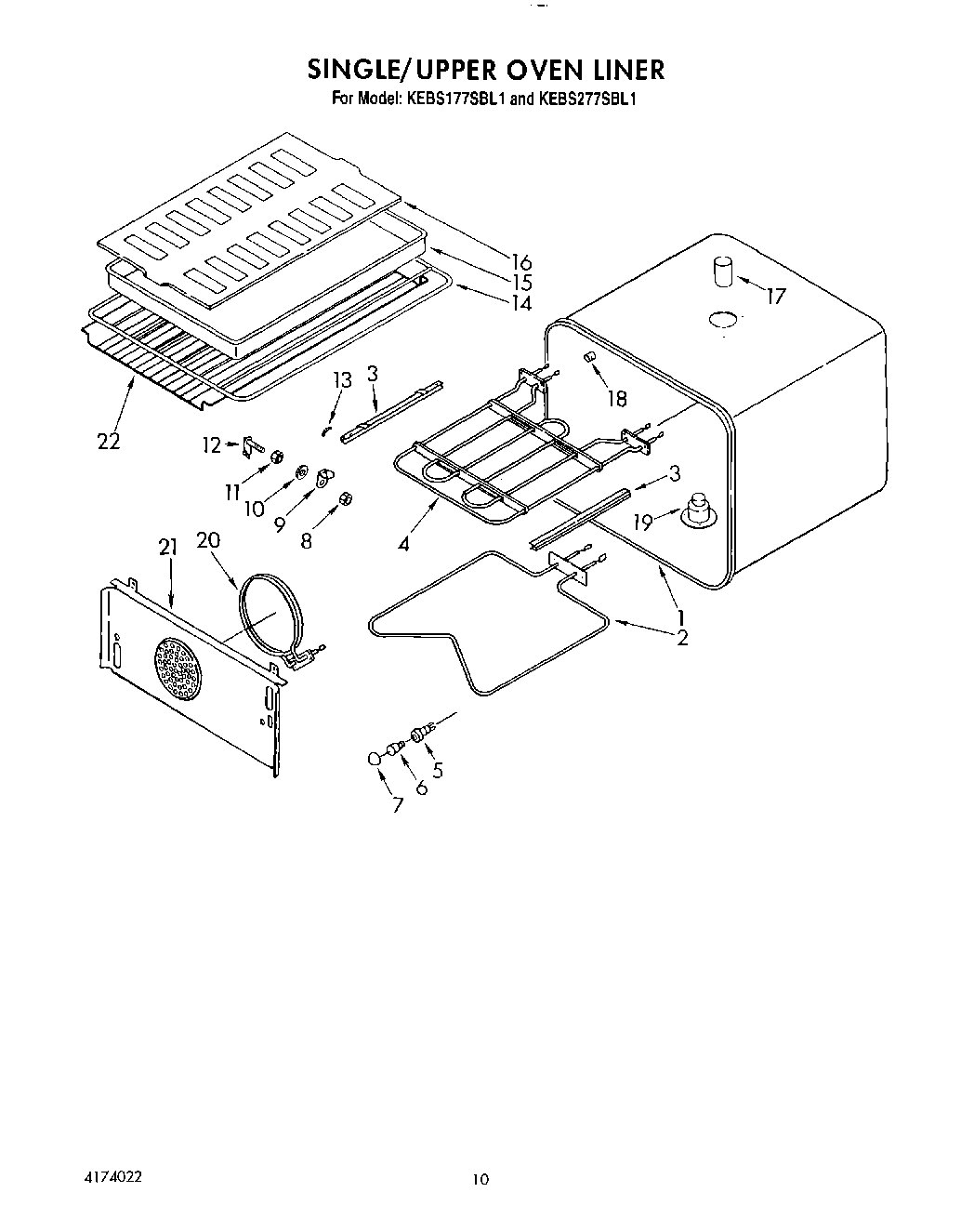

KEBS277SWH0 09 – SINGLE/UPPER OVEN LINER

Products

PositionProduct
1Oven Liner Upper Oven
2WP3177420 Whirlpool Bake Element
3Broiler Element Support-Left
3Broiler Element Support-Right
4Broiler Element
5Base, Lamp
6WP4173175 Whirlpool Light Bulb
7Lens, Lamp
8Lock-Nut, Cvr.Jack
9Jack Cover
10Washer
11Nut, Hex Jam (2)
12Receptacle, Lighted Probe
13Clip, Thermostat Bulb
14Oven Rack
154396923 Whirlpool Broil Pan Set Gray Porcelain
17Vent Tube Extension
18Cover, Cap Tube
19Smoke Eliminator (Upper Oven)
20Element, Convection
21Cover, Fan
22Meat Probe
22Gasket, Meat Probe
22Oven Rack, Offset
