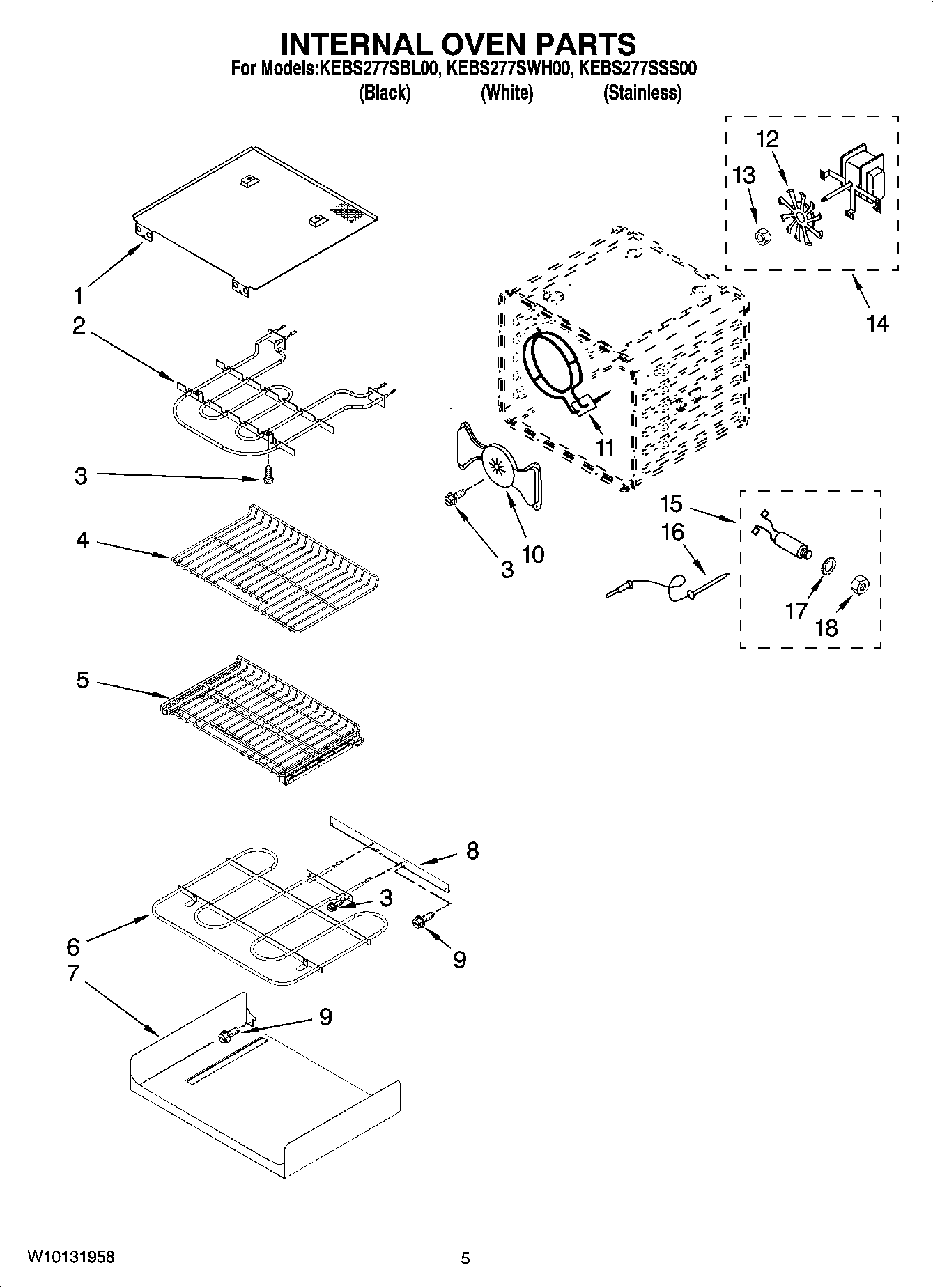

KEBS277SWH00 04 – INTERNAL OVEN PARTS

Products

Position	Product
1	WP8304602 Whirlpool Heat Shield Assembly
2	ELMNT-BROL
3	WP4449154 Whirlpool Screw
4	Rack, Oven
5	Oven Rack (Sliding)
6	ELMNT-BAKE
7	Tray, Hidden Bake
8	4450039 Whirlpool Oven Access Cover
9	WP4449809 Whirlpool Screw
10	Cover, Fan
11	WP9760769 Whirlpool Element Assembly
12	WP4452226 Whirlpool Convection Fan
13	Nut
14	Motor Convection
15	8186589 Whirlpool Jack Probe
16	WP9755542 Whirlpool Oven Meat Probe
17	WP9755547 Whirlpool Lockwasher
18	WP9755546 Whirlpool Locknut
