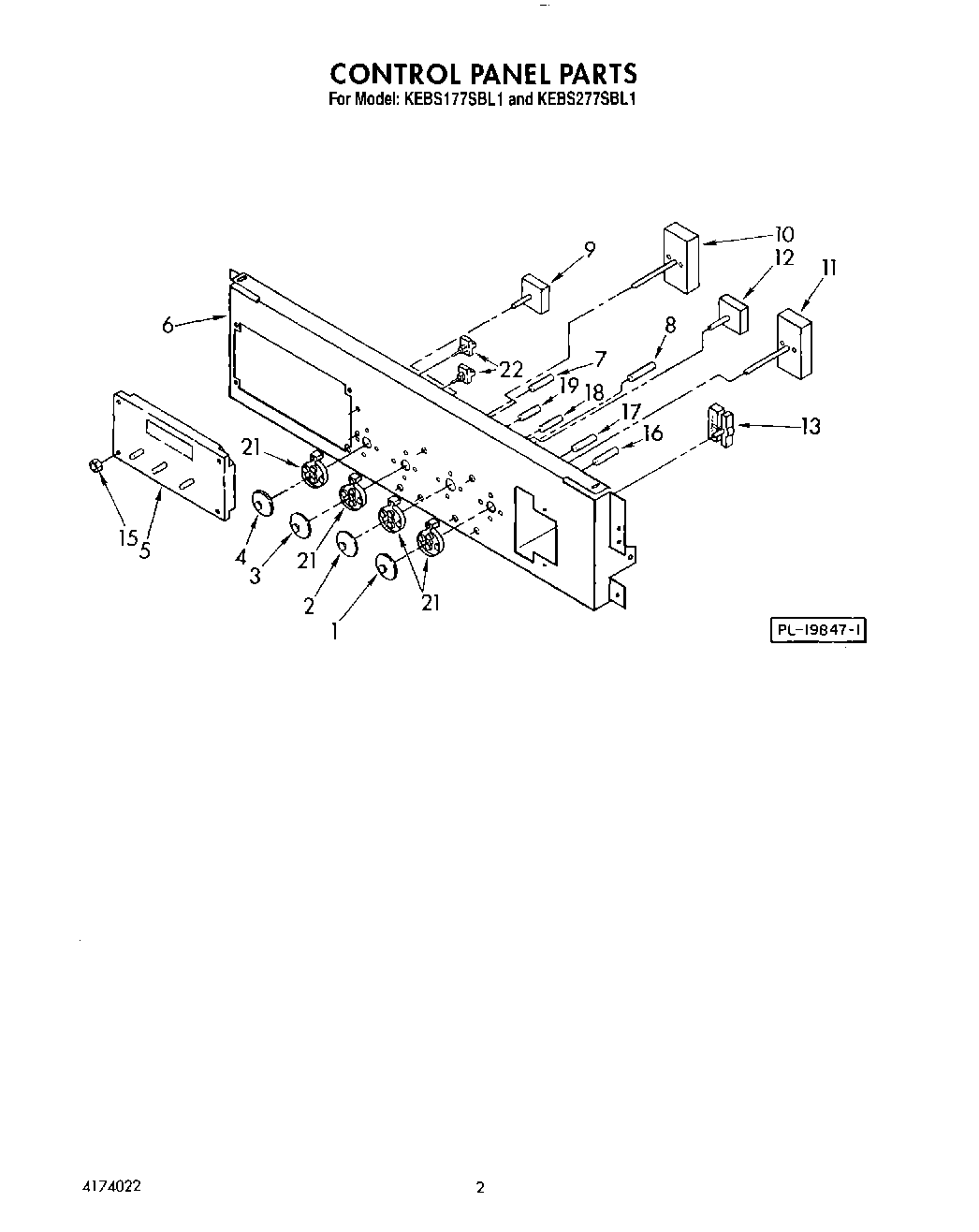

KEBS277SWH1 02 – CONTROL PANEL

Products

Position	Product
2	Selector Disc Lower Oven
3	Thermostat Disc Upper Oven
4	Selector Disc Upper Oven
5	Clock
6	Mounting Panel
8	Indicator Light,
9	Selector Switch Upper Oven
10	Thermostat, Upper Oven
11	Thermostat
12	Selector Switch
13	Meat Probe Indicator Assy.
15	Nut, Timer (4)
19	Indicator Light (2)
21	Back Light Housing
22	Wiring Harness High Temp
22	Wiring Harness High Temp KEBS177
22	Wiring Harness Low Temp KEBS177
22	Switch, Heat
22	Wiring Harness Low Temp
