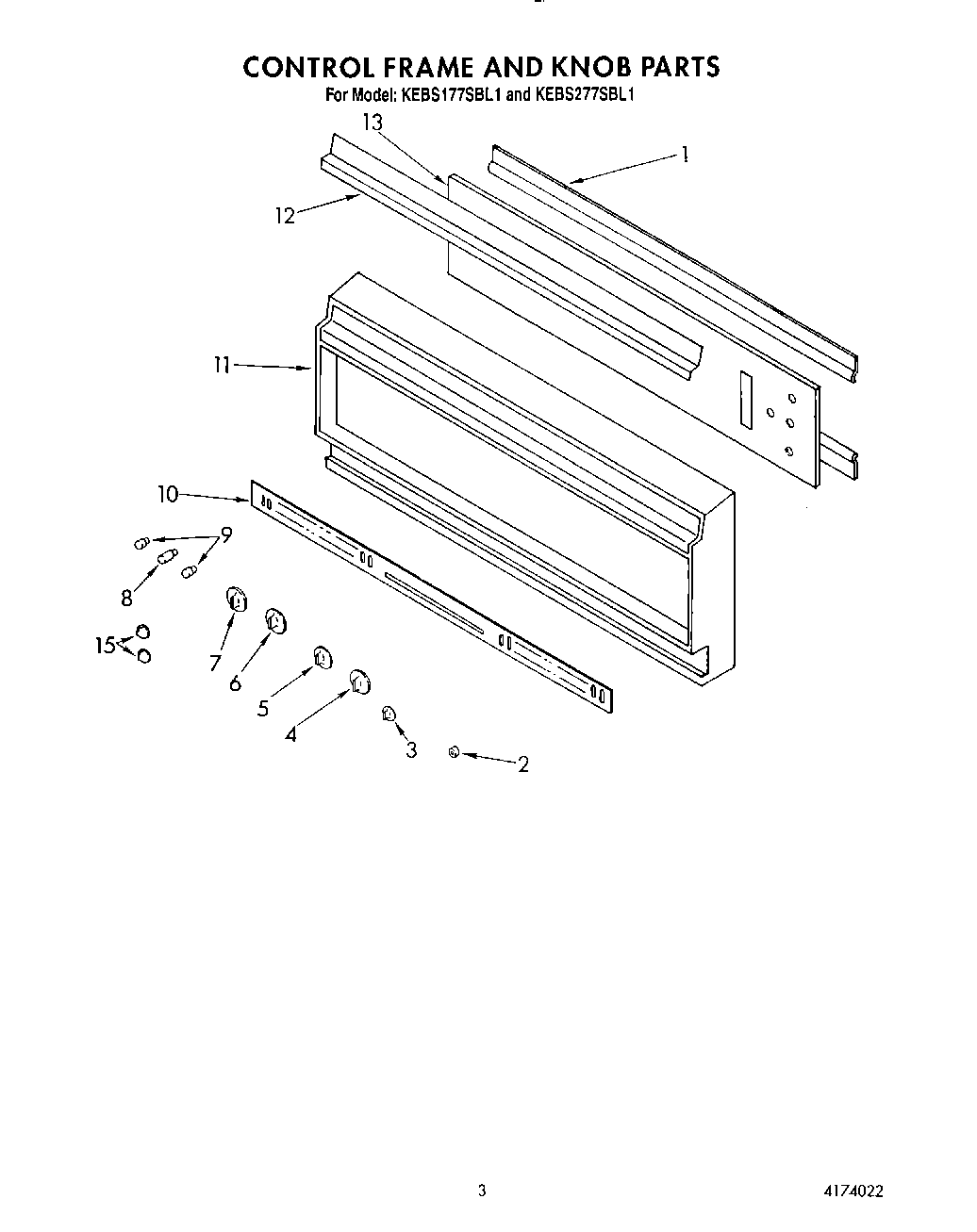

KEBS277SWH1 03 – CONTROL FRAME AND KNOBadmin2025-04-26T10:31:30+00:00KEBS277SWH1 03 – CONTROL FRAME AND KNOB
Products
| Position | Product |
|---|
| 1 | Retainer |
| 2 | Bezel, Oven Light Switch (Model KEBS145SBL1) |
| 3 | Knob |
| 7 | WP4168403 Whirlpool Knob |
| 8 | Knob, Clock |
| 9 | Knob, Clock (2) |
| 10 | Vent Insert (Almond - White) |
| 10 | Vent Insert (Black) |
| 11 | Frame, Control (Almond) |
| 11 | Frame, Control (White) |
| 11 | Control Frame |
| 12 | Insert, Top (Black) |
| 12 | Insert, Top (White) |
| 12 | Insert, Top (Almond) |
| 13 | Panel, Glass (White KEBS277) |
| 13 | Glass, Control Panel (Black) |
| 13 | Panel, Glass (Almond KEBS277) |
| 13 | Panel, Glass (White KEBS177) |
| 13 | Panel, Glass (Almond KEBS177) |
| 13 | Panel, Glass (Black KEBS177) |
| 15 | Knob, (2) Retained Heat |
