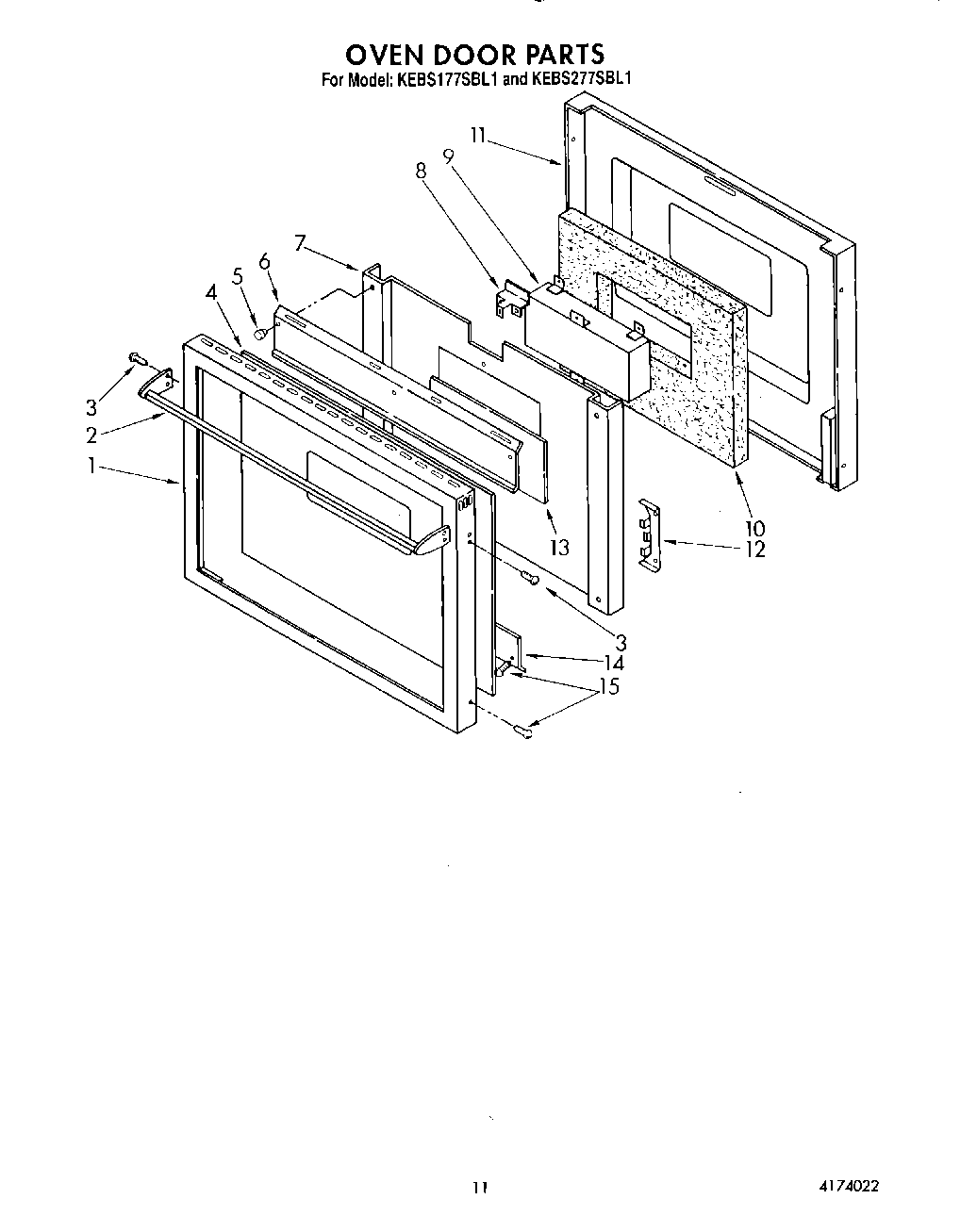

KEBS277SWH1 10 – OVEN DOOR, LIT/OPTIONALadmin2025-04-26T10:29:31+00:00KEBS277SWH1 10 – OVEN DOOR, LIT/OPTIONAL
Products
| Position | Product |
|---|
| 1 | Almond |
| 1 | White |
| 1 | Door Frame |
| 2 | Door Handle (Almond) |
| 2 | Door Handle (White) |
| 2 | Door Handle |
| 3 | Screw, 8-32 X 3/8`` PFHMS |
| 4 | Glass, Door (White) |
| 4 | Glass, Door (Almond) |
| 4 | Door Glass |
| 5 | Rubber Bumper |
| 6 | Air Baffle |
| 7 | Retainer, Insulation |
| 8 | Bracket, Lock |
| 9 | Window Package |
| 10 | Insulation |
| 11 | Door Liner |
| 12 | Bracket, Glass Mtg. |
| 13 | Glass, Reflective |
| 14 | Air Baffle, Bottom |
| 15 | List, Repair Parts |
| 15 | Use & Care Guide |
| 15 | Installation Instructions |
| 15 | Vent, Lower Trim (Screw (2)) |
| 15 | Instructions, Installation (Trim Kit) |
