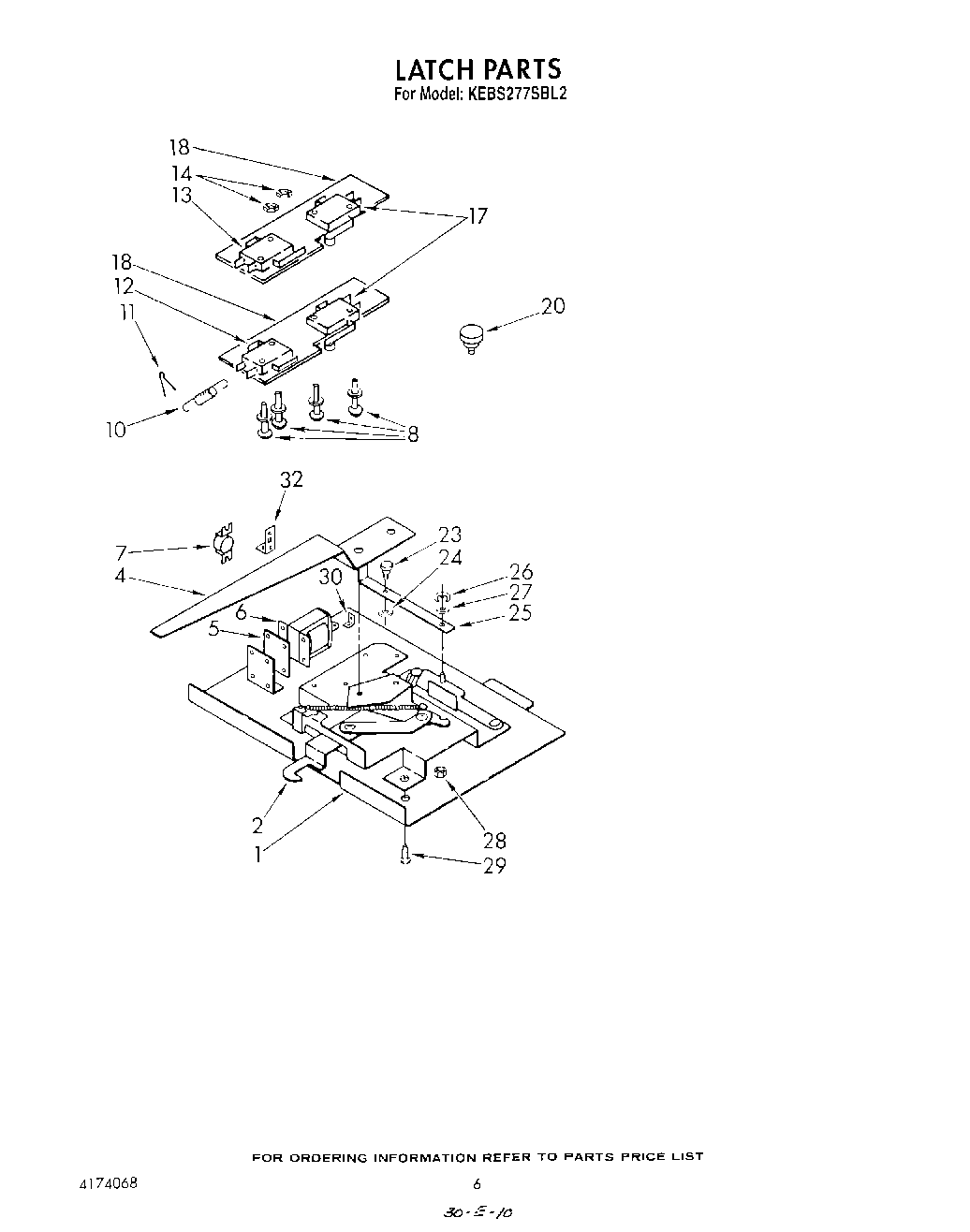

KEBS277SWH2 05 – LATCH

Products

Position	Product
1	Plate, Latch
2	Mechanism, Latch
4	Latch Lever (Lower Oven)
4	lever, latch
5	Solenoid Plate
6	Solenoid
7	Thermal Switch (Upper)
7	Thermal Switch
8	Screw, No.4-40 X 1 1/4“ Hex
10	Solenoid Spring
11	Cotter Pin
12	Latch Switch With Roller
13	Latch Switch
14	Nut (2)
17	Latch Switch (2)
18	Insulator (2)
20	Shoulder Screw Latch Lever Upper Oven
23	Shoulder Screw, Actuator Arm
24	Spacer, Actuator Arm
25	Actuator Arm
26	Retaining Ring
27	Washer, Flat
28	Nut, No.10-24 Hex Kep
29	Screw, No.10-24 X 3/8“ PTHMS
30	Bracket, Harness
32	Mounting Bracket, Safety Switch
32	Harness, Lower Latch
32	Harness, Upper Latch
32	Insulator Sleeve, Safety Switch
