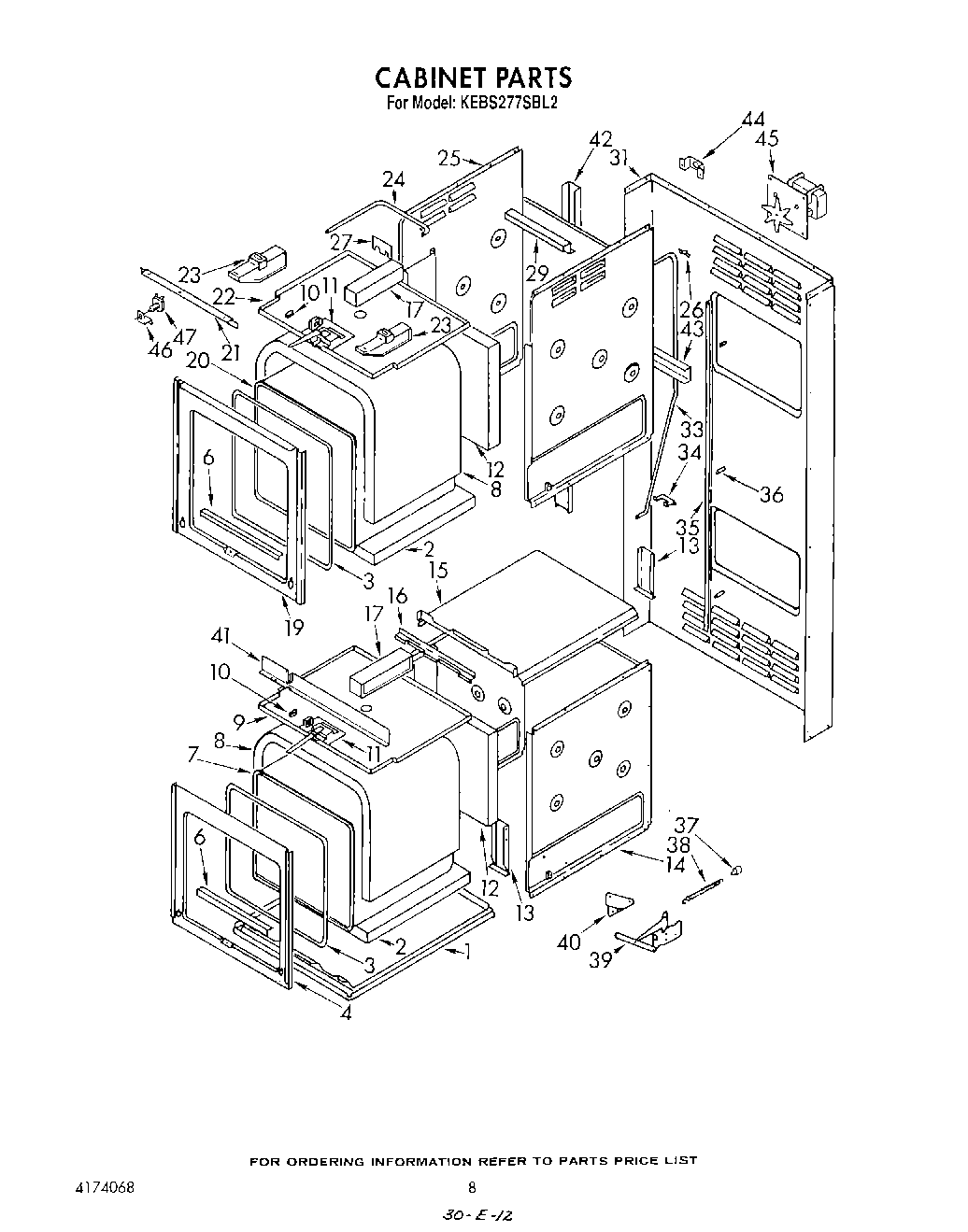

| 1 | Main Bottom |
| 2 | Insulation, Bottom |
| 3 | Door Gasket |
| 4 | Front Frame, Lower Oven |
| 6 | Cover, Seal End |
| 7 | Oven Liner (See Parts Page For Breakdown) |
| 8 | Insulation, Top and Sides |
| 10 | Knob, Latch Lever |
| 11 | Latch Assembly (See Page For Further Breakdown) |
| 12 | Insulation, Rear |
| 13 | Rear Anchor |
| 14 | Cabinet Side Lower |
| 15 | Upper Oven Support (KEBS276SBL1) |
| 16 | Front Frame Support |
| 17 | Collector Box |
| 19 | Front Frame (Upper Oven) (KEBS276SBL1) |
| 20 | Oven Liners (See Parts Page for Further Breakdown) |
| 21 | Control Frame Support |
| 22 | Compartment Top |
| 23 | Vent Box |
| 24 | Vent Tube (Upper Oven) |
| 25 | Cabinet Side, Upper Oven |
| 26 | Clamp, Conduit |
| 27 | Vent Tube Mounting Bracket |
| 29 | Air Baffle Channel |
| 31 | Cabinet Back |
| 33 | Vent Tube Lower Oven |
| 34 | Vent Tube, Retainer |
| 35 | Cabinet Support (Left) |
| 35 | Cabinet Support (Right) |
| 35 | Plug Button (5/8`` Hole) |
| 36 | Spacer |
| 37 | Spring, Anchor |
| 38 | Door Spring (Self Cleaning Oven) |
| 39 | Hinge Assembly |
| 40 | Cam Plate (Left Left) |
| 40 | Cam Plate |
| 40 | Cam Plate (Right) |
| 41 | WPL 4173171 |
| 42 | Support Bracket |
| 43 | Bracket, Support |
| 44 | Retainer, Insulation |
| 45 | Convection Fan Assy. (See Page For Further Breakdown) |
| 46 | Bracket, Oven Light Switch |
| 47 | WPL 4173029 |
| 47 | WPL 4173028 |
| 47 | WPL 4173030 |
| 47 | Air Du |
| 47 | Screw (2) |
| 47 | Air Duct (Upper Oven) (Left) |
| 47 | Air Duct (Upper Oven) (Right) |
| 47 | Air Duct (Upper Oven) (Left Air Duct (Lower Oven)) |
| 47 | Plate, Cover |
| 47 | Probe Cover |
| 47 | Oven Light Switch |
| 47 | WPL 4173017 |
| 47 | WPL 4173016 |
| 47 | WPL 4173031 |
