KEBS277SWH2 10 – OVEN DOOR , LIT/OPTIONAL

KEBS277SWH2 10 – OVEN DOOR , LIT/OPTIONAL

Written by

in

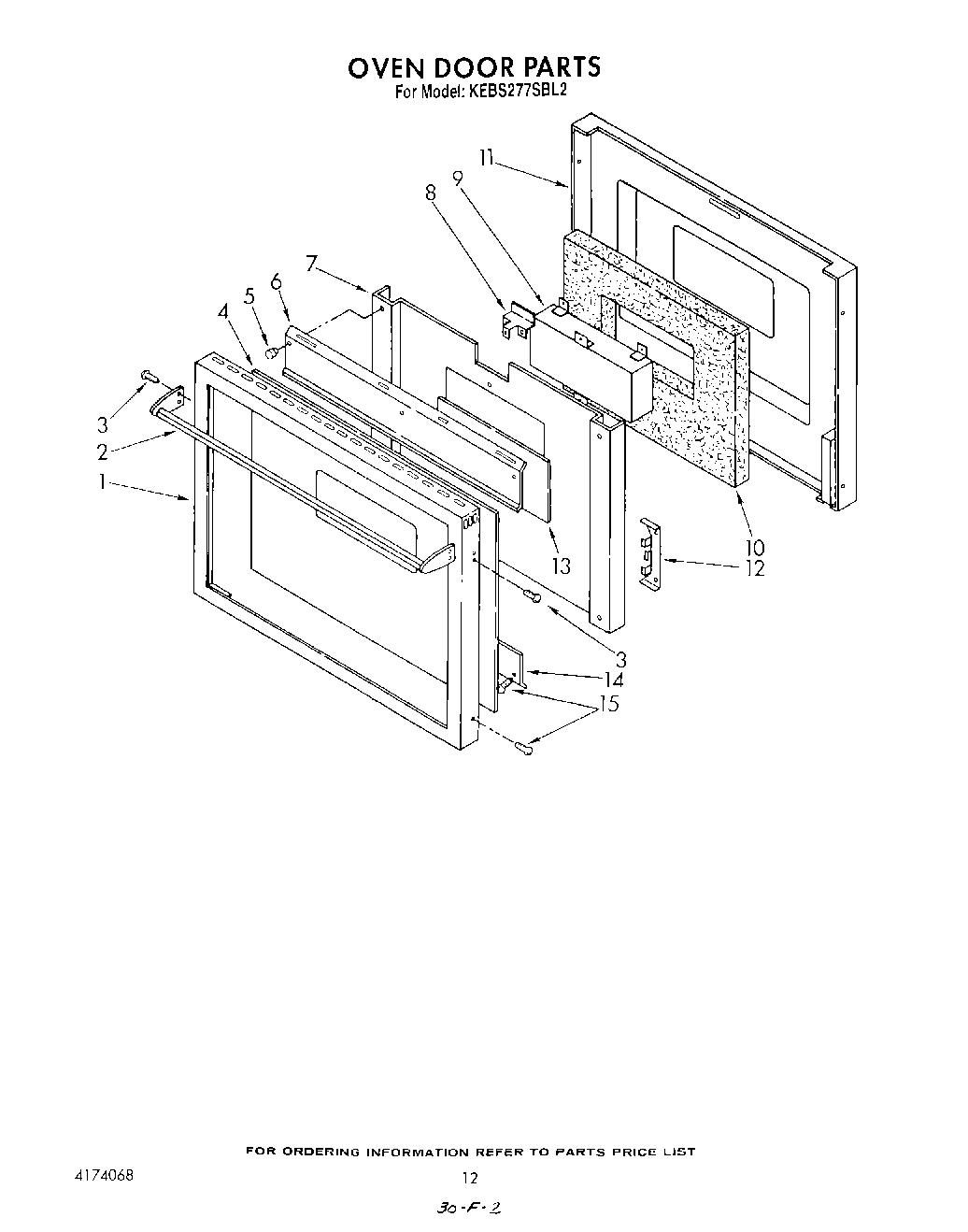

KEBS277SWH2 10 – OVEN DOOR , LIT/OPTIONAL

Products

PositionProduct
Repair Parts List
Installation Instructions
Installation Instructions, Trim Kit
Use & Care Guide
1Door Frame
1White
1Almond
2Door Handle (White)
2Door Handle
2Door Handle (Almond)
3Screw, 8-32 X 3/8“ PFHMS
4Glass, Door (Almond)
4Glass, Door (White)
4Door Glass
5Rubber Bumper
6Air Baffle
7Retainer, Insulation
8Bracket, Lock
9Window Package
10Insulation
11Door Liner
12Bracket, Glass Mounting
13Glass, Reflective
14Air Baffle, Bottom
15Vent, Lower Trim (Screw (2))
