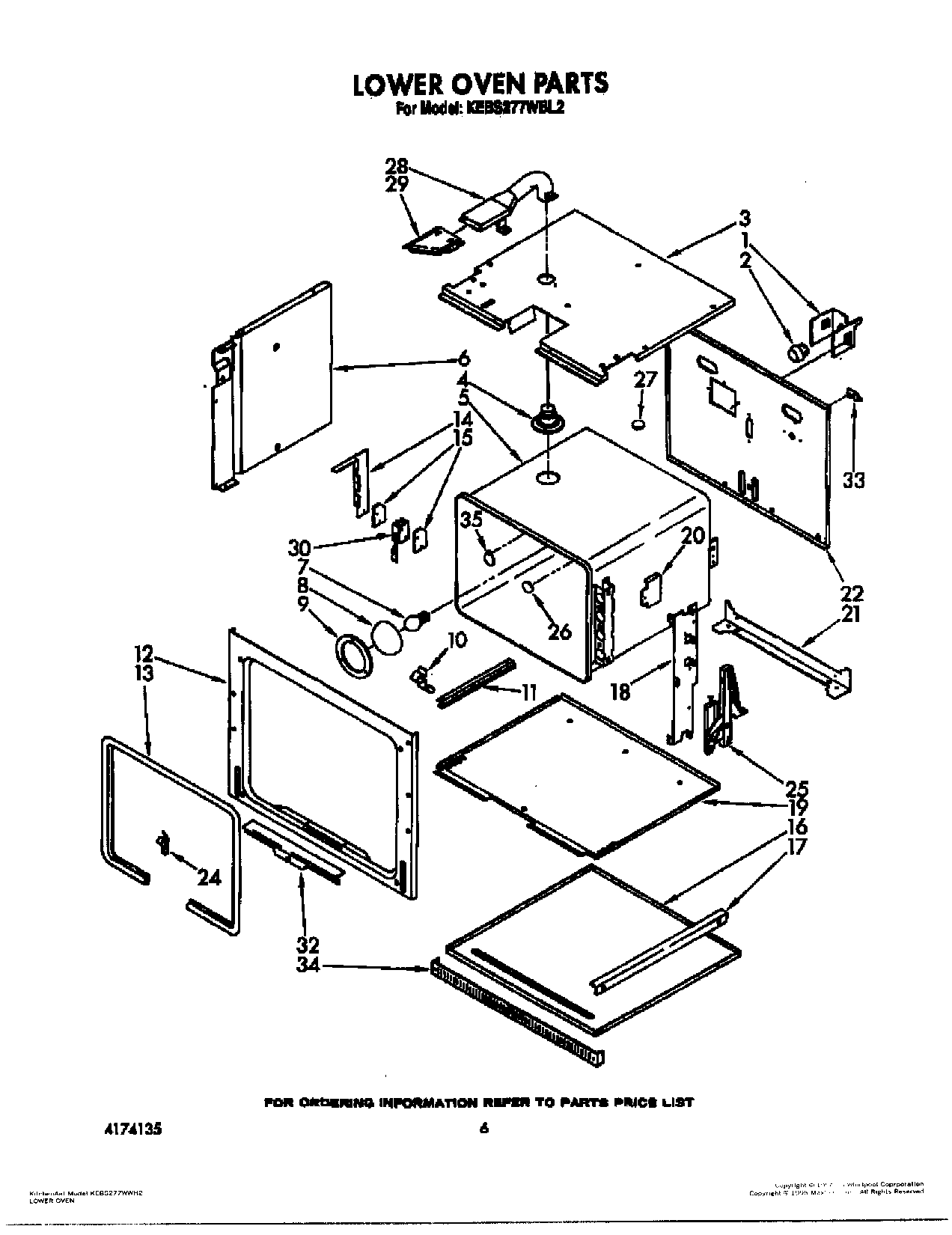

KEBS277WAL2 05 – LOWER OVEN, OPTIONAL

Products

Position	Product
1	Housing, Light
2	Socket, Light
3	Top, Module
4	Smoke Eliminator (Upper Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	Light Lens
9	Retainer, Glass
10	98005642 Whirlpool Clip
11	Broiler Element Support-Right
11	Screw (3)
12	Frame, Front
13	Seal, Door
13	Screw (4)
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
15	Insulator, Switch
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (6)
26	Button, Plug
27	Button, Plug
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent
30	Switch, Door
30	Nut (2)
30	Screw (2)
32	SCREW
32	Retainer, Seal
33	Screw
33	Cover, Cap Tube
34	Vent, Lower Trim (White)
34	Vent, Lower Trim (Black)
35	Almond (Uncut)
35	WPL 786032
35	WPL 786020
35	72113 Whirlpool Touch-Up Paint
35	WPL 591014
35	WPL 350806
35	1
35	Wire (14 Ga. 200 c Brown)
35	Golden Harvest
35	Leveler (Thinner)
35	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
35	18 Ga. 80~c Rating (Red)
35	Shoulder Screw
35	350930 Whirlpool White Spray Paint
35	Insulation, Back
35	350956 Whirlpool Spray Assembly
35	261900 Whirlpool Microwave Spray
35	Plate, Cover
35	72017 Whirlpool Appliance Touch-Up Paint White
35	799344 Whirlpool Refrigerator Paint
35	WP72107 Whirlpool Touchup
35	Wire (12 Ga. 150 c Black)
35	Wire (14 Ga. 150 c Yellow)
35	Platinum (Uncut)
35	WPL 72112
35	350942 Whirlpool Spray Paint
35	WPL 799832
35	Wire, 25` Roll (Black 14 Ga.)
35	Wire, 25` Roll (Red 14 Ga.)
35	Wire, 25“ Roll (White 14 GA.)
35	285006 Whirlpool Spray
35	72032 Whirlpool Touch Up Paint Black
35	Enamal, Toast (1 Qt. Uncut)
35	Insulation, Oven
35	Wire (14 Ga. 150 c Orange)
35	Wire (14 Ga. 150 c Green)
35	Golden Harvest (Uncut)
35	Wire (14 Ga. 150 c Brown)
35	Wire (14 Ga. 150 c Blue)
35	Toast
35	WP261869 Whirlpool Microwave Paint
35	242831 Whirlpool Oven Wire
35	Paint, Spray (13 Oz.) (Platinum)
35	WP482338 Whirlpool Refrigerator Adhesive
