KEBS277WAL3 02 – CONTROL PANEL, LIT/OPTIONAL

Products

Position	Product
	WPL LIT4174144
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPL LIT3178195
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	WPL LIT3177060
	WPL LIT3178199
	WPL 832985
	WPL 591014
	WPL 350806
	1
	Wire (14 Ga. 200 c Brown)
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	72017 Whirlpool Appliance Touch-Up Paint White
	350942 Whirlpool Spray Paint
	Golden Harvest (Uncut)
	350930 Whirlpool White Spray Paint
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	350956 Whirlpool Spray Assembly
	Golden Harvest
	Wire, 25` Roll (Black 14 Ga.)
	799344 Whirlpool Refrigerator Paint
	WPL 799832
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	72113 Whirlpool Touch-Up Paint
	WPL 72112

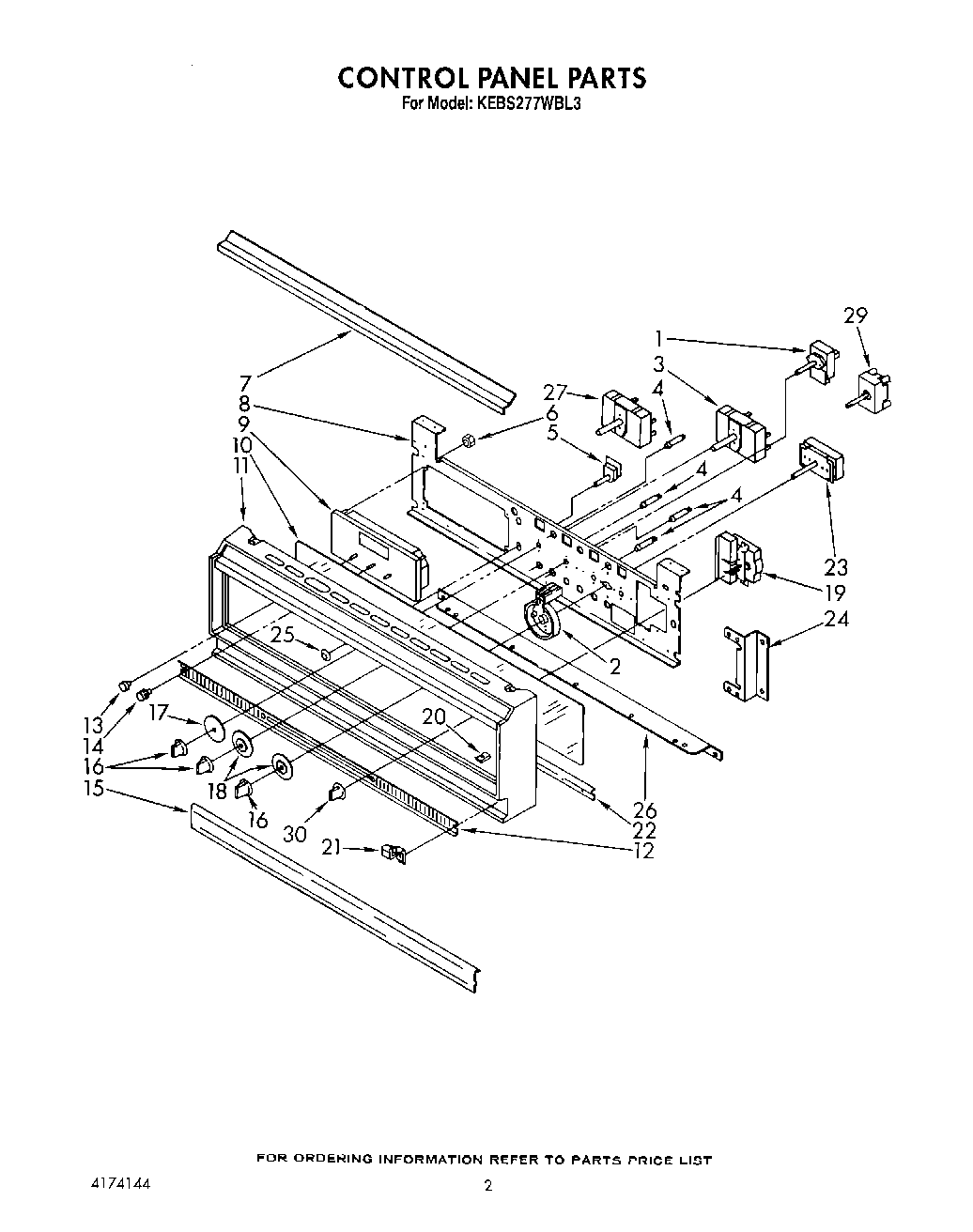

1	Thermostat, upper
2	Backlight (2)
3	Switch, Selector
4	Indicator Light, Oven (Lower Oven)
5	Switch, Oven Light
5	Switch, Oven Light (White)
6	Nut, Timer (4)
7	Insert, Top (White)
7	Insert, Top (Black)
7	Insert, Top (Almond)
8	Bracket, Control
9	Timer, Electronic
10	Glass, Control Panel (Almond)
10	Glass, Control Panel (White)
10	Glass, Control Panel (Black)
11	Frame, Control Panel (Almond)
11	Frame, Control Panel (Black)
11	Frame, Control Panel (White)
12	Insert, Vent
13	Knob, Clock
13	Knob, Timer (2)
14	Knob, Clock (2)
14	Knob, Timer
15	Screw (5)
15	Handle (Black)
15	White
15	Door, Latch Handle (Almond)
16	Knob, Control
17	Disc, Selector (Upper)
17	Disc, Selector (Lower)
18	Disc, Thermostat (Self Clean) (2)
19	Meat Probe Indicator Assy.
20	nut (3)
21	Door, Latch Handle (Screw (2))
21	Hinge, Door (2)
22	Screw (6)
22	Retainer
23	Thermostat, Upper
24	Bracket, Control Panel
25	Bezel, Oven Light Switch
25	Bezel, Switch (White)
26	Support, Frame
26	WP3177991 Whirlpool Screw
27	Screw,
27	WP486579 Whirlpool Air Conditioner Screw
27	Switch, Selector
29	Switch, Rotory
30	Knob
30	Clip, Spacer
