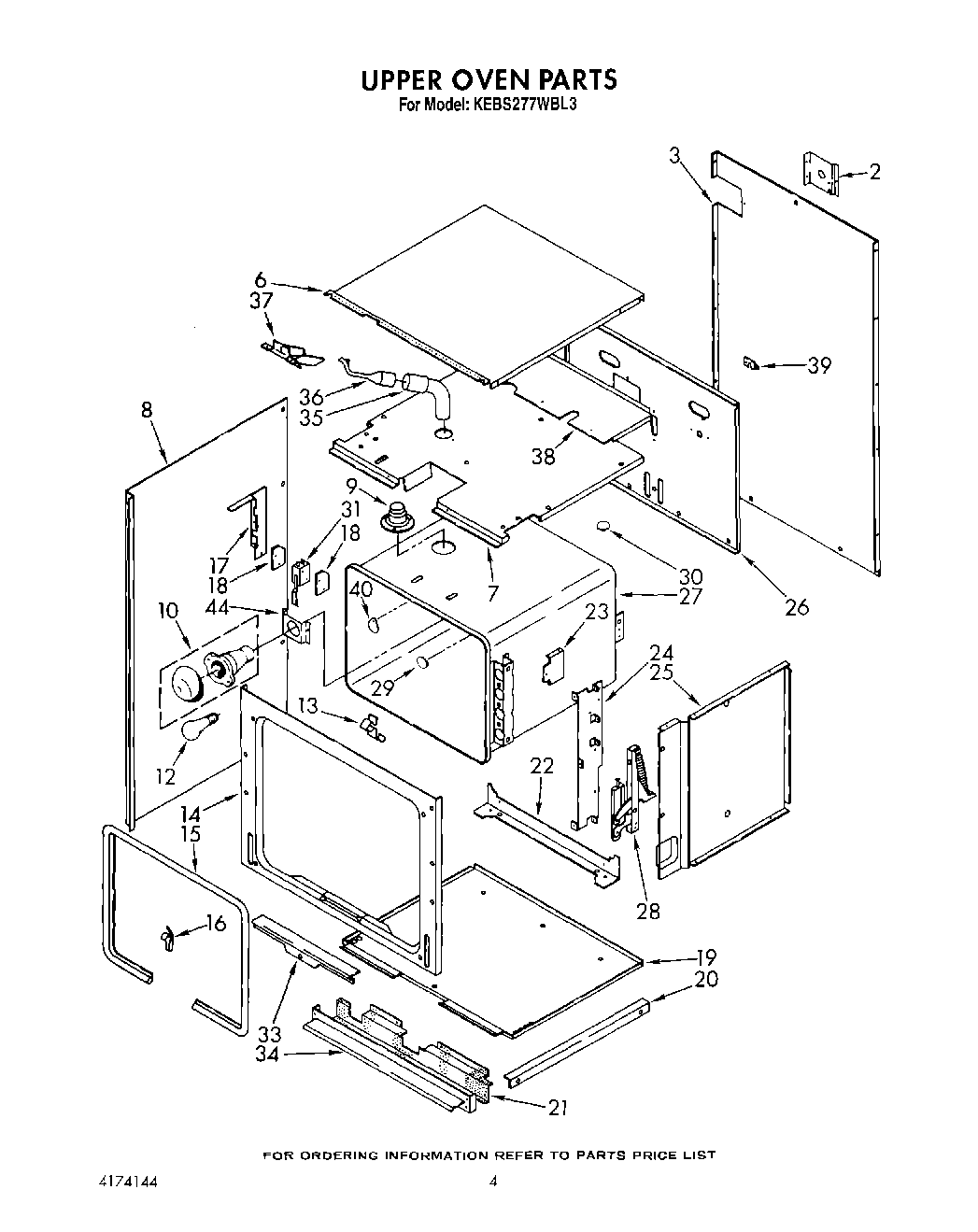

KEBS277WAL3 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Tube, Vent
9	Screw (3)
10	W11594027 Whirlpool Range Oven Light Socket
12	RANGE ONLY 40W 120V APPL BULB
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Screw, 8-18 X 3/4 (4)
21	Screen, Wire Mesh
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven
28	Hinge, Door
28	Screw (6)
29	Button, Plug
30	Button, Plug
31	Screw (2)
31	Nut (2)
31	Switch, Door
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (Black Model)
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Screw
39	Cover, Cap Tube
40	Plate, Cover
40	Shoulder Screw
44	WP90767 Whirlpool Screw
44	Insulation, Back
44	Insulation, Oven
44	Retainer, Insulation
