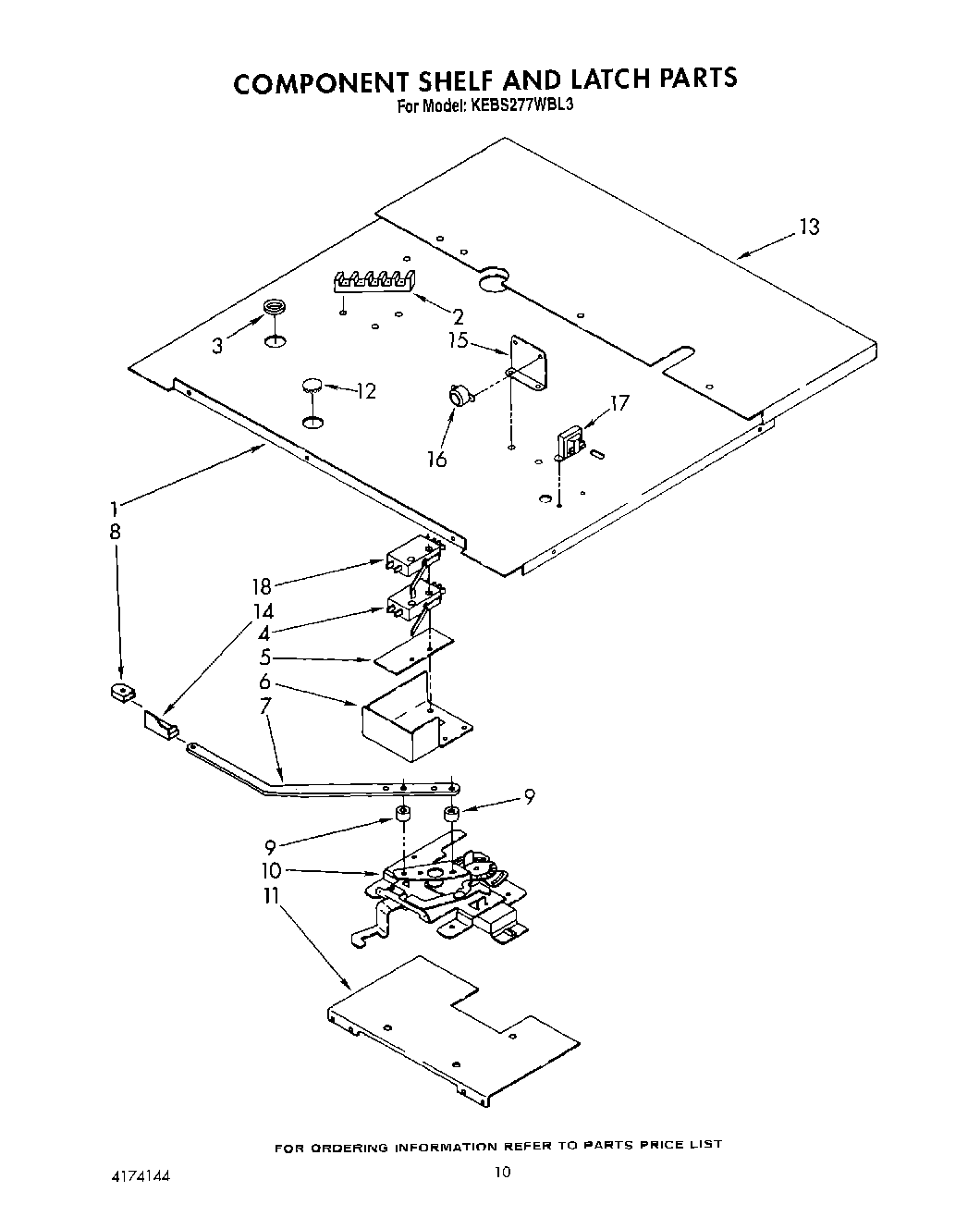

KEBS277WAL3 08 – COMPONENT SHELF AND LATCH

Products

Position	Product
1	Shelf, Component
2	WP8203546 Whirlpool Terminal Block
3	Bushing
4	Switch, Latch
4	Screw
5	Insulator, Switch
6	Guard, Latch
7	Handle, Latch
7	Handle, Latch
7	Handle, Latch (Screw (2))
7	WP90767 Whirlpool Screw
8	Knob, Latch Handle
9	Spacer, Handle (2)
9	Screw (2)
10	Latch, Mechanism
11	Plate, Mounting
12	Plug, Button
13	Extension, Shelf
14	WP488234 Whirlpool Air Conditioner Screw
14	Support, Latch
15	Bracket, Buzzer
15	Screw
16	W10841059 Whirlpool Screw
16	Buzzer, Meat Probe
16	Screw,
17	Transformer
17	WP3177991 Whirlpool Screw
18	Screw (2)
18	Switch, Latch
