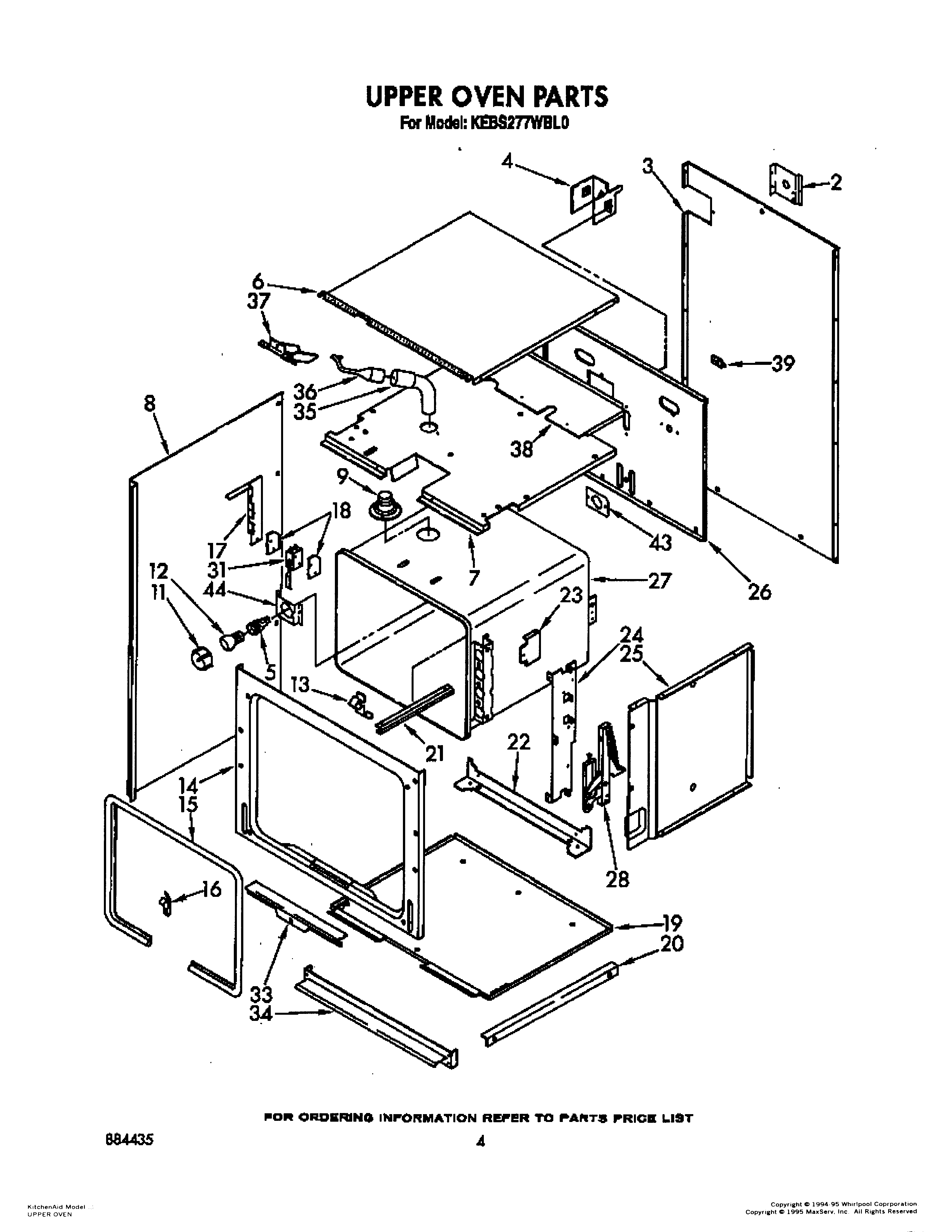

KEBS277WBL0 03 – UPPER OVEN

Products

Position	Product
2	Bracket, Conduit
3	Cabinet, Back
4	Housing, Light
5	Base, Lamp
6	Cabinet, Top
7	Top, Module
8	Side, Cabinet (R.H. & L.H.)
8	Side, Cabinet (Left Hand)
9	Smoke Eliminator (Upper Oven)
11	Lens, Lamp
12	WP4173175 Whirlpool Light Bulb
13	98005642 Whirlpool Clip
14	Frame, Front
15	Seal, Door
16	Clip, Oven Seal
17	Bracket, Switch
18	Insulator, Switch
19	Bottom, Modual
20	Rail, Support (2)
21	Broiler Element Support-Right
21	Retainer (2)
21	Screw (3)
22	Support, Oven
23	Shield, Radiation
24	Bracket, Hinge
25	Side, Module (R.H. & L.H.)
26	Back, Module
27	Liner, Oven (Convection)
28	Hinge, Door
28	Screw (4)
31	Nut (2)
31	Screw (2)
31	Switch, Door
33	SCREW
33	Retainer, Seal
34	Vent, Middle Trim (White or Almond Model)
34	Vent, Lower Trim (Screw (4))
34	Vent, Lower Trim (Screw (2))
34	Vent, Middle Trim (Black Model)
35	Vent, Tube (Upper, Female)
36	Vent, Tube (Upper, Male)
37	Shield, Vent
38	Extension, Shelf
38	WP3177991 Whirlpool Screw
39	Cover, Cap Tube
43	Plate, Mounti
43	Screw
44	Insulation, Back
44	Retainer, Insulation
44	Insulation, Oven
44	WP90767 Whirlpool Screw
