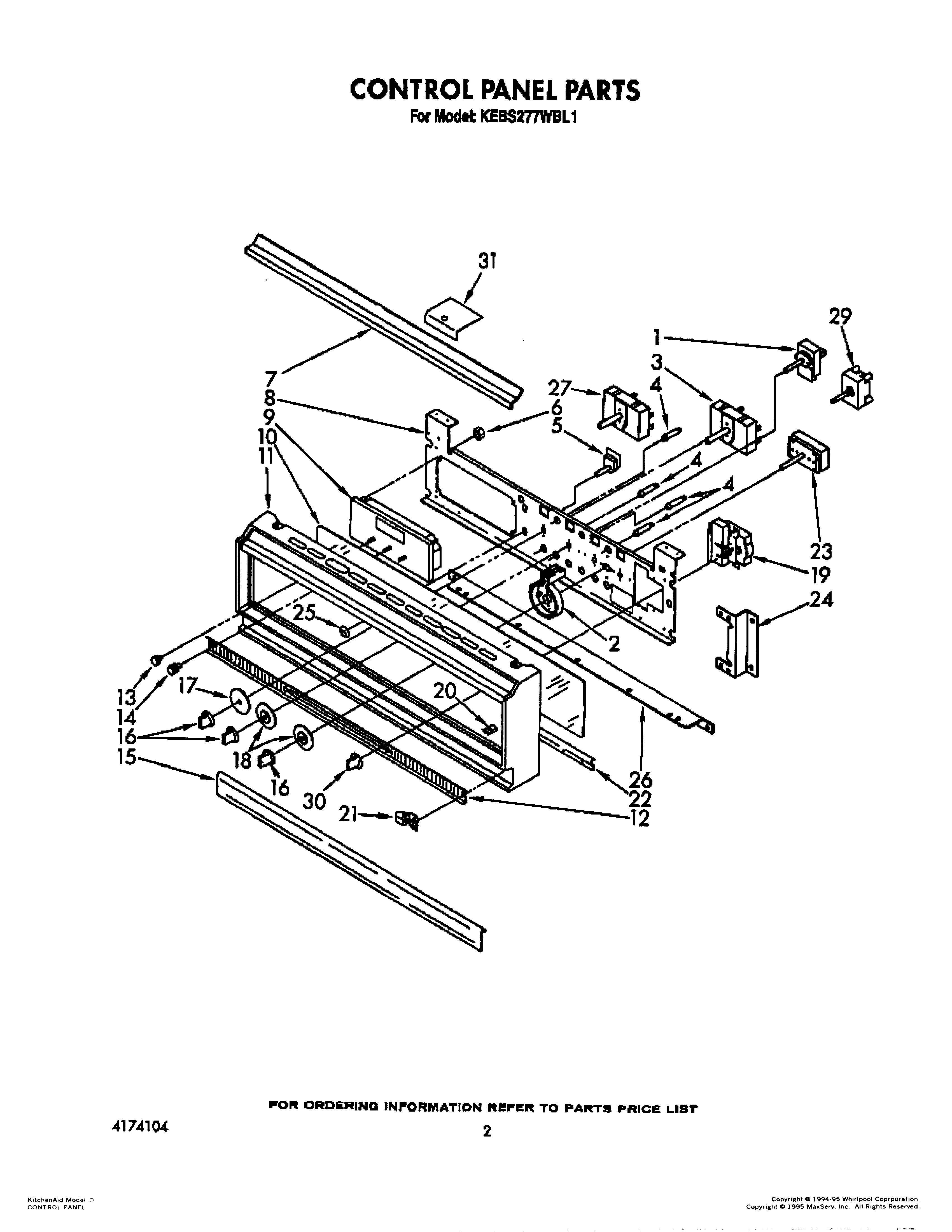

KEBS277WBL1 02 – CONTROL PANELadmin2025-04-26T10:31:36+00:00KEBS277WBL1 02 – CONTROL PANEL
Products
| Position | Product |
|---|
| WPL LIT3177060 |
| WPL LIT4174104 |
| WPL LIT3178195 |
| WPL LIT3178200 |
| 1 | Thermostat, upper |
| 2 | Backlight (2) |
| 3 | Switch, Selector |
| 4 | Indicator Light, Oven (Lower Oven) |
| 5 | Switch, Oven Light |
| 5 | Switch, Oven Light (White) |
| 6 | Nut, Timer (4) |
| 7 | Insert, Top (Almond) |
| 7 | Insert, Top (White) |
| 7 | Insert, Top (Black) |
| 8 | Bracket, Control |
| 9 | Clock |
| 10 | Glass, Control Panel (White) |
| 10 | Glass, Control Panel (Almond) |
| 10 | Glass, Control Panel (Black) |
| 11 | Frame, Control Panel |
| 11 | Frame, Control Panel (Almond) |
| 11 | Frame, Control Panel (White) |
| 12 | Insert, Vent |
| 13 | Knob, Clock |
| 13 | Knob, Timer (2) |
| 14 | Knob, Clock (2) |
| 14 | Knob, Timer |
| 15 | Door, Latch Handle (Almond) |
| 15 | Screw (5) |
| 15 | Handle (Black) |
| 15 | White |
| 16 | Knob, Control |
| 17 | Disc, Selector (Lower) |
| 17 | Disc, Selector (Upper) |
| 18 | Disc, Thermostat (Self Clean) (2) |
| 19 | Meat Probe Indicator Assy. |
| 20 | nut (3) |
| 21 | Hinge, Door (2) |
| 21 | Door, Latch Handle (Screw (2)) |
| 22 | Screw (6) |
| 22 | Retainer |
| 23 | Thermostat, Upper |
| 24 | Bracket, Control Panel |
| 25 | Bezel, Switch (White) |
| 25 | Bezel, Oven Light Switch |
| 26 | WP3177991 Whirlpool Screw |
| 26 | Support, Frame |
| 27 | Screw, |
| 27 | Switch, Selector |
| 27 | WP486579 Whirlpool Air Conditioner Screw |
| 29 | Switch, Rotory |
| 30 | Knob |
| 31 | Clip, Spacer |
| 31 | WP90767 Whirlpool Screw |
