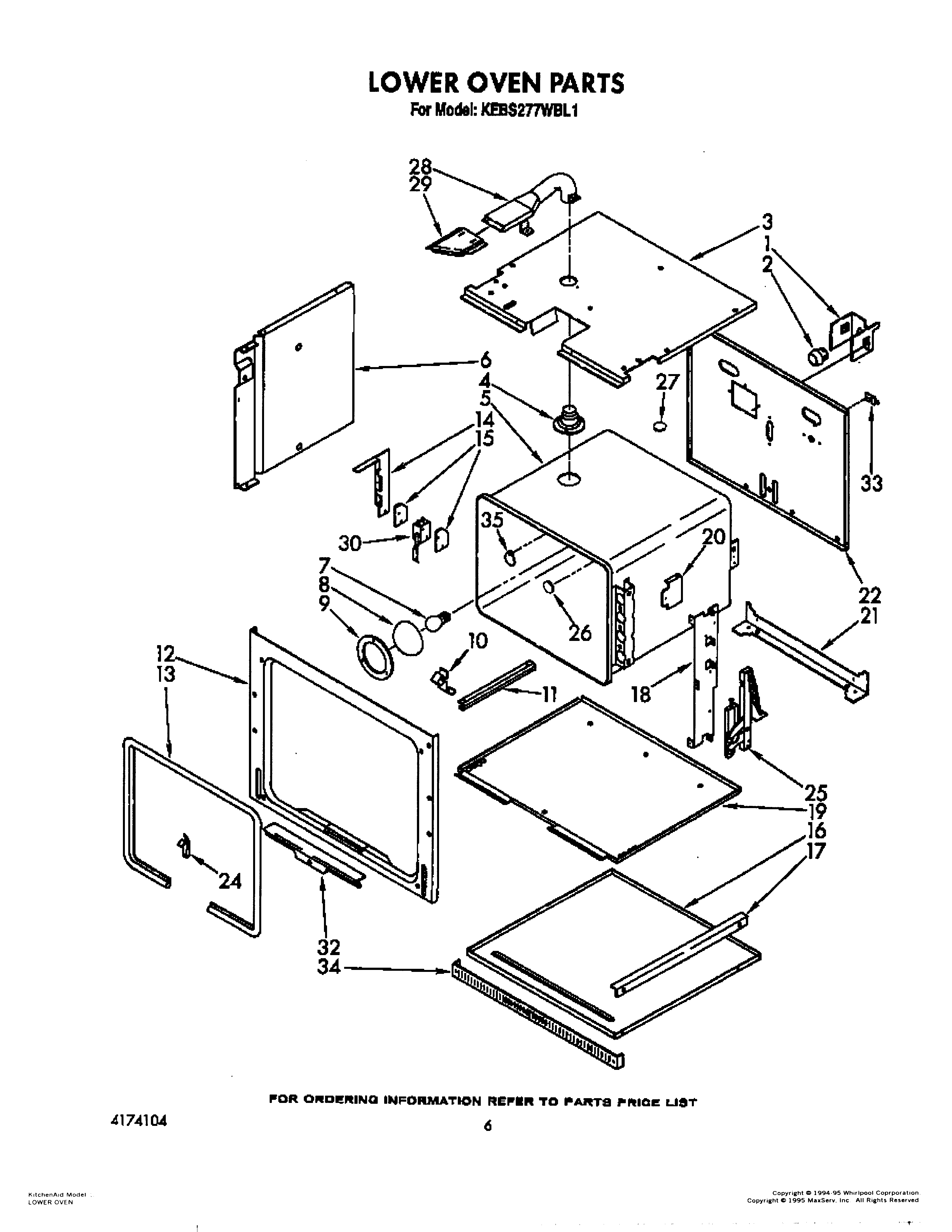

KEBS277WBL1 05 – LOWER OVEN

Products

Position	Product
1	Housing, Light
2	Socket, Light
3	Top, Module
4	Smoke Eliminator (Upper Oven)
5	Liner, Oven
6	Side, Module (R.H. & L.H.)
7	RANGE ONLY 40W 120V APPL BULB
8	Light Lens
9	Retainer, Glass
10	98005642 Whirlpool Clip
11	Broiler Element Support-Right
11	Screw (3)
12	Frame, Front
13	Seal, Door
14	Bracket, Switch
14	WP3177991 Whirlpool Screw
16	Bottom, Oven
17	Rail, Support (2)
18	Bracket, Hinge
19	Bottom, Modual
20	Shield, Radiation
21	Support, Oven
22	Back, Module
24	Clip, Oven Seal
25	Hinge, Door
25	Screw (6)
26	Button, Plug
27	Button, Plug
28	WP90767 Whirlpool Screw
28	Tube, Vent Male
29	Tube, Vent
30	Nut (2)
30	Switch, Door
30	Screw (2)
31	Insulator, Switch
32	SCREW
32	Screw (4)
32	Retainer, Seal
33	Cover, Cap Tube
33	Screw
34	Vent, Lower Trim (Black)
34	Vent, Lower Trim (White)
35	Insulation, Oven
35	Insulation, Back
35	Shoulder Screw
35	Plate, Cover
