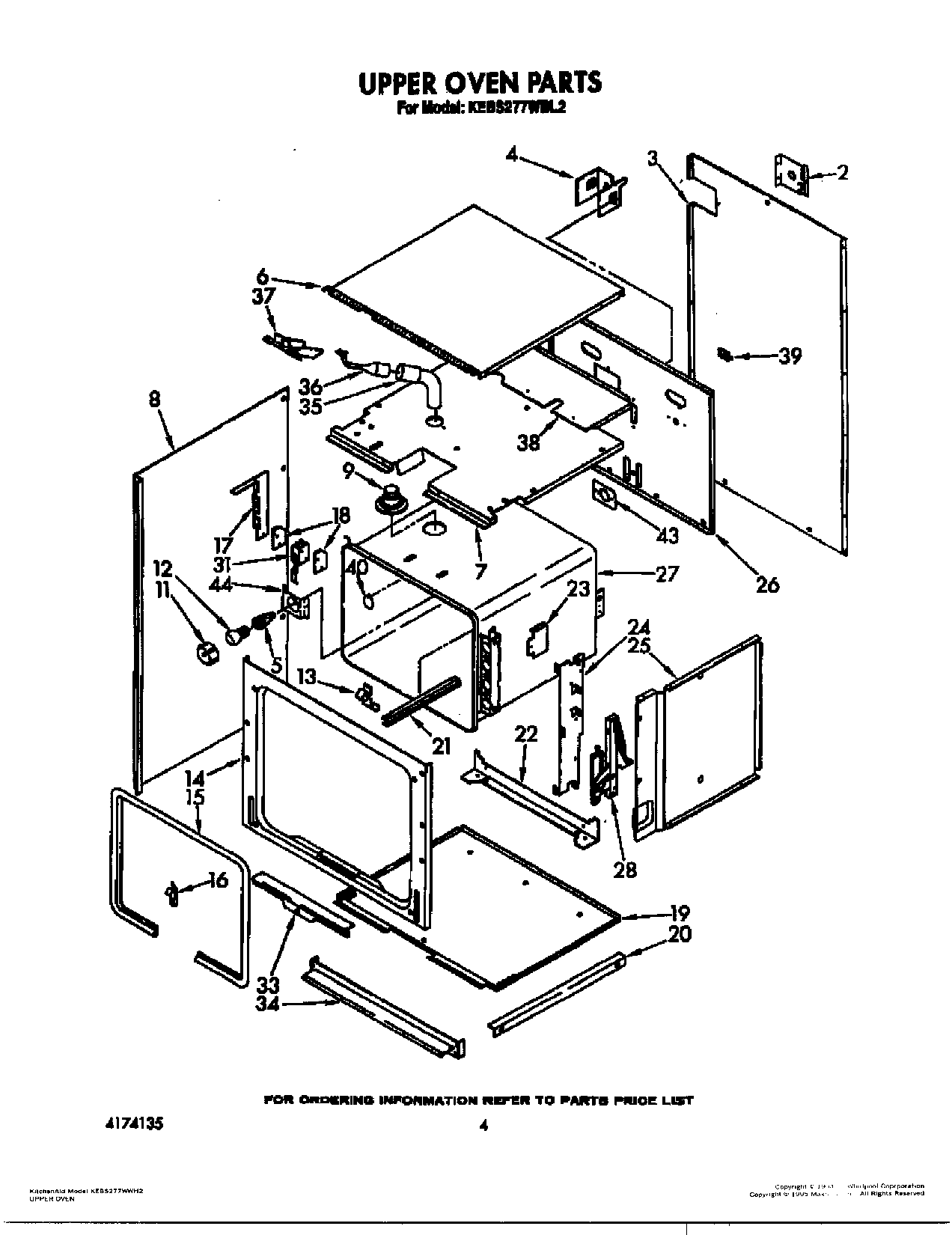

KEBS277WBL2 03 – UPPER OVENadmin2025-04-26T10:29:13+00:00KEBS277WBL2 03 – UPPER OVEN
Products
| Position | Product |
|---|
| 2 | Bracket, Conduit |
| 3 | Cabinet, Back |
| 4 | Housing, Light |
| 5 | Base, Lamp |
| 6 | Cabinet, Top |
| 7 | Top, Module |
| 8 | Side, Cabinet (R.H. & L.H.) |
| 8 | Side, Cabinet (Left Hand) |
| 9 | Smoke Eliminator (Upper Oven) |
| 10 | WP4173175 Whirlpool Light Bulb |
| 11 | Lens, Lamp |
| 13 | 98005642 Whirlpool Clip |
| 14 | Frame, Front |
| 15 | Seal, Door |
| 16 | Clip, Oven Seal |
| 17 | Bracket, Switch |
| 19 | Bottom, Modual |
| 20 | Rail, Support (2) |
| 21 | Broiler Element Support-Right |
| 21 | Retainer (2) |
| 21 | Screw (3) |
| 22 | Support, Oven |
| 23 | Shield, Radiation |
| 24 | Bracket, Hinge |
| 25 | Side, Module (R.H. & L.H.) |
| 26 | Back, Module |
| 27 | Liner, Oven |
| 28 | Screw (6) |
| 28 | Hinge, Door |
| 29 | Plug Button (5/8`` Hole) |
| 30 | Plug Button (3/8`` Hole) |
| 31 | Nut (2) |
| 31 | Switch, Door |
| 31 | Screw (2) |
| 32 | Insulator, Switch |
| 33 | Retainer, Seal |
| 33 | SCREW |
| 34 | Vent, Lower Trim (Screw (4)) |
| 34 | Vent, Middle Trim (Black Model) |
| 34 | Vent, Lower Trim (Screw (2)) |
| 34 | Vent, Middle Trim (White or Almond Model) |
| 35 | Vent, Tube (Upper, Female) |
| 36 | Vent, Tube (Upper, Male) |
| 37 | Shield, Vent |
| 38 | Extension, Shelf |
| 38 | WP3177991 Whirlpool Screw |
| 39 | Cover, Cap Tube |
| 40 | Shoulder Screw |
| 40 | Plate, Cover |
| 43 | Screw |
| 43 | Plate, Mounti |
| 44 | Insulation, Back |
| 44 | Retainer, Insulation |
| 44 | WP90767 Whirlpool Screw |
| 44 | Insulation, Oven |
